HVAC and Refrigeration
>
Cooling Fans and Accessories
>
Air Circulators

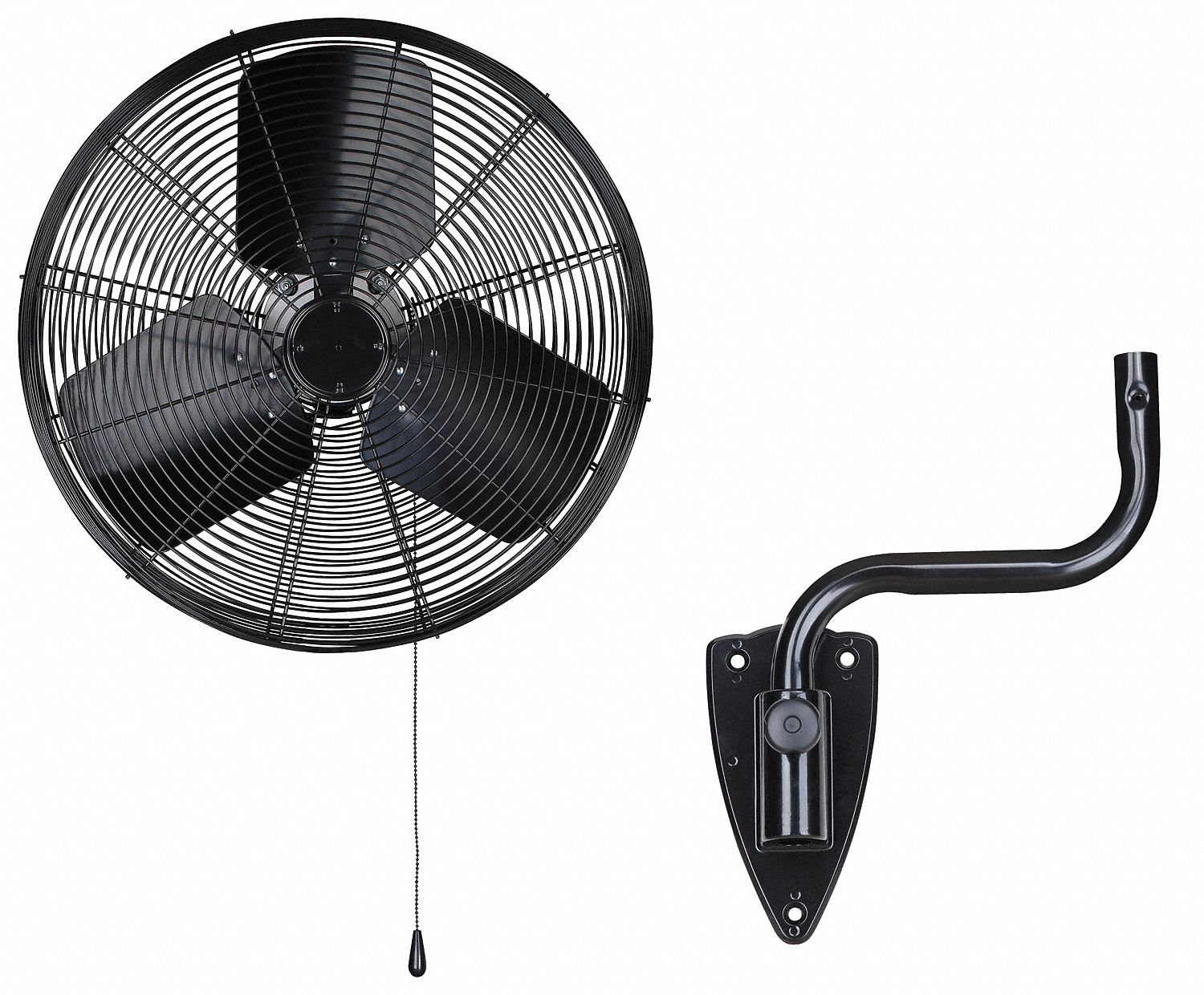

DAYTON Air Circulator, 18 In, 5700 cfm, 120V

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

Air Circulator, Blade Dia. 18 In., Stationary, Oscillating, Speeds 2, Voltage 120V, 1 Phase, CFM High 5700, CFM Low 4000, Air Velocity (FPM) @ 20 Ft. 272/230, Motor HP 1/5, Motor RPM 1101/1019, Operating Amps 1.83/1.27, Mounting Location Wall, Fan RPM 1101/1019, Commercial, Assembled UnassembledCFM/Watt 26.8/27Includes Wall Bracket and Safety Support Cable

Grainger Item #	13V401
Price (ea.)	$302.25
Brand	DAYTON
Mfr. Model #	13V401
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	33.0
Availability	Typically in Stock
Catalog Page No.	4443
Country of Origin (Country of Origin is subject to change.)	China
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Circulator
Blade Dia.		18"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Oscillating
Speeds		2
Voltage		120V
Phase		1
CFM High		5700
CFM Low		4000
Air Velocity (FPM) @ 20 Ft.		272/230
Motor HP		1/5
Motor RPM		1101/1019
Operating Amps		1.83/1.27
Mounting Location		Wall
Fan RPM		1101/1019
Environmental Applications		Commercial
Assembled		Unassembled
CFM/Watt		26.8/27
Air Velocity (FPM) @ 10 Ft.		475/396
Air Velocity (FPM) @ 40 Ft		142/132
Sound Level		70/66dBA
Max. Ambient Temp.		104 Degrees F
Hz		60
Watts		213/148
Motor Type		Permanent Split Capacitor
Drive Type		Direct
Motor Enclosure		Totally Enclosed Air-Over
Motor Insulation		Class B
Thermal Protection		Auto
Bearing Type		Ball
Height		38-1/8"
Width		20-7/8"
Max. Depth		24"
Cord Length		9 ft.
Number of Blades		3
Blade Material		Aluminum
Shaft Dia.		.472"
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		Gloss Black Powder Coat
Application		Spot Cooling and People Cooling
Standards		UL/cUL
Includes		Wall Bracket and Safety Support Cable
