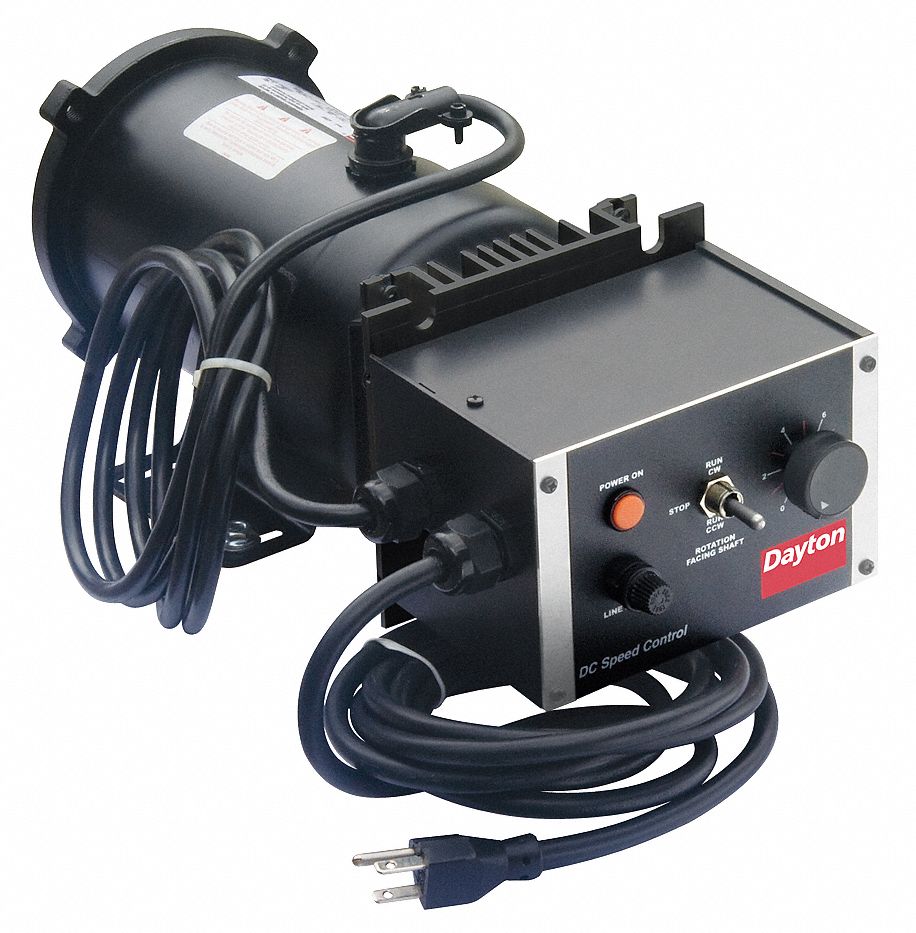

DAYTON Adjustbl Speed Motor, Perm Magnet DC, 1/4

Adjustable Speed Motor, Motor Type Permanent Magnet DC, 1/4 HP, Enclosure Totally Enclosed Fan-Cooled, Nameplate RPM 1750, Input Voltage 115VAC, NEMA/IEC Frame 56C, Mounting C-face with Removable Rigid Base, 1.0 Service Factor, 2.5 Full Load Amps, Insulation Class F, CW/CCW Rotation, Output Voltage 90VDC, Thermal Protection None, Ambient Temperature 40 Degrees C, Ball Bearings, Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Speed Range 50 to 1, Max. Torque 9.1 in.-lb., 3 Conductor Cord
  • Grainger Item #4Z248
    Price (ea.)$919.50
    BrandDAYTON
    Mfr. Model #4Z248
    UNSPSC #26101603
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)28.0
    Availability Typically in Stock
    Catalog Page No.38
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemAdjustable Speed Motor
Motor TypePermanent Magnet DC
HP1/4
EnclosureTotally Enclosed Fan-Cooled
Nameplate RPM1750
Input Voltage115VAC
NEMA/IEC Frame56C
MountingC-face with Removable Rigid Base
Service Factor1.0
Full Load Amps2.5
Insulation ClassF
RotationCW/CCW
Output Voltage90VDC
Thermal ProtectionNone
Ambient Temperature40 Degrees C
BearingsBall
Shaft Dia.5/8"
Shaft Length1-7/8"
Speed Range50 to 1
HP @ 1725 RPM0.25
Max. Torque9.1 in.-lb.
Cord3 Conductor
ApplicationFor Packaging Equipment, Pumps, Fans, Blowers, Conveyors and Other Constant or Diminishing Torques
Overall Height7"
Overall Length15-1/2"
Overall Width6-1/2"
FeaturesSoft Start Acceleration, Transient and Surge Protection and Fused Control Protection
