Motors
>
DC Motors
>
DC Motor and Control Assemblies

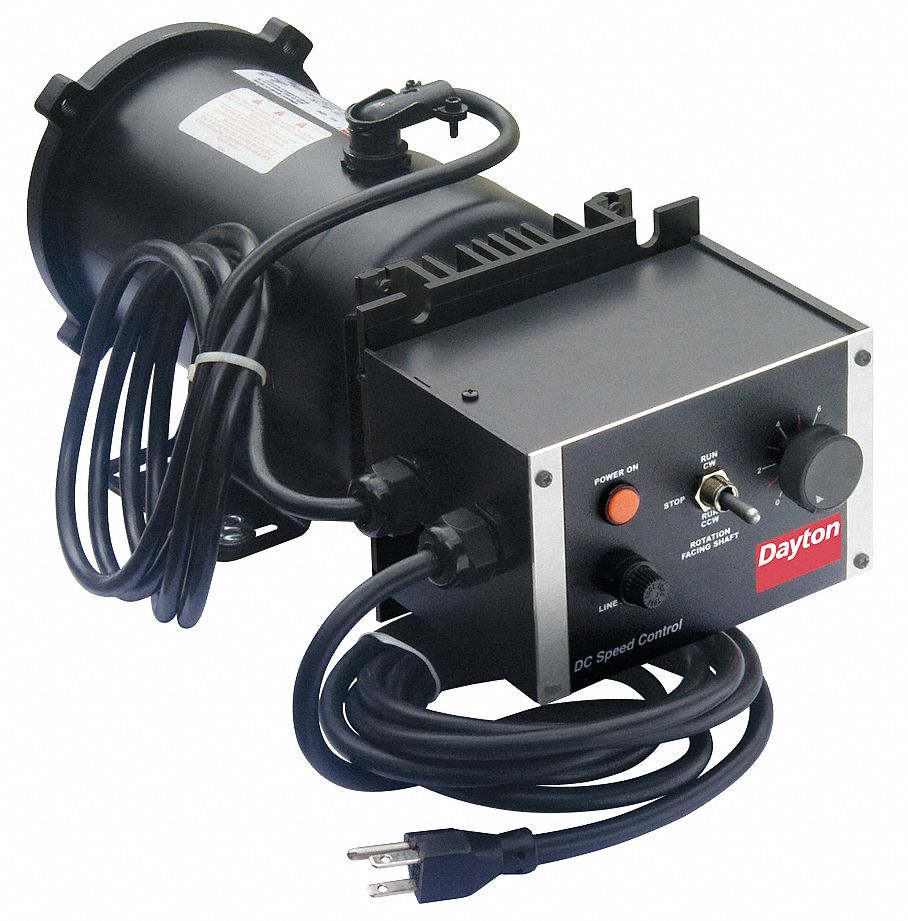

DAYTON Adjustbl Speed Motor, Perm Magnet DC, 3/4

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Adjustable Speed Motor, Motor Type Permanent Magnet DC, 3/4 HP, Enclosure Totally Enclosed Fan-Cooled, Nameplate RPM 2500, Input Voltage 115VAC, NEMA/IEC Frame 56C, Mounting C-face with Removable Rigid Base, 1.0 Service Factor, 7.6 Full Load Amps, Insulation Class F, CW/CCW Rotation, Output Voltage 90VDC, Thermal Protection None, Ambient Temperature 40 Degrees C, Ball Bearings, Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Speed Range 50 to 1, Max. Torque 18.9 in.-lb., 3 Conductor Cord

Grainger Item #	2Z846
Price (ea.)	$1,152.00
Brand	DAYTON
Mfr. Model #	2Z846
UNSPSC #	26101603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	32.0
Availability	Typically in Stock
Catalog Page No.	38
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Adjustbl Speed Motor, Perm Magnet DC, 3/4

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Adjustable Speed Motor
Motor Type		Permanent Magnet DC
HP		3/4
Enclosure		Totally Enclosed Fan-Cooled
Nameplate RPM		2500
Input Voltage		115VAC
NEMA/IEC Frame		56C
Mounting		C-face with Removable Rigid Base
Service Factor		1.0
Full Load Amps		7.6
Insulation Class		F
Rotation		CW/CCW
Output Voltage		90VDC
Thermal Protection		None
Ambient Temperature		40 Degrees C
Bearings		Ball
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Speed Range		50 to 1
HP @ 1725 RPM		0.517
HP @ 2500 RPM		3/4
Max. Torque		18.9 in.-lb.
Cord		3 Conductor
Application		For Packaging Equipment, Pumps, Fans, Blowers, Conveyors and Other Constant or Diminishing Torques
Overall Height		7"
Overall Length		16-1/2
Overall Width		6-1/2"
Features		Soft Start Acceleration, Transient and Surge Protection and Fused Control Protection

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Optional Accessories

More Accessories

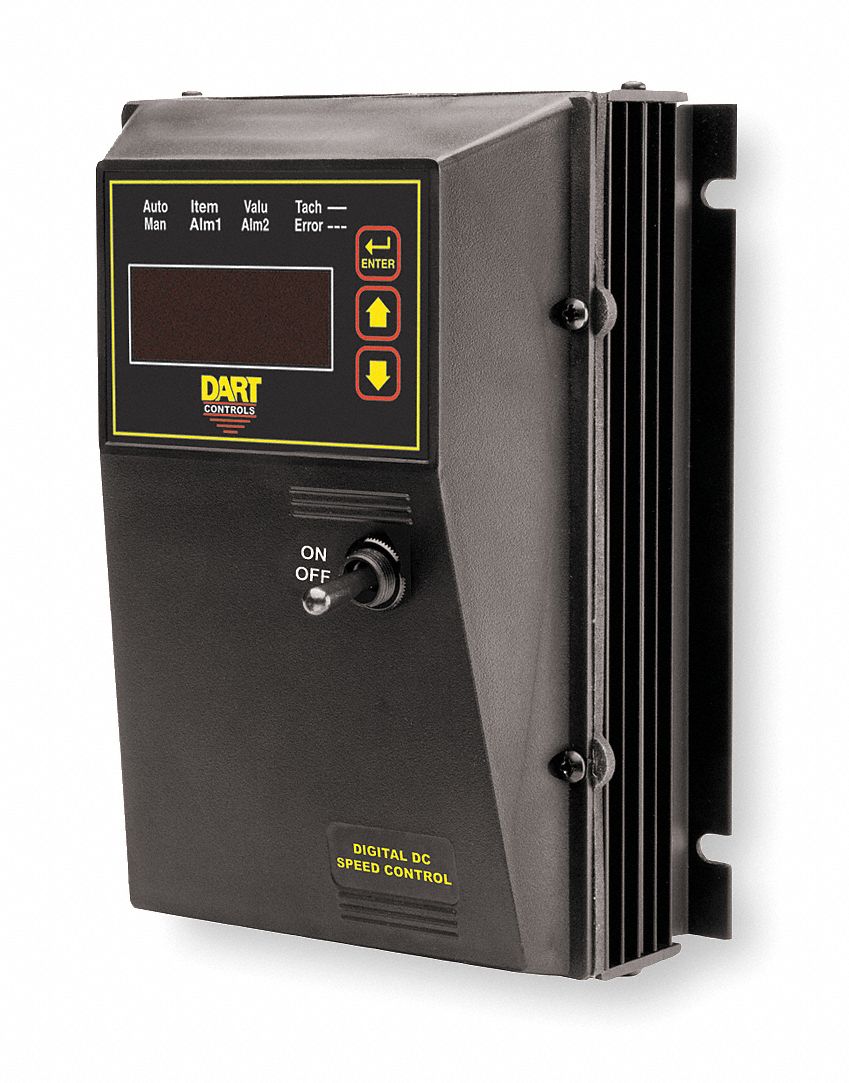

Speed Control, 90/180 VDC Output, 10.0 A
