DAYTON AC Gearmotor, 208-230VAC, RPM 16, 3 Phase

| Write a Review
| Read all Reviews
| Read all Ask & Answer

AC Gearmotor, Parallel Shaft, Voltage Rating 208-230, 3 Phase, 60/50 Hz, Single Shaft, Nameplate RPM 16, Full Load Torque (In.-Lbs.) 391.0, Overhung Load (Lb.) 237, Input HP 1/6, Gear Ratio 103:1, Full Load Amps 0.72, Insulation Class F, TEFC Enclosure, None Thermal Protection, All Position Except Shaft Up Mounting, Motor Type 3-Phase, White Epoxy Finish, Rolled Steel Housing, Washdown, Includes -

Grainger Item #	5CJD8
Price (ea.)	$756.50
Brand	DAYTON
Mfr. Model #	5CJD8
UNSPSC #	20101617
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	18.05
Availability	Typically in Stock
Catalog Page No.	126
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

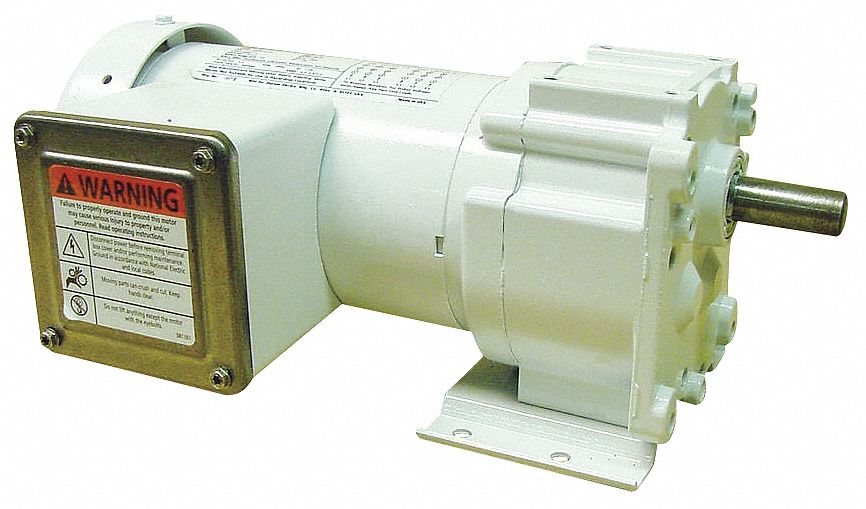

AC Gearmotor, 208-230VAC, RPM 16, 3 Phase

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		AC Gearmotor
Type		Parallel Shaft
Voltage Rating		208-230
Phase		3
Hz		60/50
Shaft Orientation		Parallel
Shaft		Single
Nameplate RPM		16
RPM @ 50 Hz		13
No Load RPM		17
Full Load Torque (In.-Lbs.)		391.0
Starting Torque (In.-Lb.)		1854
Overhung Load (Lb.)		237
Input HP		1/6
Gear Ratio		103:1
Full Load Amps		0.72
Full Load Amps @ 230V		0.72
Insulation Class		F
Enclosure		TEFC
Thermal Protection		None
Ambient (C)		40
Rotation		Reversible
Mounting		All Position Except Shaft Up
Motor Type		3-Phase
Motor Frame		38
Length Less Shaft (In.)		11
Shaft Dimensions (In.)		5/8 X 1 1/2
Keyway (In.)		3/16 x 1
Bearings		Roller On Case, Ball On Motor
Lubrication		Permanent Heavy-Duty Gear Oil
Lubrication Quantity (Qt.)		1/4
Finish		White Epoxy
Housing		Rolled Steel
Gear Case		Die Cast Aluminum
Gears		Hardened Steel, 1st Stage Helical, Subsequent Stages Spur, AGMA Class 9
Seals		Lip, Stainless Steel W/Spring
Application		Washdown
Approved		UL Recognized, CSA
Agency Compliance		UL Recognized, CSA, CE
RPM Range		16 to 30
