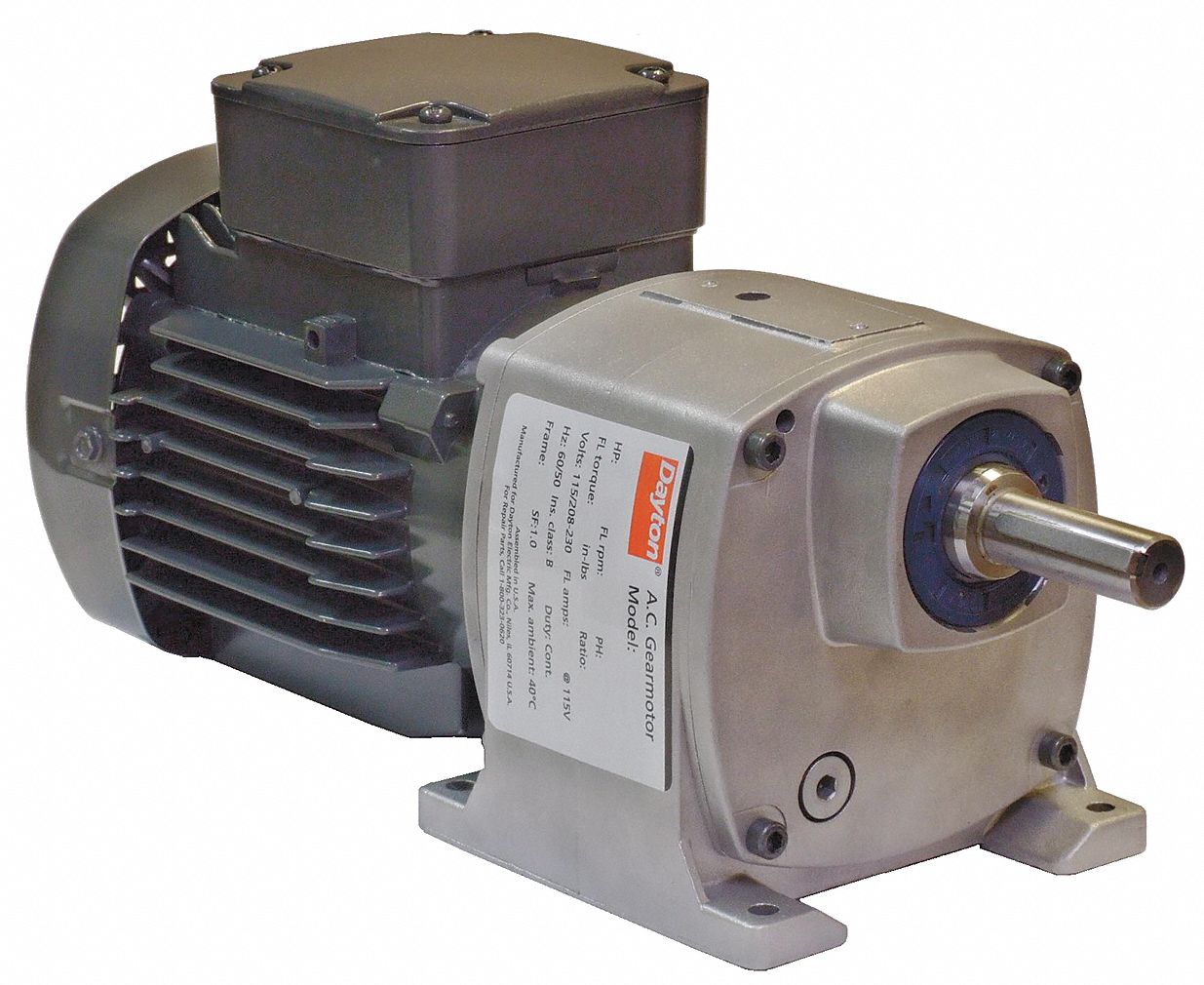

DAYTON AC Gearmotor, Parallel, 56 RPM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

AC Gearmotor, Parallel Shaft, Voltage Rating 208-230/460, 3 Phase, 60 Hz, Single Shaft, Nameplate RPM 56, Full Load Torque (In.-Lbs.) 249.0, Overhung Load (Lb.) 415, Input HP 1/4, Gear Ratio 32:1, Full Load Amps 1.8-2.0/1.0, Insulation Class F, TEFC Enclosure, None Thermal Protection, All Position Mounting, Motor Type 3-Phase, - Finish, Die Cast Aluminum Housing, -, Includes -

Grainger Item #	4RYU9
Price (ea.)	$1,105.00
Brand	DAYTON
Mfr. Model #	4RYU9
UNSPSC #	20101617
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	17.95
Availability	Typically in Stock
Catalog Page No.	115
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		AC Gearmotor
Type		Parallel Shaft
Voltage Rating		208-230/460
Phase		3
Hz		60
Shaft Orientation		Parallel
Shaft		Single
Nameplate RPM		56
Full Load Torque (In.-Lbs.)		249.0
Overhung Load (Lb.)		415
Input HP		1/4
Gear Ratio		32:1
Full Load Amps		1.8-2.0/1.0
Insulation Class		F
Enclosure		TEFC
Thermal Protection		None
Ambient (C)		40
Rotation		Reversible
Mounting		All Position
Motor Type		3-Phase
Motor Frame		LS63
Length Less Shaft (In.)		12-1/4
Shaft Dimensions (In.)		5/8 X 1 13/16
Keyway (In.)		3/16 X 1 9/16
Bearings		Ball
Lubrication		Gear Oil
Lubrication Quantity (Qt.)		1/3
Housing		Die Cast Aluminum
Gear Case		Die Cast Aluminum
Gears		Hardened Steel
Seals		Lip
Approved		UL Recognized, CSA
Agency Compliance		UL Recognized, CSA
RPM Range		51 to 75
