DAYTON AC Gearmotor, Parallel Shaft, 45 RPM, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

AC Gearmotor, Parallel Shaft, Voltage Rating 115, 1 Phase, 60 Hz, Single Shaft, Nameplate RPM 45, Full Load Torque (In.-Lbs.) 438.0, Overhung Load (Lb.) 385, Input HP 1/3, Gear Ratio 38:1, Full Load Amps 5.9, Insulation Class F, OFC Enclosure, None Thermal Protection, Horizontal Mounting, Motor Type Split-Phase, - Finish, - Housing, -, Includes -

Grainger Item #	4FDY9
Price (ea.)	$920.00
Brand	DAYTON
Mfr. Model #	4FDY9
UNSPSC #	20101617
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	44.39
Availability	Typically in Stock
Catalog Page No.	113
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

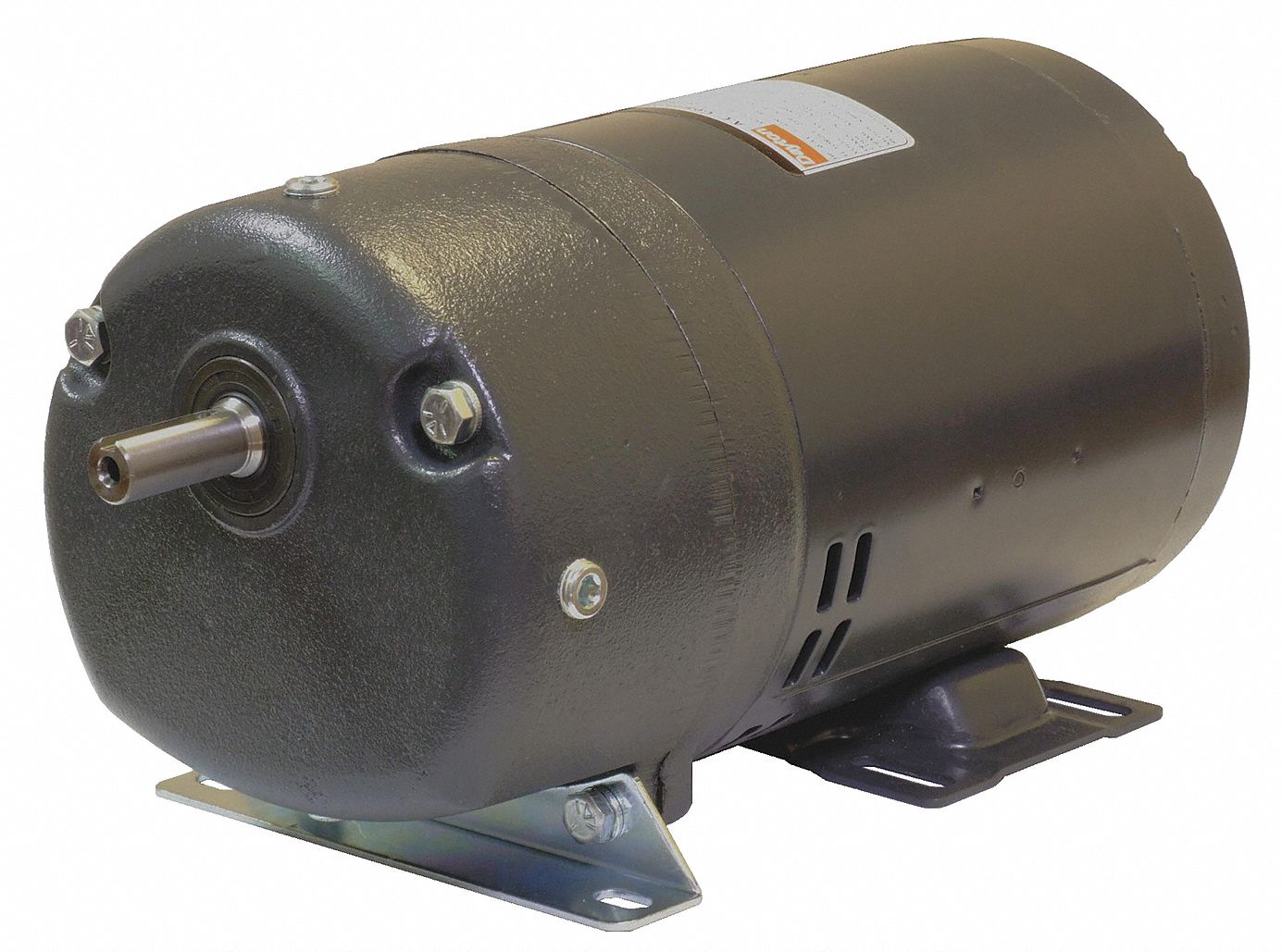

AC Gearmotor, Parallel Shaft, 45 RPM, 115V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		AC Gearmotor
Type		Parallel Shaft
Voltage Rating		115
Phase		1
Hz		60
Shaft Orientation		Parallel
Shaft		Single
Nameplate RPM		45
Full Load Torque (In.-Lbs.)		438.0
Overhung Load (Lb.)		385
Input HP		1/3
Gear Ratio		38:1
Full Load Amps		5.9
Insulation Class		F
Enclosure		OFC
Thermal Protection		None
Ambient (C)		40
Rotation		Reversible
Mounting		Horizontal
Motor Type		Split-Phase
Motor Frame		56Y
Length Less Shaft (In.)		12-1/2
Shaft Dimensions (In.)		1 x 2 1/4
Keyway (In.)		1/4 x 1 3/8
Bearings		Ball On Case And Motor
Lubrication		Sae #90, Type 5ep, Iso 220 Grade Gear Oil
Gear Case		Cast Iron
Gears		Steel
Seals		Lip Type On Input And Output Shaft
Agency Compliance		UL Recognized, CSA
RPM Range		31 to 50
