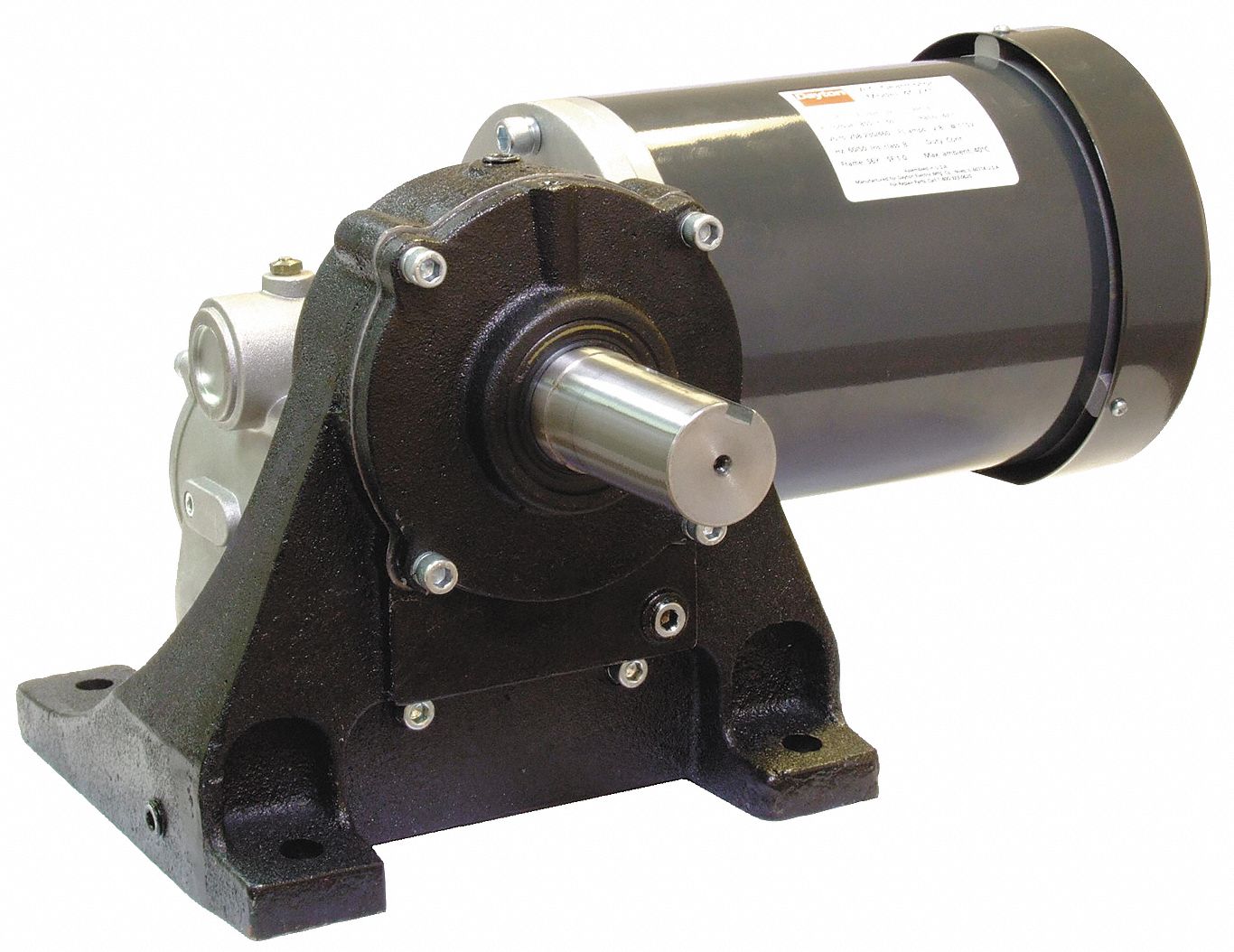

DAYTON AC Gearmotor, Right Angle, 30 RPM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

AC Gearmotor, Right Angle, Voltage Rating 230/460, 3 Phase, 60/50 Hz, Single Shaft, Nameplate RPM 30, Full Load Torque (In.-Lbs.) 1310.0, Overhung Load (Lb.) 883, Input HP 3/4, Gear Ratio 57:1, Full Load Amps 2.7-3.0/1.5, Insulation Class F, TEFC Enclosure, None Thermal Protection, All Position Mounting, Motor Type 3-Phase, - Finish, - Housing, -, Includes -

Grainger Item #	4FDY8
Price (ea.)	$1,624.00
Brand	DAYTON
Mfr. Model #	4FDY8
UNSPSC #	20101617
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	79.0
Availability	Typically in Stock
Catalog Page No.	118
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		AC Gearmotor
Type		Right Angle
Voltage Rating		230/460
Phase		3
Hz		60/50
Shaft Orientation		Right Angle
Shaft		Single
Nameplate RPM		30
Full Load Torque (In.-Lbs.)		1310.0
Overhung Load (Lb.)		883
Input HP		3/4
Gear Ratio		57:1
Full Load Amps		2.7-3.0/1.5
Insulation Class		F
Enclosure		TEFC
Thermal Protection		None
Ambient (C)		40
Rotation		Reversible
Mounting		All Position
Motor Type		3-Phase
Motor Frame		56Y
Shaft Dimensions (In.)		1 1/2 x 3
Keyway (In.)		3/8 x 2 1/4
Bearings		Roller On Case, Ball On Motor
Lubrication		Oil Filled
Gear Case		Die Cast Aluminum
Gears		Hardened Steel Worm/Forged Bronze Output
Seals		Two Double Lips On Input And Output Shaft
Agency Compliance		UL Recognized, CSA
RPM Range		16 to 30
