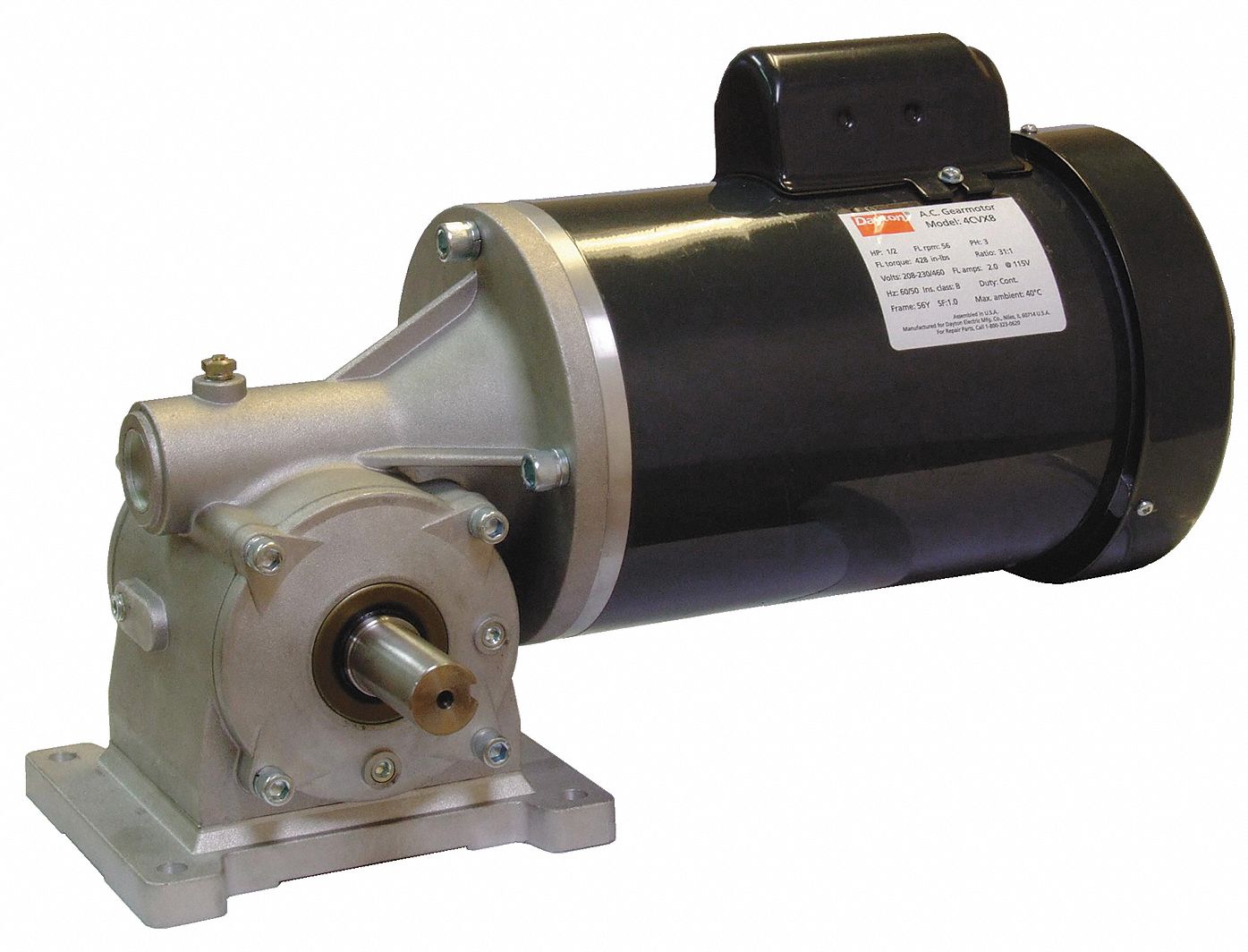

DAYTON AC Gearmotor, RPM 30, 60 Hz

| Write a Review
| Read all Reviews
| Read all Ask & Answer

AC Gearmotor, Right Angle, Voltage Rating 115/208-230, 1 Phase, 60 Hz, Single Shaft, Nameplate RPM 30, Full Load Torque (In.-Lbs.) 680.0, Overhung Load (Lb.) 980, Input HP 1/2, Gear Ratio 58:1, Full Load Amps 8.4/4.2, Insulation Class F, TEFC Enclosure, No Thermal Protection, All Position Mounting, Motor Type Capacitor Start, - Finish, - Housing, -, Includes Capacitor

Grainger Item #	4CVZ3
Price (ea.)	$1,096.00
Brand	DAYTON
Mfr. Model #	4CVZ3
UNSPSC #	20101617
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	43.0
Availability	Typically in Stock
Catalog Page No.	118
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		AC Gearmotor
Type		Right Angle
Voltage Rating		115/208-230
Phase		1
Hz		60
Shaft Orientation		Right Angle
Shaft		Single
Nameplate RPM		30
Full Load Torque (In.-Lbs.)		680.0
Starting Torque (In.-Lb.)		2436
Overhung Load (Lb.)		980
Input HP		1/2
Gear Ratio		58:1
Full Load Amps		8.4/4.2
Insulation Class		F
Enclosure		TEFC
Thermal Protection		No
Ambient (C)		40
Rotation		Reversible
Mounting		All Position
Motor Type		Capacitor Start
Motor Frame		56Y
Shaft Dimensions (In.)		1 X 2 1/4
Keyway (In.)		1/4 X 1 1/4
Bearings		Roller on Case, Ball on Motor
Lubrication		Gear Oil
Lubrication Quantity (Qt.)		3/8
Gear Case		Die Cast Aluminum
Gears		Hardened Steel Worm, Forged Bronze Output Gear
Seals		Lip
Approved		UL Recognized, CSA
Agency Compliance		UL Recognized, CSA
Includes		Capacitor
RPM Range		16 to 30
