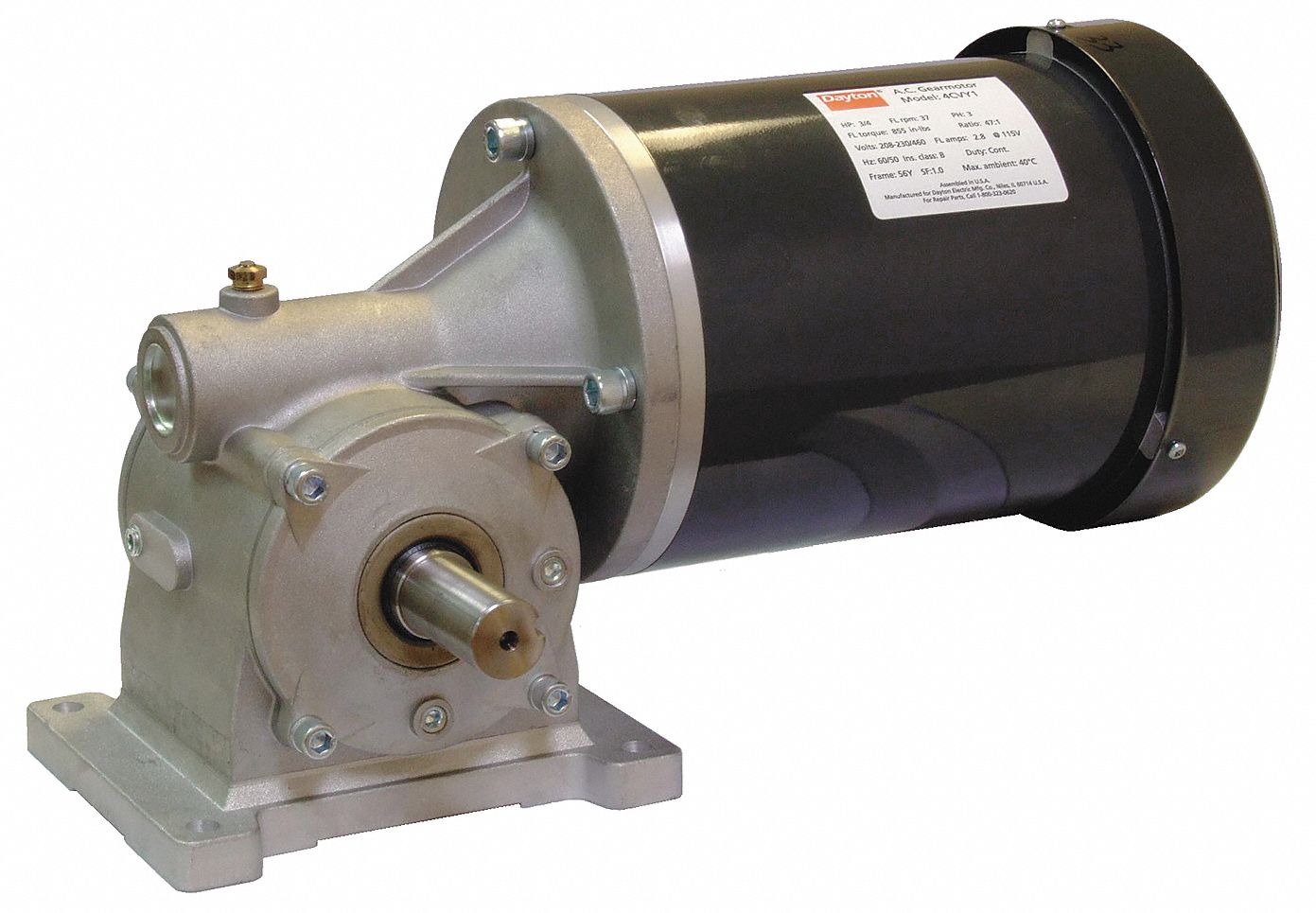

DAYTON AC Gearmotor, RPM 68, 60/50 Hz

| Write a Review
| Read all Reviews
| Read all Ask & Answer

AC Gearmotor, Right Angle, Voltage Rating 208-230/460, 3 Phase, 60/50 Hz, Single Shaft, Nameplate RPM 68, Full Load Torque (In.-Lbs.) 367.0, Overhung Load (Lb.) 932, Input HP 1/2, Gear Ratio 26:1, Full Load Amps 2.0-1.9/.95, Insulation Class F, TEFC Enclosure, No Thermal Protection, All Position Mounting, Motor Type 3-Phase, - Finish, - Housing, -, Includes -

Grainger Item #	4CVU9
Price (ea.)	$1,048.00
Brand	DAYTON
Mfr. Model #	4CVU9
UNSPSC #	20101617
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	41.0
Availability	Typically in Stock
Catalog Page No.	118
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		AC Gearmotor
Type		Right Angle
Voltage Rating		208-230/460
Phase		3
Hz		60/50
Shaft Orientation		Right Angle
Shaft		Single
Nameplate RPM		68
Full Load Torque (In.-Lbs.)		367.0
Starting Torque (In.-Lb.)		1144
Overhung Load (Lb.)		932
Input HP		1/2
Gear Ratio		26:1
Full Load Amps		2.0-1.9/.95
Insulation Class		F
Enclosure		TEFC
Thermal Protection		No
Ambient (C)		40
Rotation		Reversible
Mounting		All Position
Motor Type		3-Phase
Motor Frame		56Y
Shaft Dimensions (In.)		1 X 2 1/4
Keyway (In.)		1/4 X 1 1/4
Bearings		Roller on Case, Ball on Motor
Lubrication		Gear Oil
Lubrication Quantity (Qt.)		3/8
Gear Case		Die Cast Aluminum
Gears		Hardened Steel Worm, Forged Bronze Output Gear
Seals		Lip
Approved		UL Recognized, CSA
Agency Compliance		UL Recognized, CSA
RPM Range		51 to 75
