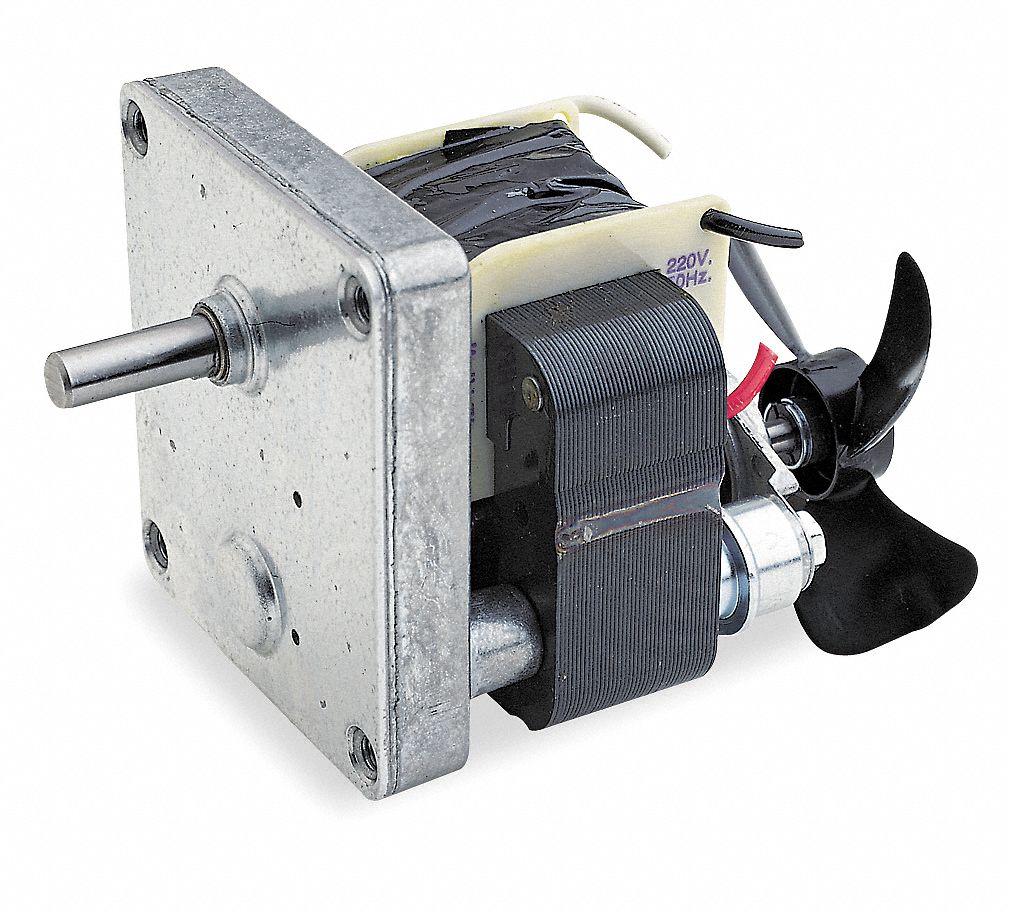

DAYTON Gearmotor, AC, 50 RPM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

AC Gearmotor, Parallel Shaft, Voltage Rating 115, 1 Phase, 60 HzNameplate RPM 50, Full Load Torque (In.-Lbs.) 6.0, Overhung Load (Lb.) 3.5, Input HP 1/70, Gear Ratio 65.6:1, Full Load Amps 0.75Open Enclosure, None Thermal Protection, Output Shaft Horizontal Only Mounting, Motor Type Shaded Pole

Grainger Item #	3M288
Price (ea.)	$76.55
Brand	DAYTON
Mfr. Model #	3M288
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.5
Availability	Typically in Stock
Catalog Page No.	105
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $16.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		AC Gearmotor
Type		Parallel Shaft
Voltage Rating		115
Phase		1
Hz		60
Shaft Orientation		Parallel
Nameplate RPM		50
Full Load Torque (In.-Lbs.)		6.0
Starting Torque (In.-Lb.)		4.5
Overhung Load (Lb.)		3.5
Input HP		1/70
Gear Ratio		65.6:1
Full Load Amps		0.75
Enclosure		Open
Thermal Protection		None
Rotation		CW
Mounting		Output Shaft Horizontal Only
Motor Type		Shaded Pole
Length Less Shaft (In.)		3-7/8
Shaft Dimensions (In.)		5/16 x 3/4
Brake		Cone
Bearings		Porous Bronze Sleeve on Both Case and Motor
Lubrication		Grease Filled
Gear Case		Zinc Die Cast with Steel Cover
Gears		Sintered Steel/Phenolic
RPM Range		31 to 50
