DAYTON Gearmotor, 68 RPM, 30 Torque, 115/230V, TENV

| Write a Review
| Read all Reviews
| Read all Ask & Answer

AC Gearmotor, Parallel Shaft, Voltage Rating 115/230, 1 Phase, 60/50 Hz, Single Output Shaft, Nameplate RPM 68, Full Load Torque (In.-Lbs.) 30.0, Overhung Load (Lb.) 50, Input HP 1/20, Gear Ratio 26:1, Full Load Amps 0.62/0.33, Insulation Class B, TENV Enclosure, None Thermal Protection, All Position Mounting, Motor Type Permanent Split Capacitor, Unpainted Finish, Zinc Die Cast Housing, -

Grainger Item #	1LPU9
Price (ea.)	$229.00
Brand	DAYTON
Mfr. Model #	1LPU9
UNSPSC #	20101617
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	7.7
Availability	Typically in Stock
Catalog Page No.	109
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

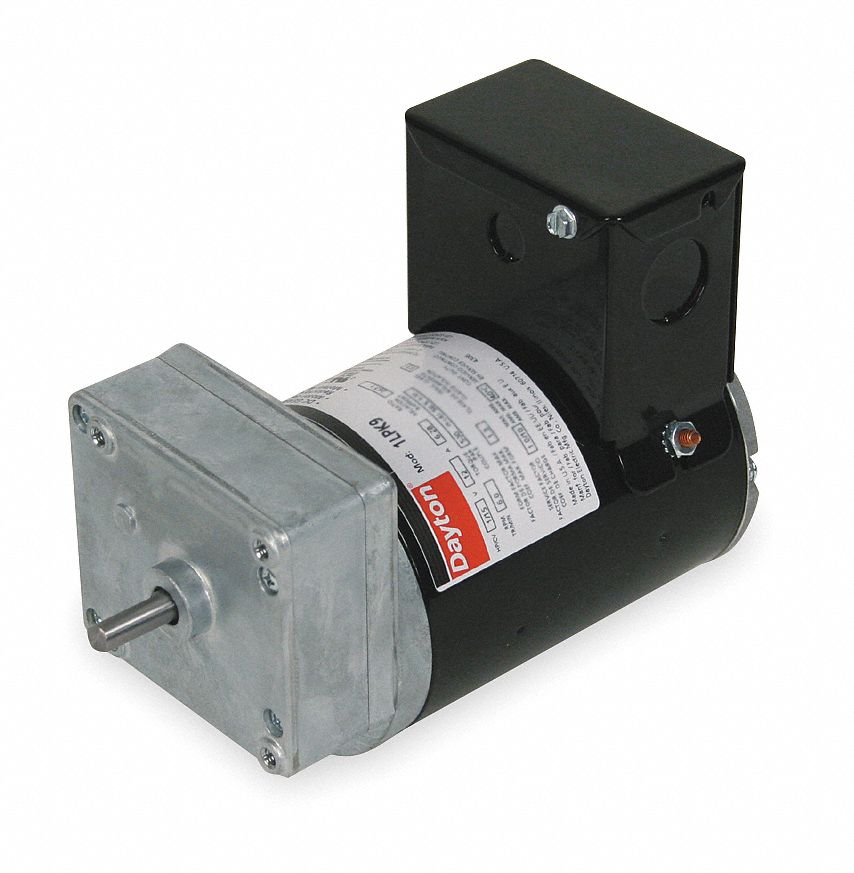

Gearmotor, 68 RPM, 30 Torque, 115/230V, TENV

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		AC Gearmotor
Type		Parallel Shaft
Voltage Rating		115/230
Phase		1
Hz		60/50
Shaft Orientation		Parallel
Reversible Shaft Output		No
Shaft		Single Output
Nameplate RPM		68
RPM @ 50 Hz		58
Full Load Torque (In.-Lbs.)		30.0
Overhung Load (Lb.)		50
Input HP		1/20
Gear Ratio		26:1
Full Load Amps		0.62/0.33
Full Load Amps @ 115/230V		0.62/0.33
Insulation Class		B
Enclosure		TENV
Thermal Protection		None
Ambient (C)		40
Rotation		Reversible
Mounting		All Position
Motor Type		Permanent Split Capacitor
Capacitor Required		Included
Length Less Shaft (In.)		5-3/4
Shaft Dimensions (In.)		5/16 x 3/4
Keyway (In.)		Flat
Bearings		Porous Bronze Sleeve on Case, Ball on Motor
Lubrication		Grease Filled
Lubrication Quantity (Qt.)		3.2 oz.
Finish		Unpainted
Housing		Zinc Die Cast
Gear Case		Zinc Die Cast
Gears		Acetyl/Steel
Seals		O-Ring Type on Output Shaft
Agency Compliance		cRUus
RPM Range		51 to 75
