DAYTON Gearmotor, 13 RPM, 113 Torque, 115V, TEFC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

AC Gearmotor, Parallel Shaft, Voltage Rating 115, 1 Phase, 60 Hz, Single Output Shaft, Nameplate RPM 13, Full Load Torque (In.-Lbs.) 113.0, Overhung Load (Lb.) 150, Input HP 1/20, Gear Ratio 128:1, Full Load Amps 1.60, Insulation Class B, TEFC Enclosure, None Thermal Protection, All Position Mounting, Motor Type Shaded Pole, Unpainted Finish, Zinc Die Cast Housing, -

Grainger Item #	1LPN3
Price (ea.)	$293.25
Brand	DAYTON
Mfr. Model #	1LPN3
UNSPSC #	26101603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	11.2
Availability	Typically in Stock
Catalog Page No.	106
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

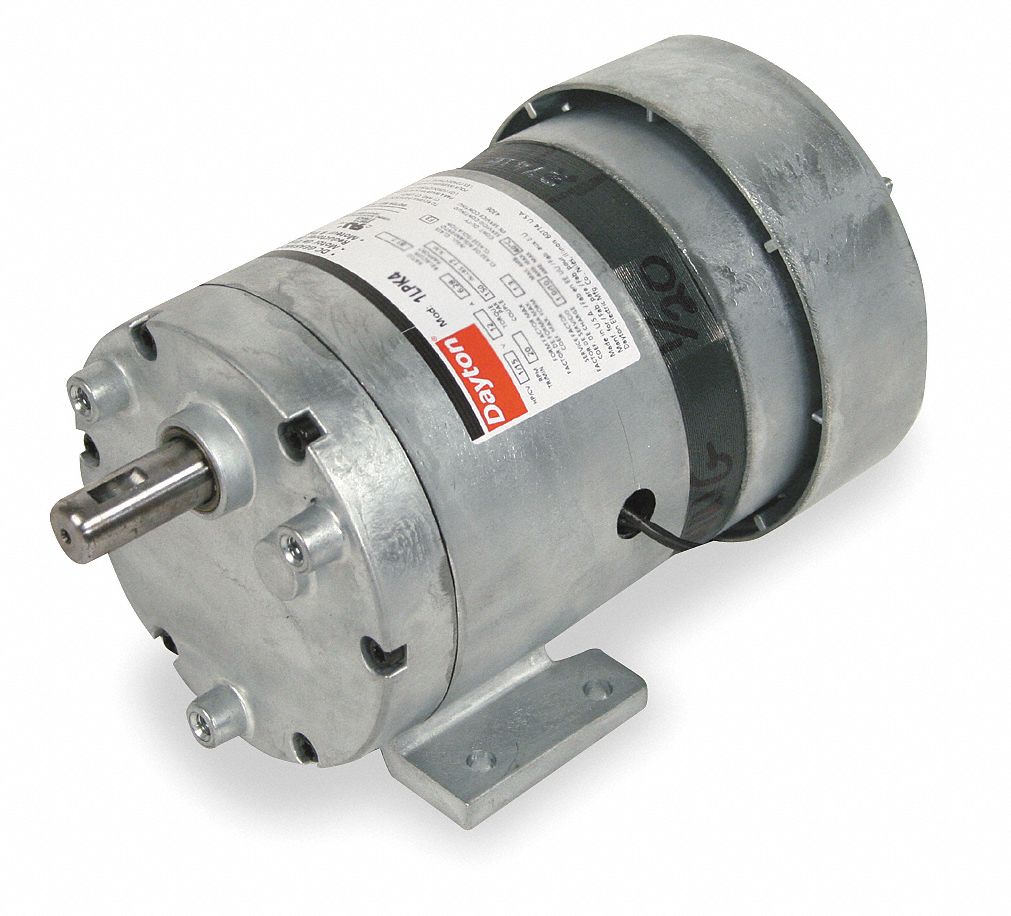

Gearmotor, 13 RPM, 113 Torque, 115V, TEFC

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		AC Gearmotor
Type		Parallel Shaft
Voltage Rating		115
Phase		1
Hz		60
Shaft Orientation		Parallel
Reversible Shaft Output		No
Shaft		Single Output
Nameplate RPM		13
Full Load Torque (In.-Lbs.)		113.0
Overhung Load (Lb.)		150
Input HP		1/20
Gear Ratio		128:1
Full Load Amps		1.60
Insulation Class		B
Enclosure		TEFC
Thermal Protection		None
Ambient (C)		40
Rotation		CW
Mounting		All Position
Motor Type		Shaded Pole
Length Less Shaft (In.)		7-1/2
Shaft Dimensions (In.)		5/8 x 1 1/2
Keyway (In.)		#605 Woodruff Key
Bearings		Porous Bronze Sleeve on Case, Ball on Motor
Lubrication		Grease Filled
Lubrication Quantity (Qt.)		3.2 oz.
Finish		Unpainted
Housing		Zinc Die Cast
Gear Case		Zinc Die Cast
Gears		Acetyl/Steel
Seals		Lip Type on Output Shaft
Agency Compliance		RU, CSA
RPM Range		0 to 15
