DAYTON AC Adj Frequency Drive, 1 HP, 1 Ph, 230V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

AC Drive, Adjustable Frequency, Max HP 1, Max Output Amps 5.0, 200-230 Voltage Input, 200-230 Voltage Output, Input Phase AC Single, Output Phase AC 3, Starting Torque 200 %, Torque @ 1 Hz 200 %, Frequency Setting 50/60 Hertz, Output Frequency 0-400 Hertz, Acceleration Adjust 0.1-3000 Sec, Deceleration Adjust 0.1-3000 Sec, Dynamic Braking, Open Enclosure, Height 4 1/2 In, Width 5 1/8 In, Depth 5 3/8 In, Agency Compliance cULus, CE

Grainger Item #	1KBP7
Price (ea.)	$791.50
Brand	DAYTON
Mfr. Model #	1KBP7
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	3.75
Availability	Item ships within 4 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	South Korea

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

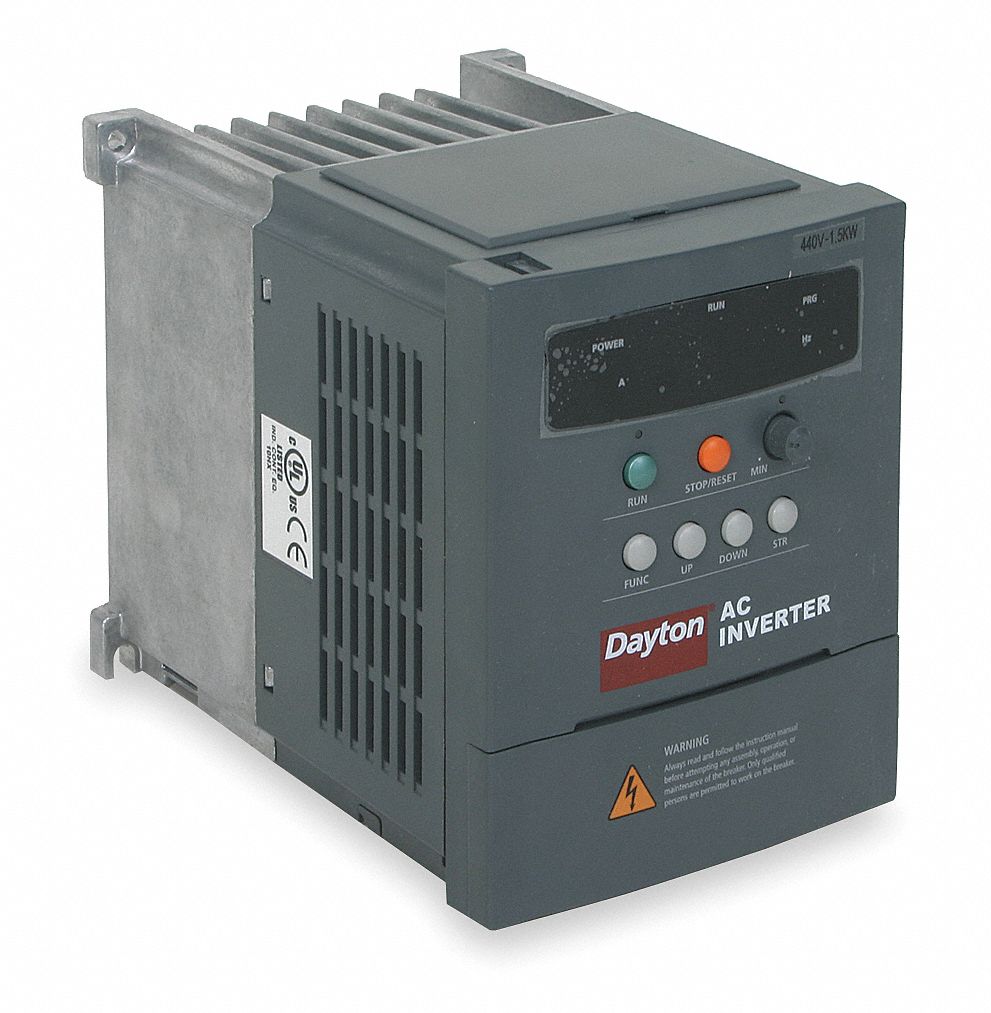

AC Adj Frequency Drive, 1 HP, 1 Ph, 230V

Enlarge Image

Item		AC Drive
Drive Type		Adjustable Frequency
Max. HP		1
Max. Output Amps		5
Voltage		200-230
Voltage Output		200-230
Input Phase AC		1
Output Phase AC		3
Frequency Setting (Hertz)		50/60
Output Frequency (Hertz)		0 to 400
Acceleration Adjust (Sec.)		0.1 - 3000
Deceleration Adjust (Sec.)		0.1 - 3000
Dynamic Braking		Yes
Enclosure		Open
Height (In.)		4.5
Width (In.)		5.13
Depth (In.)		5.38
Functions		Multispeed Operation, Operation Mode Selection (V/F Control or Sensorless Vector Control Method Selection Programmable), DC Braking, Dynamic Braking, Upper/Lower Frequency Setting, Frequency Jump Operation, PID Control, Automatic Voltage Regulation, Forward/Reverse/Run, Acceleration/Deceleration (Linear, S-Curve or U-Curve Pattern Selectable), Instantaneous Power Failure Restart Operation, Electronic Thermal Level Adjustment, Retry Function, Trip History Monitor, Auto Tuning, Torque Boost, Overload Advance Notice Signal, Software Lock, Carrier Frequency Adjustment, RS485 Link Operation, Starting Frequency Adjustment, Jogging Operation
Control Type		Keypad/Potentiometer
Key Pad Lockout		Yes
Start/Stop Control		Programmable
Protection		Overcurrent, Overvoltage, Undervoltage, Output Short Circuit, Temperature Abnormality, Overload Shut-Off (Electronic Thermal), Ground Fault Protection, External Trip, Communication Error, Unattended Start Prevention Error, EEPROM Error
Control Method		Space Vector PWM Control
Displays		LED
Digital Readout		RPM, Output Frequency, Output Current, Output Voltage, Operation Direction, PID Feedback, Terminal Input, Terminal Output, Transition Frequency Monitor, Power Consumption and Operating Time Accumulation
For Use With		3-Phase Inverter Duty Motors
Agency Compliance		cULus, CE
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
