Motors
>
Motor Supplies
>
DC Speed Controls

DART CONTROLS Control, DC Speed

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Variable DC Speed Control, Output Voltage 90/180 VDC, Shunt Wound Voltage 100/200 VDC, Power Rating @ Lower Voltage 1/8-1 HP, @ Higher Voltage 1/4-2 HP, Input Voltage 120/240 VAC, Speed Range 50:1, Maximum Current 10.0 Amps, Chassis Mount, Adjustable Acceleration, Torque Limit, Current Limit, Minimum/Maximum Speed, IR Compensation, Deceleration Fixed, Accepts Tach Feedback, Fuse Protected, Length 7.00 Inches, Depth 1.63 Inches, Width 5.53 Inches

Grainger Item #	6Z385
Price (ea.)	$245.75
Brand	DART CONTROLS
Mfr. Model #	253G-200C
UNSPSC #	39121510
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.5
Availability	Typically in Stock
Catalog Page No.	347
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

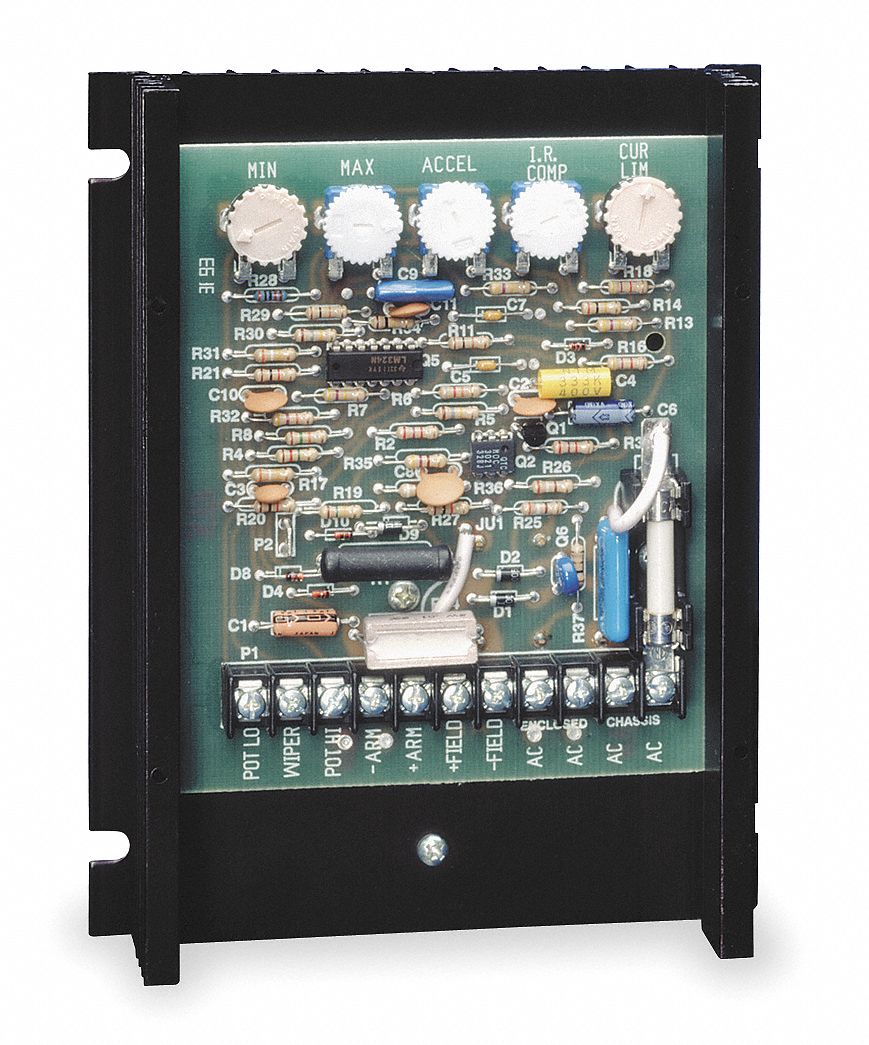

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		DC Variable Speed Control
Shunt Wound Volts		100/200
HP		1/8 to 1 @ 90 VDC, 1/4 to 2 @ 180 VDC
Voltage Output		90/180VDC
Input Voltage		120/240VAC
Enclosure		Chassis
Speed Range		50:1
Speed Regulation		+/-1% with Armature Voltage Feedback, +/-0.5% with Tach Feedback
Current/Torque Limit		Adjustable
Accepts Tach Feedback		Yes
Max. Amps		10
Dynamic Braking		No
Linear Acceleration		Adj. 0.5-8 sec.
Linear Deceleration		No
Protection Type		Fused
Follower Circuit		No
Mount Type		Chassis
Height (In.)		7
Depth (In.)		1.63
Width (In.)		5.53
Operates On		50/60 Hertz at +/-10 Percentage Rated Line Voltage
Provides		Superior Wide Range Adjustable Speed Control
Operating Temp.		-10 to 45 Degree C
External Switches		None
HP @ Higher Volts		1/4 to 2
HP @ Lower Volts		1/8 to 1
For Use With		Material Handling, Laboratory, Food Processing, Pump, Fan/Blower, Conveyor, Machine Tool, DC Motor and Spooling Applications
Includes		Speed Pot, Knob and Dial Plate
Agency Compliance		CULus Listed
