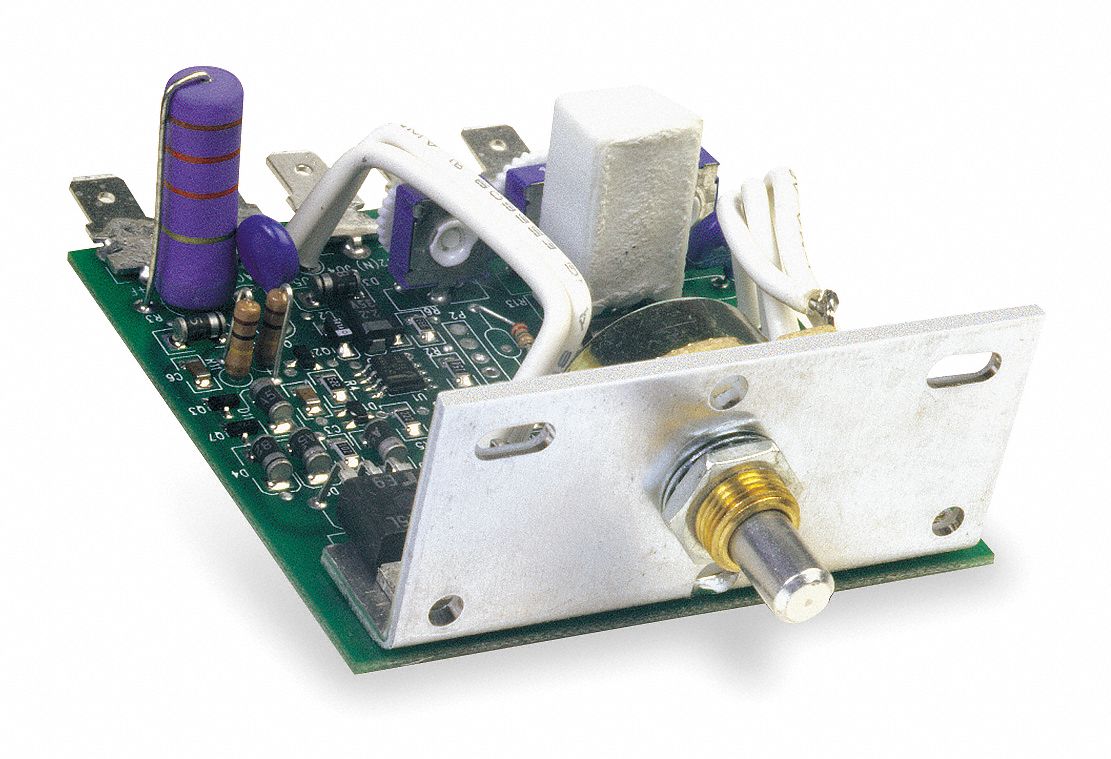

DART CONTROLS Control, DC Speed

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Variable DC Speed Control, Output Voltage 90/180 VDC, Shunt Wound Voltage 100/200 VDC, Power Rating @ Lower Voltage 1/50-1/6 HP, @ Higher Voltage 1/25-1/3 HP, Input Voltage 120/240 VAC, Speed Range 25:1, Maximum Current 2.0 Amps, Chassis Mount, Acceleration Fixed @ 5 Seconds, Minimum/Maximum Speed Adjustable, IR Compensation Adjustable, Length 1.30 Inches, Depth 3.30 Inches, Width 2.80 Inches

Grainger Item #	5JJ56
Price (ea.)	$78.25
Brand	DART CONTROLS
Mfr. Model #	15DV1A
UNSPSC #	39121510
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.35
Availability	Typically in Stock
Catalog Page No.	347
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $16.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		DC Variable Speed Control
Shunt Wound Volts		100/200
HP		1/50 to 1/3
Voltage Output		90/180VDC
Input Voltage		120/240VAC
Enclosure		L Chassis
Speed Range		25:1
Speed Regulation		+/-1% with Armature Voltage Feedback, +/-0.5% with Tach Feedback
Current/Torque Limit		None
Accepts Tach Feedback		No
Max. Amps		2
Dynamic Braking		No
Linear Acceleration		Fixed 0.5 sec.
Linear Deceleration		No
Follower Circuit		No
Mount Type		Chassis
Height (In.)		1.3
Depth (In.)		3.3
Width (In.)		2.8
Operates On		50/60 Hertz at +/-10 Percentage Rated Line Voltage
Provides		Superior Wide Range Adjustable Speed Control
Operating Temp.		-10 to 45 Degree C
External Switches		None
HP @ Higher Volts		1/25 to 1/3
HP @ Lower Volts		1/50 to 1/6
Includes		Speed Pot, Knob and Dial Plate
Agency Compliance		cULus Recognized
