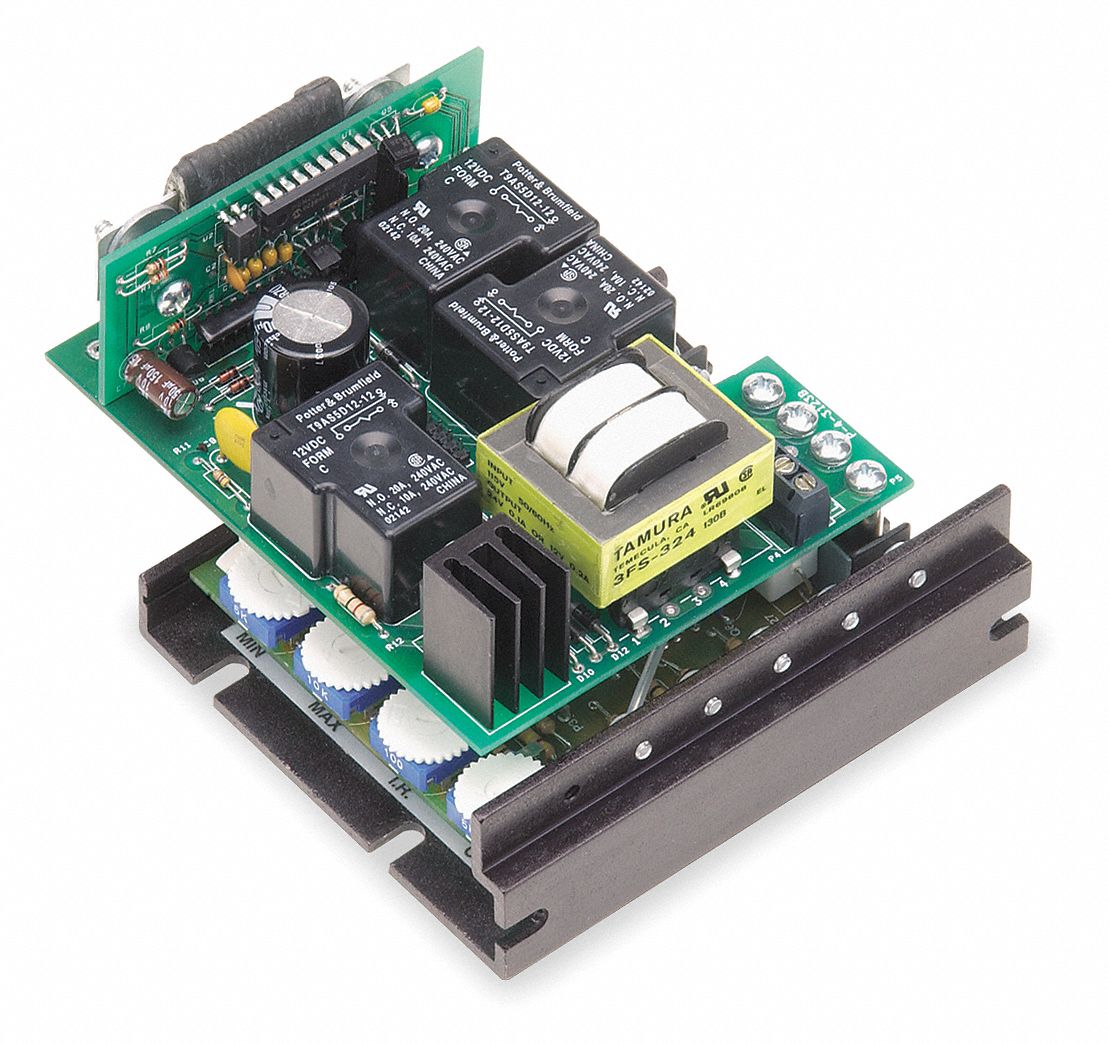

DART CONTROLS DC Variable Speed Reversing Control

| Write a Review
| Read all Reviews
| Read all Ask & Answer

DC Variable Speed Reversing Control, Voltage Output 90, 100 Shunt Wound Volts, HP @ Higher Volts 1/8-1/2, Voltage Input 120, Speed Range 50:1, Max. Amps 5.5 Continuous, Chassis Mount Enclosure, Linear Acceleration Fixed .05 Seconds, Current/Torque Limit Adjustable, Adjustable IR Compensation, Length 6.25 In, Depth 2.645 In, Width 3.75 In, Operating Temp -10 to 45 C

Grainger Item #	5HA33
Price (ea.)	$295.25
Brand	DART CONTROLS
Mfr. Model #	130LC100
UNSPSC #	39121510
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.65
Availability	Typically in Stock
Catalog Page No.	347
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		DC Variable Speed Reversing Control
Shunt Wound Volts		100
Voltage Output		90VDC
Input Voltage		120VAC
Enclosure		Chassis
Speed Range		50:1
Speed Regulation		+/-1%
Current/Torque Limit		Adjustable
Accepts Tach Feedback		No
Max. Amps		5.5
Dynamic Braking		Yes
Linear Acceleration		Fixed 0.5 sec.
Linear Deceleration		No
IR Compensation		Adj.
Follower Circuit		No
Height (In.)		6.25
Depth (In.)		2.65
Width (In.)		3.75
Operates On		50/60 Hertz at +/-10 Percentage Rated Line Voltage
Provides		Instant Reversing And Quick Precise Stopping
Operating Temp.		-10 to 45 Degree C
External Switches		None
HP @ Lower Volts		1/8 to 1/2
Includes		Speed Pot, Knob and Dial Plate
Agency Compliance		C-UL US
