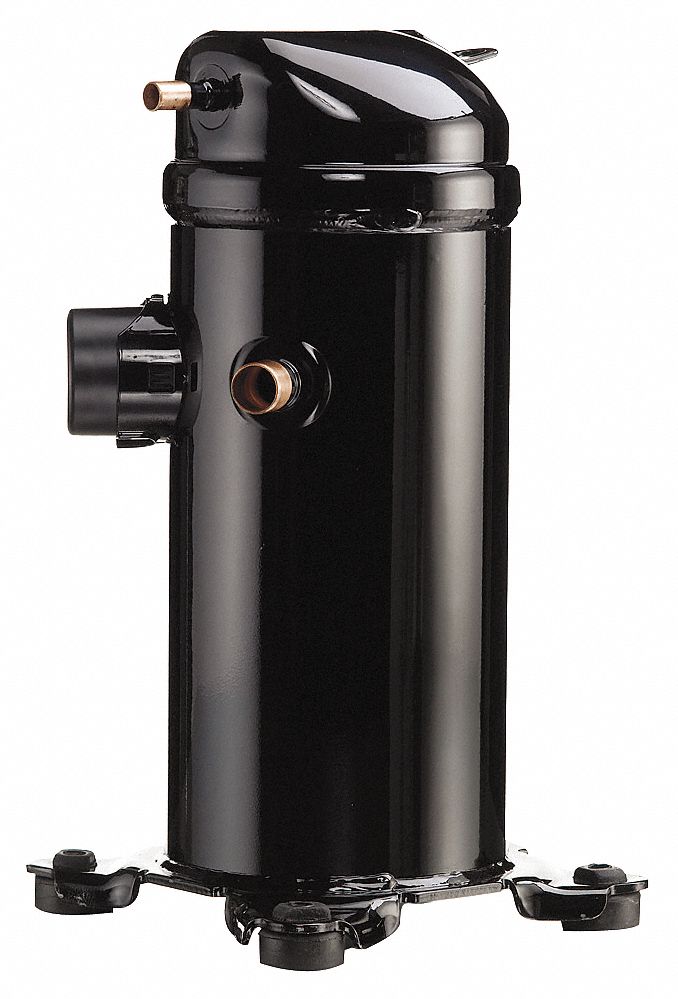

A/C Compressor, BtuH 32, 000, Voltage 208/230, 1 Phase, Line Connection Suction I.D. 3/4 In., Line Connection Discharge I.D. 1/2 In., Refrigerant Type R-22, Nominal HP 2-1/4, 60 Hz, 16.7 LRA Amps, Evaporating Temp @ ARI Standards 45 Degrees F, Condensing Temp @ ARI Standards 130 Degrees FAmbient Temp @ ARI Standards 90 Degrees FBase Mount Length 7-1/2 In., Base Mount Width 7-1/2 In.Length 6-1/2 In., Width 6-1/2 In., Height 16-3/8 In., Potential Relay 3AAR3*3M*, Start Cap. MFD/Volts 145/175

Grainger Item #	4UKW3
Price (ea.)	$794.50
Brand	DANFOSS
Mfr. Model #	HRM032U1LP6
UNSPSC #	40151607
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	69.65
Availability	Typically in Stock
Catalog Page No.	4546
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		A/C Compressor
BtuH		32,000
Voltage		208/230
Phase		1
Line Connection Suction I.D.		3/4"
Line Connection Discharge I.D.		1/2"
Refrigerant Type		R-22
Nominal HP		2-1/4
Hz		60
Amps		16.7 LRA
Evaporating Temp @ ARI Standards		45 Degrees F
Condensing Temp @ ARI Standards		130 Degrees F
Ambient Temp @ ARI Standards		90 Degrees F
Base Mount Length		7-1/2"
Base Mount Width		7-1/2"
Length		6-1/2"
Width		6-1/2"
Height		16-3/8"
Potential Relay		3AAR33M
Start Cap. MFD/Volts		145/175
Run Capacitor MF/Volt		45
Type of Compressor Oil		AB
Application		Split Systems and Packaged A/C Units
Manufacturers Warranty Length		1 yr.
Standards		Meets ARI Performance, UL Certified, CE Certified
Includes		Mounting Kit with Grommets and Sleeves
