Hydraulics
>
Oil Coolers
>
Offline Forced Air Oil Coolers

COOL-LINE Oil Cooler, AC Motor, 85.9HP Heat Removed

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Forced Air Oil Cooler, AC Motor With Pump, HP Heat Removed 85.9, Filter Type Spin-On, Microns 9, Displacement 4.88 cu.in., Pump RPM 1750, GPM @ 1750 RPM 36.5, 230/460V, Motor Amps Fan-13.2/6.6 Pump - 19.6/9.8, Motor HP Fan - 5 Pump - 7.5, Inlet Port Size Code 61, 2 In. Flange, Outlet Port Size SAE #20, 97 Decibels, Motor Housing Material Steel, Pump Material Steel/Aluminum, Heat Exchanger Material Aluminum, Fan Guard Material Steel, Fan Blade Material Nylon, Finish Black, Overall Height 37.6 In.

Grainger Item #	6PKU7
Price (ea.)	$8,668.00
Brand	COOL-LINE
Mfr. Model #	AP130-8051
UNSPSC #	26101613
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	551.0
Availability	Typically in Stock
Catalog Page No.	3893
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $999.00 each.
Price shown may not reflect your price. Sign in or register.

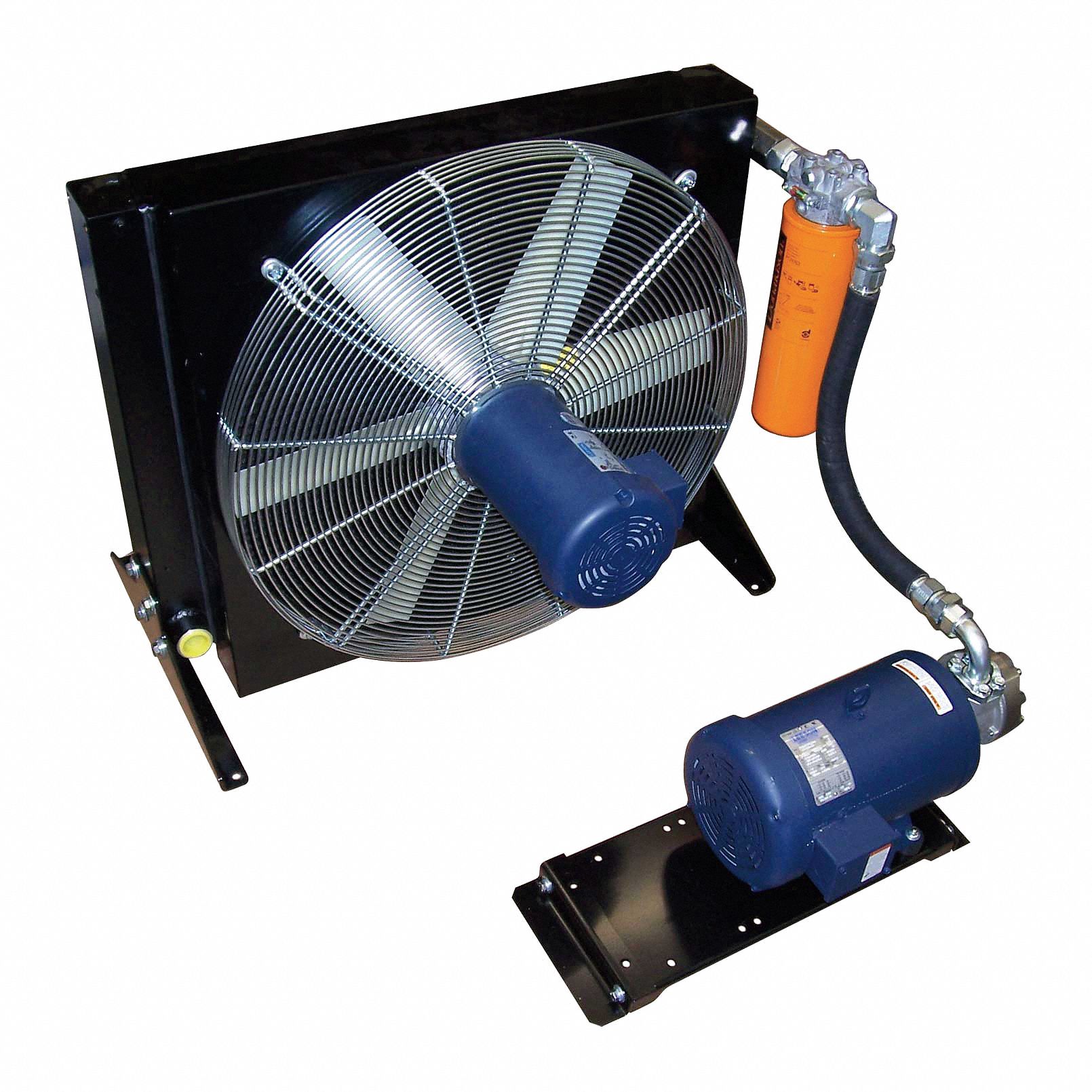

Oil Cooler, AC Motor, 85.9HP Heat Removed

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Forced Air Oil Cooler
Type		AC Motor With Pump
HP Heat Removed		85.9
Filter Type		Spin-On
Microns		9
Displacement		4.88 cu.-in.
Pump RPM		1750
GPM @ 1750 RPM		36.5
Voltage		230/460
Motor Amps		Fan - 13.2/6.6 Pump - 19.6/9.8
Motor HP		Fan - 5 Pump - 7.5
Inlet Port Size		Code 61, 2" Flange
Outlet Port Size		SAE #20
Decibels		97
Motor Housing Material		Steel
Pump Material		Steel/Aluminum
Heat Exchanger Material		Aluminum
Fan Guard Material		Steel
Fan Blade Material		Nylon
Finish		Black
Overall Height		37.6"
Overall Width		40.9"
Overall Depth		50.7"
Includes		Mounting Feet
