Hydraulics
>
Oil Coolers
>
Offline Forced Air Oil Coolers

COOL-LINE Oil Cooler, AC Motor, 46.8HP Heat Removed

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Forced Air Oil Cooler, AC Motor With Pump, HP Heat Removed 46.8, Filter Type Spin-On, Microns 9, Displacement 4.88 cu.-in., Pump RPM 1750, GPM @ 1750 RPM 36.5, 230/460V, Motor Amps Fan- 6.2/3.1 Pump -19.6/9.8, Motor HP Fan - 2 Pump - 7.5, Inlet Port Size Code 61, 2 In. Flange, Outlet Port Size SAE #20, 90 Decibels, Motor Housing Material Steel, Pump Material Steel/Aluminum, Heat Exchanger Material Aluminum, Fan Guard Material Steel, Fan Blade Material Nylon, Finish Black, Overall Height 26.3 In.

Grainger Item #	6PKU4
Price (ea.)	$4,898.00
Brand	COOL-LINE
Mfr. Model #	AP55-8051
UNSPSC #	26101613
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	351.0
Availability	Typically in Stock
Catalog Page No.	3893
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

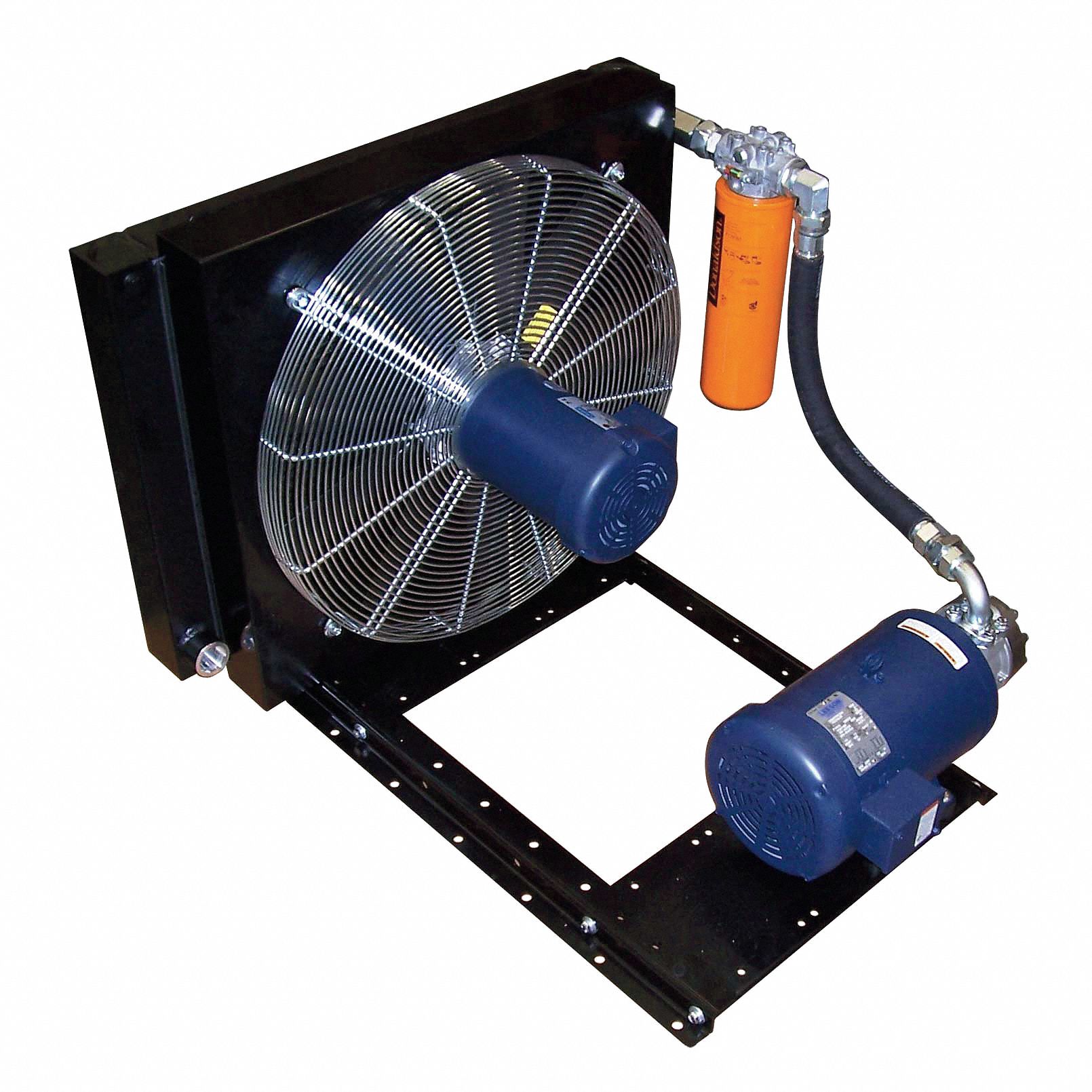

Oil Cooler, AC Motor, 46.8HP Heat Removed

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Forced Air Oil Cooler
Type		AC Motor With Pump
HP Heat Removed		46.8
Filter Type		Spin-On
Microns		9
Displacement		4.88 cu.-in.
Pump RPM		1750
GPM @ 1750 RPM		36.5
Voltage		230/460
Motor Amps		Fan - 6.2/3.1 Pump -19.6/9.8
Motor HP		Fan - 2 Pump - 7.5
Inlet Port Size		Code 61, 2" Flange
Outlet Port Size		SAE #20
Decibels		90
Motor Housing Material		Steel
Pump Material		Steel/Aluminum
Heat Exchanger Material		Aluminum
Fan Guard Material		Steel
Fan Blade Material		Nylon
Finish		Black
Overall Height		26.3"
Overall Width		32.3"
Overall Depth		38"
Includes		Mounting Feet
