COOL-LINE Oil Cooler, AC Motor, 23.0HP Heat Removed

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Forced Air Oil Cooler, AC Motor With Pump, HP Heat Removed 23.0, Filter Type Spin-On, Microns 9, Displacement 2.44 cu.-in., Pump RPM 1750, GPM @ 1750 RPM 18.2, 230/460V, Motor Amps Fan/Pump - 8.6/4.3, Motor HP Fan/Pump - 3, Inlet Port Size Code 61, 1-1/2 In. Flange, Outlet Port Size SAE #16, 85 Decibels, Motor Housing Material Steel, Pump Material Steel/Aluminum, Heat Exchanger Material Aluminum, Fan Guard Material Steel, Fan Blade Material Polypropylene, Finish Black, Overall Height 23.4 In.

Grainger Item #	6PKU3
Price (ea.)	$3,229.00
Brand	COOL-LINE
Mfr. Model #	AP30-4041
UNSPSC #	26101613
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	200.0
Availability	Typically in Stock
Catalog Page No.	3893
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

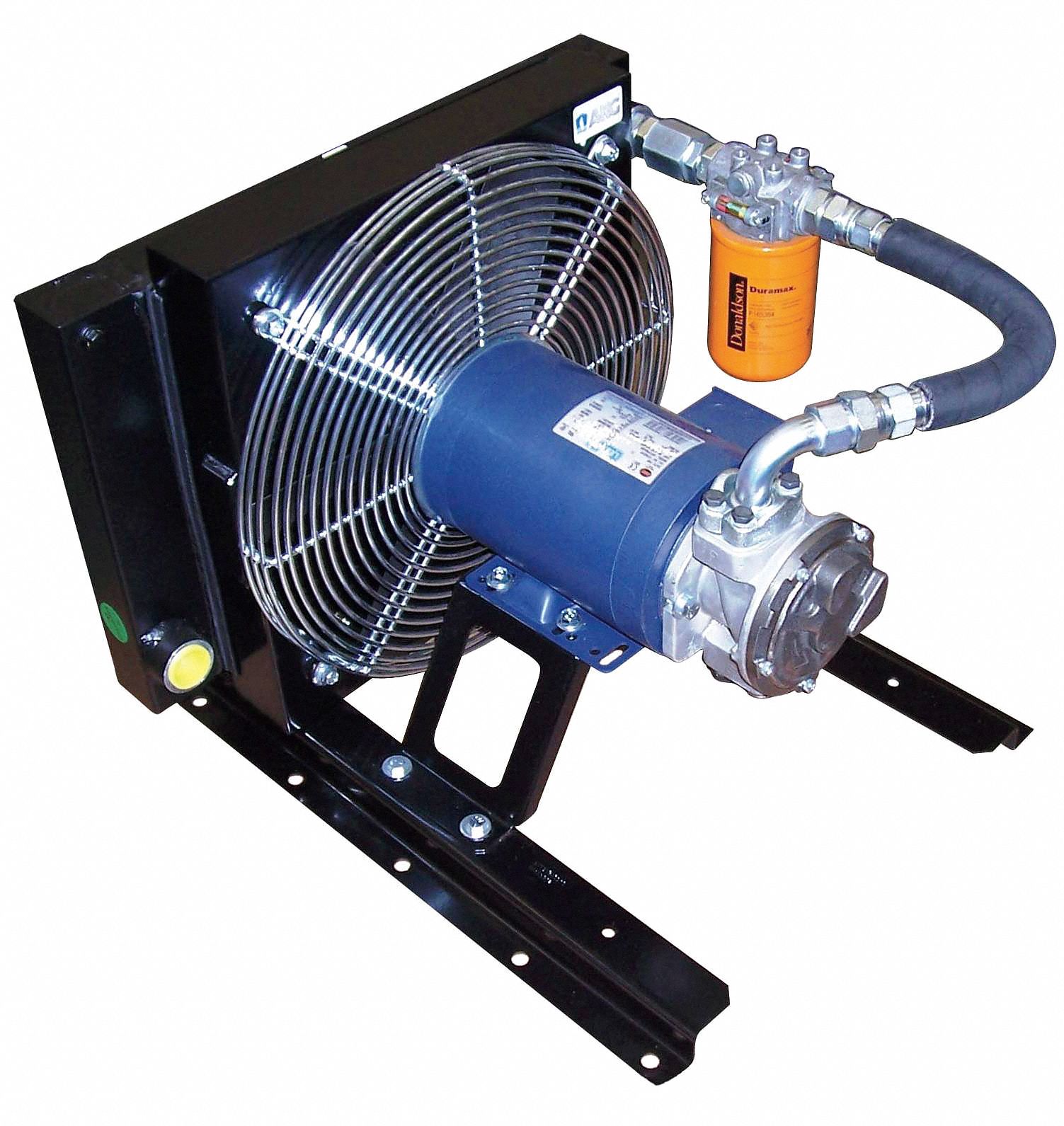

Oil Cooler, AC Motor, 23.0HP Heat Removed

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Forced Air Oil Cooler
Type		AC Motor With Pump
HP Heat Removed		23.0
Filter Type		Spin-On
Microns		9
Displacement		2.44 cu.-in.
Pump RPM		1750
GPM @ 1750 RPM		18.2
Voltage		230/460
Motor Amps		Fan/Pump - 8.6/4.3
Motor HP		Fan/Pump - 3
Inlet Port Size		Code 61, 1-1/2" Flange
Outlet Port Size		SAE #16
Decibels		85
Motor Housing Material		Steel
Pump Material		Steel/Aluminum
Heat Exchanger Material		Aluminum
Fan Guard Material		Steel
Fan Blade Material		Polypropylene
Finish		Black
Overall Height		23.4"
Overall Width		27.6"
Overall Depth		24"
Includes		Mounting Feet
