Hydraulics
>
Oil Coolers
>
Offline Forced Air Oil Coolers

COOL-LINE Oil Cooler, AC Motor, 14.1HP Heat Removed

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Forced Air Oil Cooler, AC Motor With Pump, HP Heat Removed 14.1, Filter Type Spin-On, Microns 9, Displacement 1.22 cu.-in., Pump RPM 1750, GPM @ 1750 RPM 8.9, 230/460V, Motor Amps Fan/Pump -8.6/4.3, Motor HP Fan/Pump - 3, Inlet Port Size Code 61, 1-1/2 In. Flange, Outlet Port Size SAE #16, 83 Decibels, Motor Housing Material Steel, Pump Material Steel/Aluminum, Heat Exchanger Material Aluminum, Fan Guard Material Steel, Fan Blade Material Polypropylene, Finish Black, Overall Height 18.9 In.

Grainger Item #	6PKU0
Price (ea.)	$2,619.00
Brand	COOL-LINE
Mfr. Model #	AP20-2041
UNSPSC #	26101613
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	180.0
Availability	Typically in Stock
Catalog Page No.	3893
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

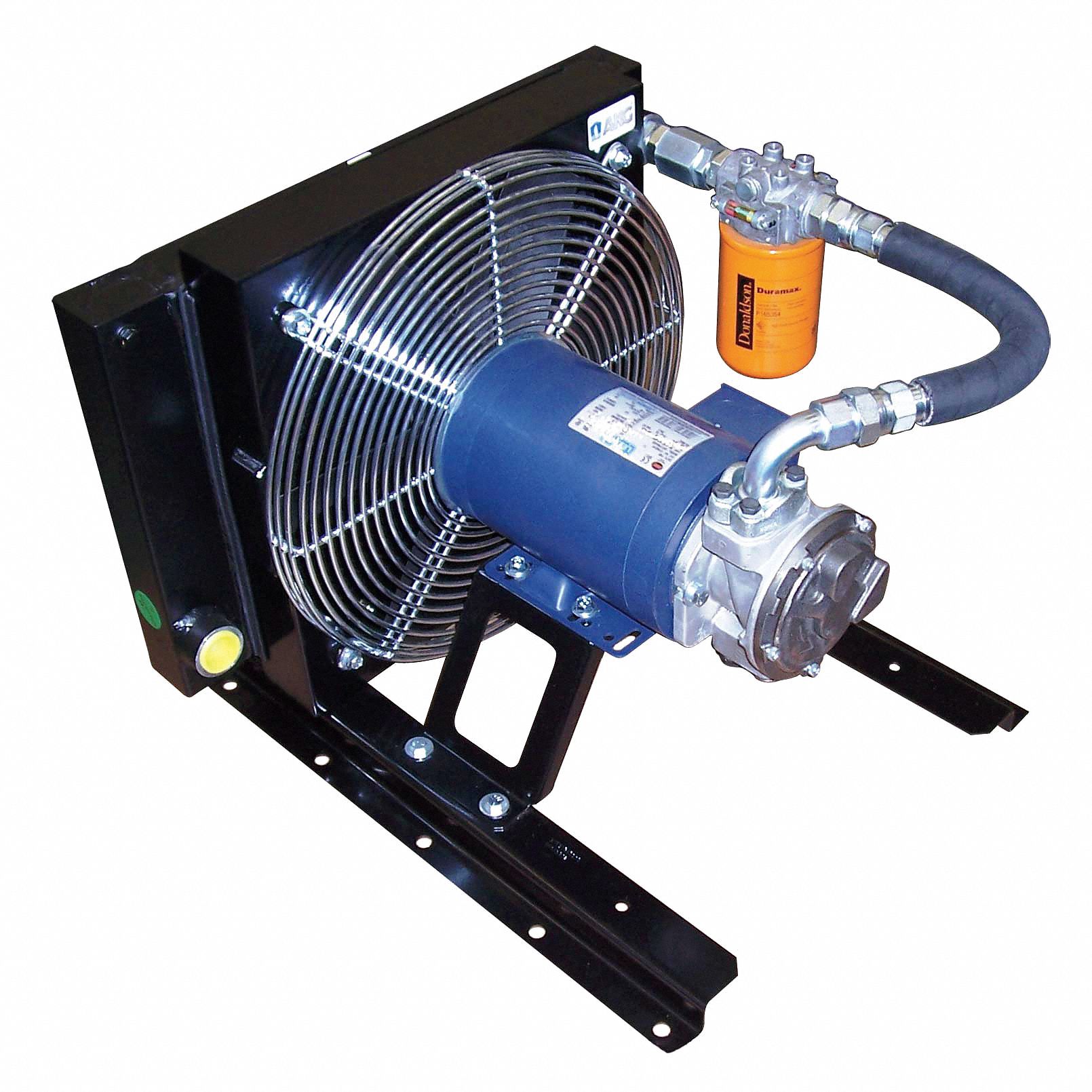

Oil Cooler, AC Motor, 14.1HP Heat Removed

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Forced Air Oil Cooler
Type		AC Motor With Pump
HP Heat Removed		14.1
Filter Type		Spin-On
Microns		9
Displacement		1.22 cu.-in.
Pump RPM		1750
GPM @ 1750 RPM		8.9
Voltage		230/460
Motor Amps		Fan/Pump - 8.6/4.3
Motor HP		Fan/Pump - 3
Inlet Port Size		Code 61, 1-1/2" Flange
Outlet Port Size		SAE #16
Decibels		83
Motor Housing Material		Steel
Pump Material		Steel/Aluminum
Heat Exchanger Material		Aluminum
Fan Guard Material		Steel
Fan Blade Material		Polypropylene
Finish		Black
Overall Height		18.9"
Overall Width		23.6"
Overall Depth		24"
Includes		Mounting Feet
