COOL-LINE Oil Cooler, w/Hydraulic Motor, 20-200 GPM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Forced Air Oil Cooler, Hydraulic Motor, Coolant Flow Range 20 to 200 GPM, Coolant HP Heat Removed 300, Coolant Max Pressure 250 PSI, Coolant Port Size 2 In SAE 4 Bolt Flange, Hydraulic Motor GPM 16.4, Oil Port Size #16 SAE, Min Oil Pressure 725 PSI, Max Oil Pressure 3500 PSI, Hydraulic Motor Displacement 1.950 Cu In/Rev, Motor Type Gear, Max Temp 250, Aluminum Heat Exchanger Material, Black Painted Finish, Height 38.4 In, Width 43.62 In, Depth 19.88 In, Includes Mounting Feet

Grainger Item #	4UJC9
Price (ea.)	$6,047.00
Brand	COOL-LINE
Mfr. Model #	HR300-0195
UNSPSC #	40101702
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	500.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	3893
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $599.00 each.
Price shown may not reflect your price. Sign in or register.

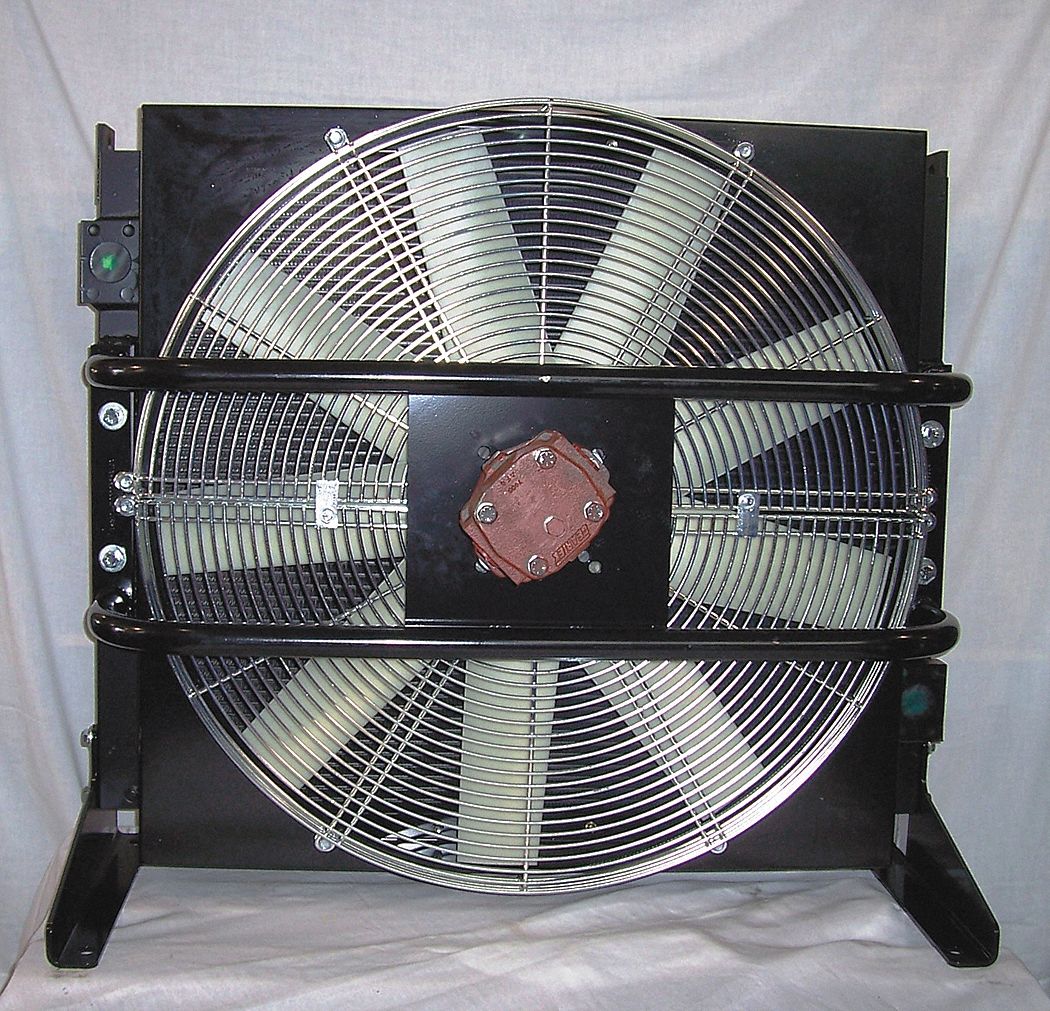

Oil Cooler, w/Hydraulic Motor, 20-200 GPM

Enlarge Image

Item		Forced Air Oil Cooler
Type		Hydraulic Motor
Coolant Flow Range (gpm)		20 to 200
Coolant HP Heat Removed		300
Coolant Max. Pressure (psi)		250
Coolant Port Size		2" SAE 4 Bolt Flange
Hydraulic Motor GPM		16.4
Oil Port Size (SAE)		#16
Min. Oil Pressure (PSI)		725
Max. Oil Pressure (PSI)		3500
Hydraulic Motor Displacement (cu. in./Rev)		1.950
Motor Type		Gear
Max. Temp.		250
Heat Exchanger Material		Aluminum
Fan Blade Material		Polypropylene
Fan Guard Material		Steel
Finish		Black Painted
Height (In.)		38.4
Width (In.)		43.62
Depth (In.)		19.88
Includes		Mounting Feet
