Hydraulics
>
Oil Coolers
>
Hydraulic Motor Oil Coolers

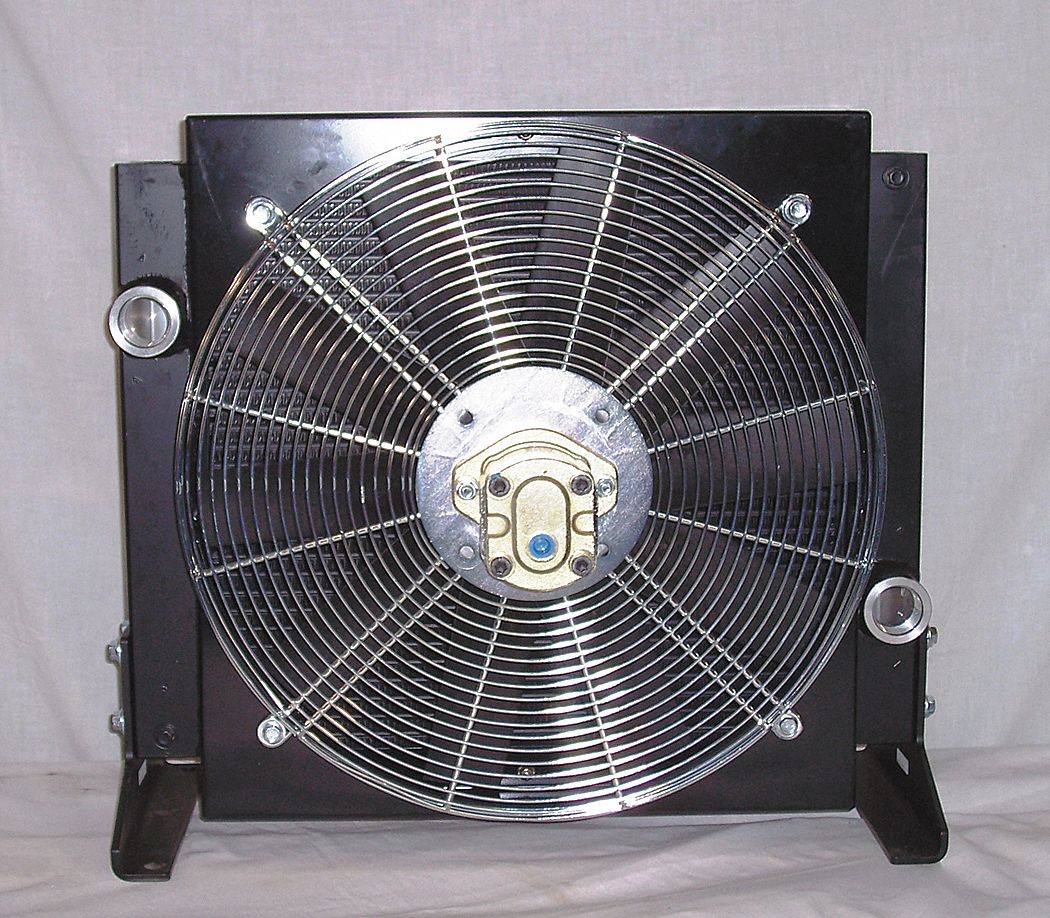

COOL-LINE Oil Cooler, w/Hydraulic Motor, 8-80 GPM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Forced Air Oil Cooler, Hydraulic Motor, Coolant Flow Range 8 to 80 GPM, Coolant HP Heat Removed 100, Coolant Max Pressure 377 PSI, Coolant Port Size SAE #20, Hydraulic Motor GPM 4.2, Oil Port Size #12 SAE, Min Oil Pressure 870 PSI, Max Oil Pressure 3500 PSI, Hydraulic Motor Displacement 0.500 Cu In/Rev, Motor Type Gear, Max Temp 250, Aluminum Heat Exchanger Material, Black Painted Finish, Height 25.89 In, Width 30.31 In, Depth 12.2 In, Includes Mounting Feet

Grainger Item #	4UJC5
Price (ea.)	$1,968.00
Brand	COOL-LINE
Mfr. Model #	HR100-0050
UNSPSC #	40101702
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	195.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	3893
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Forced Air Oil Cooler
Type		Hydraulic Motor
Coolant Flow Range (gpm)		8 to 80
Coolant HP Heat Removed		100
Coolant Max. Pressure (psi)		377
Coolant Port Size		SAE #20
Hydraulic Motor GPM		4.2
Oil Port Size (SAE)		#12
Min. Oil Pressure (PSI)		870
Max. Oil Pressure (PSI)		3500
Hydraulic Motor Displacement (cu. in./Rev)		0.500
Motor Type		Gear
Max. Temp.		250
Heat Exchanger Material		Aluminum
Fan Blade Material		Polypropylene
Fan Guard Material		Steel
Finish		Black Painted
Height (In.)		25.89
Width (In.)		30.31
Depth (In.)		12.2
Includes		Mounting Feet
