Hydraulics
>
Oil Coolers
>
Hydraulic Motor Oil Coolers

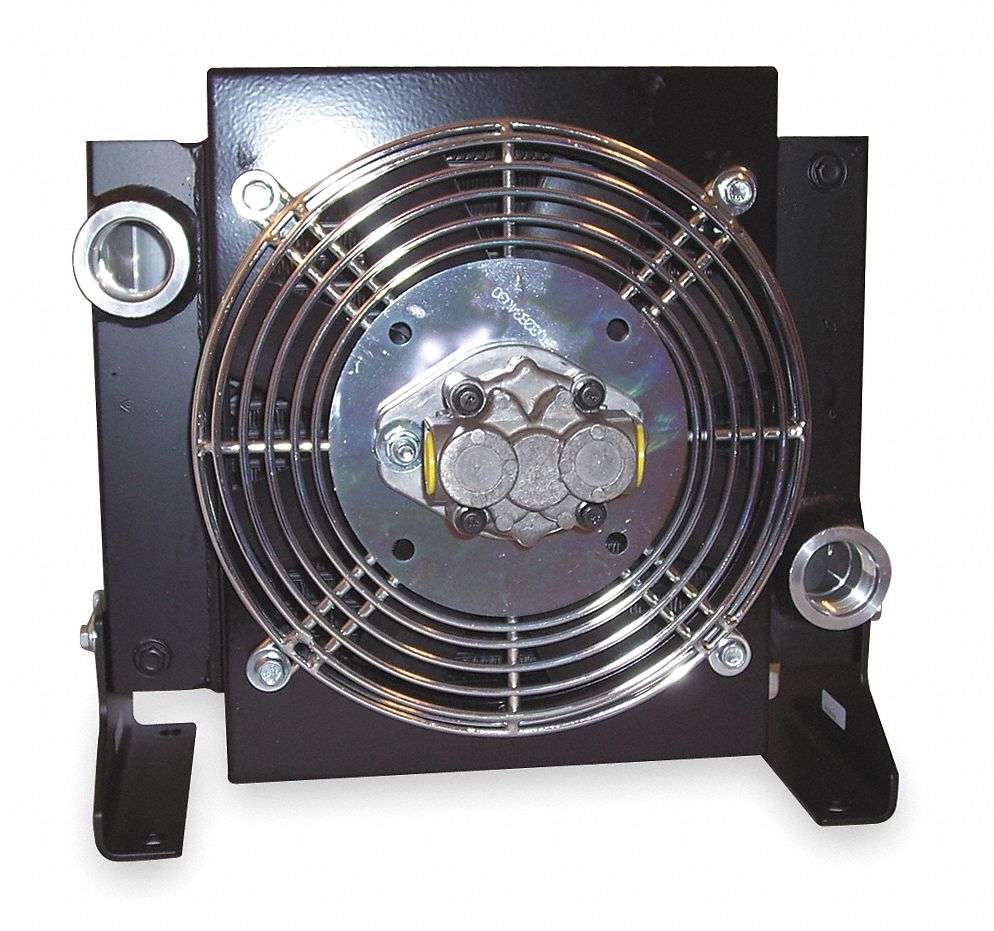

COOL-LINE Oil Cooler, w/Hydraulic Motor, 8-80 GPM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Forced Air Oil Cooler, Hydraulic Motor, Coolant Flow Range 8 to 80 GPM, Coolant HP Heat Removed 25, Coolant Max Pressure 377 PSI, Coolant Port Size SAE #16, Hydraulic Motor GPM 3.6, Oil Port Size #8 SAE, Min Oil Pressure 500 PSI, Max Oil Pressure 2000 PSI, Hydraulic Motor Displacement 0.218 Cu In/Rev, Motor Type Gear, Max Temp 250, Aluminum Heat Exchanger Material, Black Painted Finish, Height 15.91 In, Width 16.54 In, Depth 11.2 In, Includes Mounting Feet

Grainger Item #	4UJC1
Price (ea.)	$931.00
Brand	COOL-LINE
Mfr. Model #	HR25-0218
UNSPSC #	40101702
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	45.5
Availability	Typically in Stock
Catalog Page No.	3893
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Forced Air Oil Cooler
Type		Hydraulic Motor
Coolant Flow Range (gpm)		8 to 80
Coolant HP Heat Removed		25
Coolant Max. Pressure (psi)		377
Coolant Port Size		SAE #16
Hydraulic Motor GPM		3.6
Oil Port Size (SAE)		#8
Min. Oil Pressure (PSI)		500
Max. Oil Pressure (PSI)		2000
Hydraulic Motor Displacement (cu. in./Rev)		0.218
Motor Type		Gear
Max. Temp.		250
Heat Exchanger Material		Aluminum
Fan Blade Material		Polypropylene
Fan Guard Material		Steel
Finish		Black Painted
Height (In.)		15.91
Width (In.)		16.54
Depth (In.)		11.2
Includes		Mounting Feet
