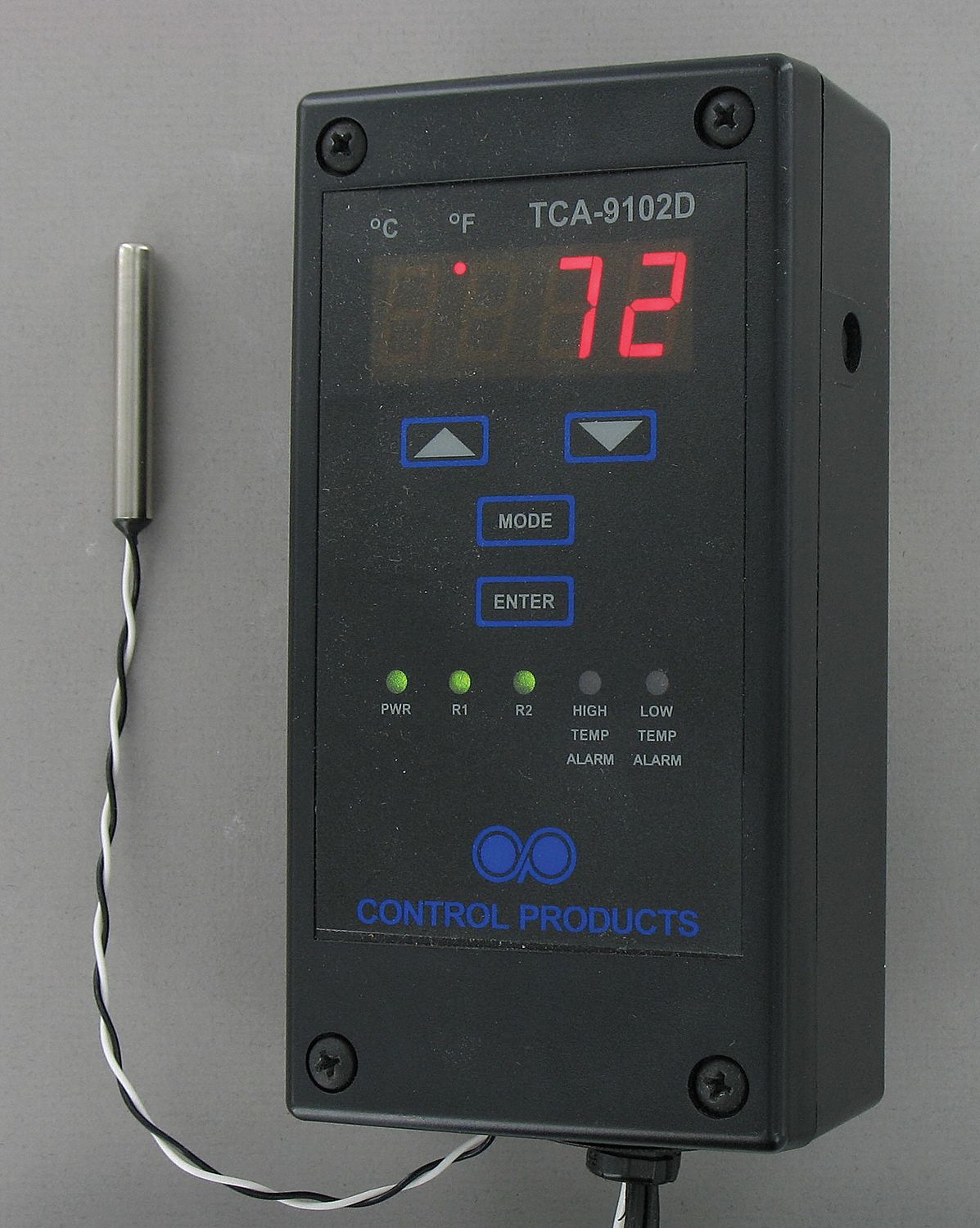

CONTROL PRODUCTS Dual Stage Controller, 24 VAC/VDC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Temperature Controller with Temperature Alarm, Digital, Switch Type SPST, Switch Action Open/Close On Rise, Number of Switches 2, Control Range (F) -40-300, Differential (Deg. F) +/- 30, Height (In.) 6, Width (In.) 3-1/8, Depth (In.) 2, Sensor Type PTC, Sensing Bulb Dia. (In.) 1/4, Sensing Bulb Length (In.) 4, Color Black, Display LED, Input Voltage 12/24 VAC & 24 VDC, Full Load Amps @ 120V 5, Wall Mount, Number of Relay Inputs 2, Number of Stages 2, Includes Sensor, Agency Compliance UL

Grainger Item #	6CJN1
Price (ea.)	$137.65
Brand	CONTROL PRODUCTS
Mfr. Model #	TCA-9102D-LV
UNSPSC #	41112209
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.95
Availability	Typically in Stock
Catalog Page No.	4560
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Temperature Controller with Temperature Alarm
Type		Digital
Switch Type		SPST
Switch Action		Open/Close On Rise
Number of Switches		2
Control Range (F)		-40-300
Differential (Deg. F)		+/- 30
Height (In.)		6
Width (In.)		3-1/8
Depth (In.)		2
Overall Length		6
Temp. Sensitivity (Deg. F)		+/- 2
Sensor Type		PTC
Sensing Bulb Dia. (In.)		1/4
Sensing Bulb Length (In.)		4
Characteristics		Dual Stage 2 -20 Amp Relays Temperature Controller With Alarm
For Use With		Heating, Cooling, Refrigeration
Color		Black
Display		LED
Enclosure Type		NEMA 1
Input Voltage		12/24 VAC & 24 VDC
Voltage Range		11-27VAC and 24-26VDC
Switch Ratings @ 120VDC (A)		20
Full Load Amps @ 120V		5
Full Load Amps @ 240VAC		5
Locked Rotor Amps @ 120V		15
Locked Rotor Amps @ 240V		15
Full Load Amps		5
Contact Rating Resistive @ 120V (A)		20
Contact Rating Resistive @ 240V (A)		20
Pilot Duty Contacts (VA)		720 VA @ 240 V, 600 VA @ 120 V
Mounting		Wall Mount
Number of Relay Inputs		2
Number of Relay Outputs		2
Number of Stages		2
Includes		Sensor with 72" Cable
Agency Compliance		UL
