Material Handling
>
Hoist and Rigging
>
Electric Hoists

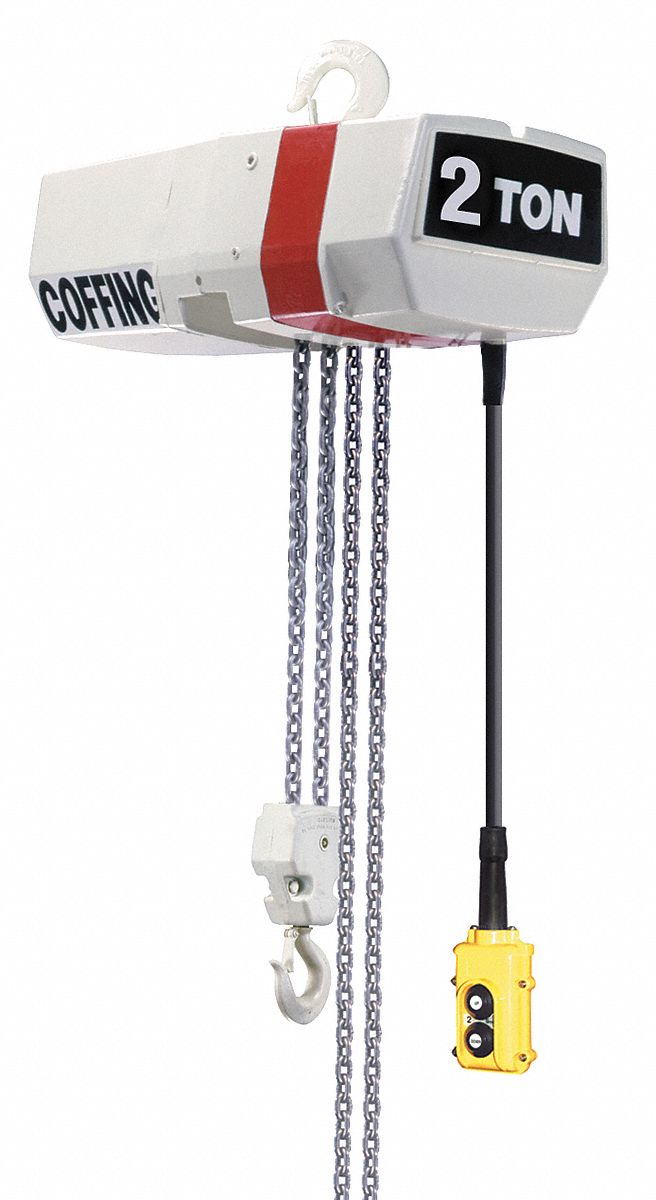

COFFING Elec Chain Hoist, 2T, 8fpm, 460V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Electric Chain Hoist, Capacity 4000 lb., Lift 10 ft.Lift Speed 8 fpm, Motor HP 1, Voltage 460, 3 Phase, Min. Between Hooks 19-3/8 In., 4.2/2.1 Amps @ Low Volts, Classification H3, Housing Depth 8 In., Housing Length 23-3/8 In., Housing Width 11-5/8 In., Headroom 18-15/16 In., Reeving 2, Brake Disc Motor, Clutch Overload Limiting, Control NEMA 3R Pushbutton, Control Cord 6 ft., White, Finish PaintedLubrication Oil Bath Gear, Thermal Protection No, Beam Height 6 to 18 In.

Grainger Item #	4JYJ2
Price (ea.)	$5,781.00
Brand	COFFING
Mfr. Model #	10722W
UNSPSC #	24101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	140.0
Availability	Item ships within 14 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $599.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Electric Chain Hoist
Capacity		4000 lb.
Lift		10 ft.
Lift Speed		8 fpm
Motor HP		1
Voltage		460
Phase		3
Min. Between Hooks		19-3/8"
Amps @ Low Volts		4.2/2.1
Classification		H3
Housing Depth		8"
Housing Length		23-3/8"
Housing Width		11-5/8"
Headroom		18-15/16"
Reeving		2
Brake		Disc Motor
Clutch		Overload Limiting
Control		NEMA 3R Pushbutton
Control Cord		6 ft.
Color		White
Finish		Painted
Lubrication		Oil Bath Gear
Thermal Protection		No
Beam Height		6 to 18"
Flange Width		3-5/16 to 7"
Minimum Radius Curve		48"
Standards		Complies with ASME/ANSI B30.16
Includes		Hooks w/Safety Latches
