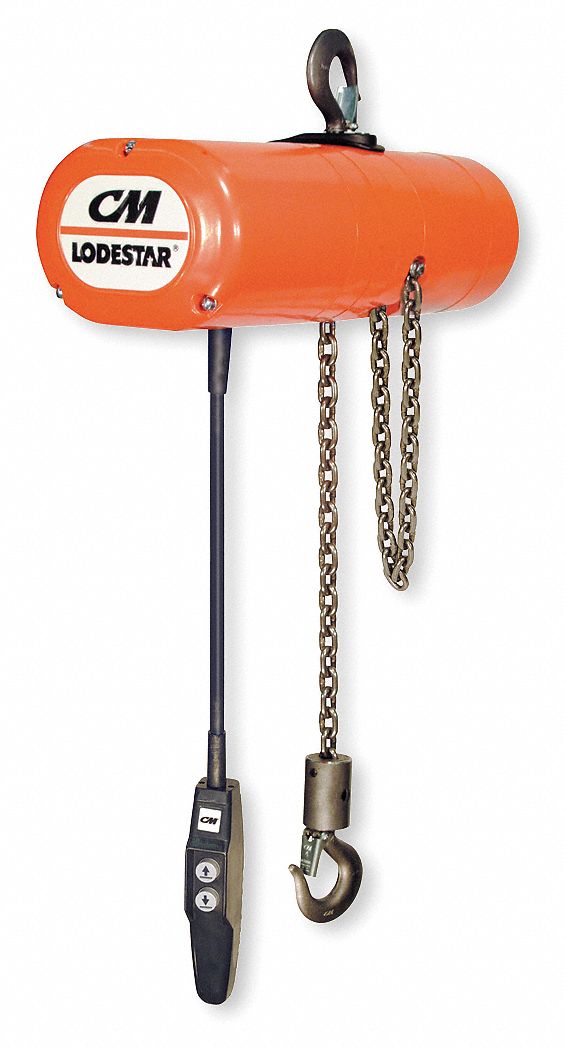

CM LODESTAR Electric Chain Hoist, 0 to 5.5 fpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Electric Chain Hoist, Capacity 6000 lb., Lift 20 ft., Number of Speeds 2, Lift Speed 0 to 5.5 fpm, Motor HP 1, Voltage 460, 3 Phase, Min. Between Hooks 29-9/16 In., 4.9 Amps @ Low Volts, Classification H4, Housing Depth 7-5/8 In., Housing Length 18-3/4 In., Housing Width 7-13/16 In.Brake Electric Disc and RegenerativeControl NEMA 4X Push Button Pendant, Control Cord 16 ft., Orange, Finish Powder PaintLubrication Lifetime Lubricated, Thermal Protection YesStandards ASME/ANSI B30.16, B-10

Grainger Item #	2YJ60
Price (ea.)	$6,316.00
Brand	CM LODESTAR
Mfr. Model #	9529/9559 VFD - 20
UNSPSC #	24101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	200.0
Availability	Item ships within 21 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $599.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Electric Chain Hoist
Capacity		6000 lb.
Lift		20 ft.
Number of Speeds		2
Lift Speed		0 to 5.5 fpm
Motor HP		1
Voltage		460
Phase		3
Min. Between Hooks		29-9/16"
Amps @ Low Volts		4.9
Classification		H4
Housing Depth		7-5/8"
Housing Length		18-3/4"
Housing Width		7-13/16"
Brake		Electric Disc and Regenerative
Control		NEMA 4X Push Button Pendant
Control Cord		16 ft.
Color		Orange
Finish		Powder Paint
Lubrication		Lifetime Lubricated
Thermal Protection		Yes
Standards		ASME/ANSI B30.16, B-10
