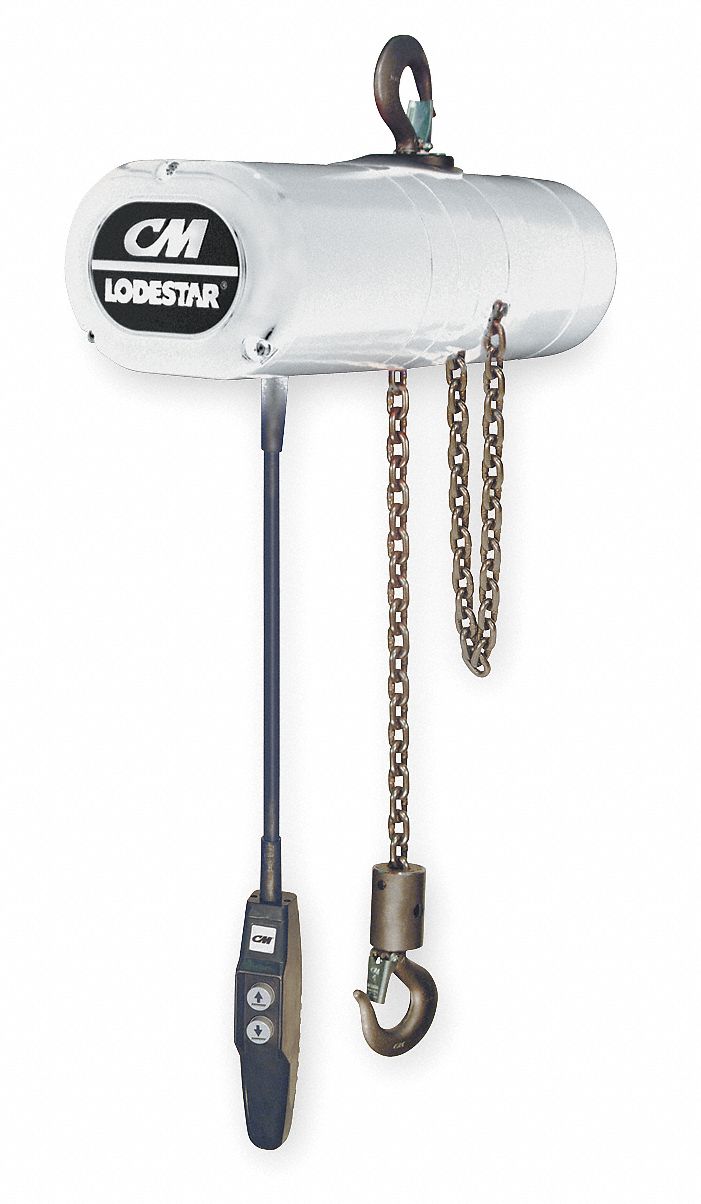

CM LODESTAR Electric Chain Hoist, Lift 10 ft., 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Electric Chain Hoist, Capacity 500 lb., Lift 10 ft., Number of Speeds 1, Lift Speed 16 fpm, Motor HP 0.25, Voltage 115, 1 Phase, Min. Between Hooks 16-1/4 In., 6.3 Amps @ Low Volts, Classification H4, Housing Depth 6-1/8 In., Housing Length 18-3/4 In., Housing Width 8-3/4 In., Headroom 16-7/8 In.Brake Multiple Disc MotorControl NEMA 4X Push Button Pendant, Control Cord 6 ft., White, Finish Epoxy PaintLubrication Non-Oxidizing Grease, Thermal Protection NoStandards ASME/ANSI B30.16, B-10

Grainger Item #	2YE29
Price (ea.)	$4,024.00
Brand	CM LODESTAR
Mfr. Model #	2722/2788CR10
UNSPSC #	24101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	65.0
Availability	Item ships within 21 business days from supplier
Catalog Page No.	1414
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Electric Chain Hoist
Capacity		500 lb.
Lift		10 ft.
Number of Speeds		1
Lift Speed		16 fpm
Motor HP		0.25
Voltage		115
Phase		1
Min. Between Hooks		16-1/4"
Amps @ Low Volts		6.3
Classification		H4
Housing Depth		6-1/8"
Housing Length		18-3/4"
Housing Width		8-3/4"
Headroom		16-7/8"
Brake		Multiple Disc Motor
Control		NEMA 4X Push Button Pendant
Control Cord		6 ft.
Color		White
Finish		Epoxy Paint
Lubrication		Non-Oxidizing Grease
Thermal Protection		No
Standards		ASME/ANSI B30.16, B-10
