CHICAGO-LATROBE Taper Shank Drill, 13/16, #3MT, Blk Oxide

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Taper Shank Drill, Standard, General Purpose Grade, High Speed Steel, Black Oxide Finish, Conventional Point, Drill Point 118 Deg, Fractional Size 13/16 In, Decimal Equivalent 0.8125, Flute Length 6 1/8 In, Overall Length 10 3/4 In, Morse Taper #3, Taper per Feet 0.6023, Taper per Inch 0.0501, Shank Dia 0.938 In, Shank Length 3.87 In, Taper Length 3.69 In, Tang Length 0.56 In, Tang Width 0.31 In, Tang Radius 0.28 In

Grainger Item #	1N815
Price (ea.)	$83.20
Brand	CHICAGO-LATROBE
Mfr. Model #	53152
UNSPSC #	23171609
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.2
Availability	Typically in Stock
Catalog Page No.	3520
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

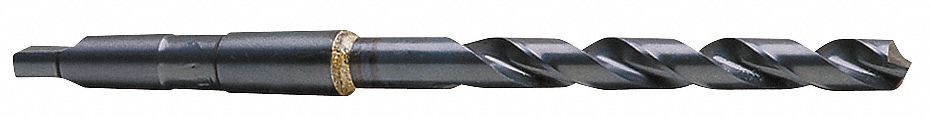

Taper Shank Drill, 13/16, #3MT, Blk Oxide

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Taper Shank Drill
Type		Standard
List Number		110
Grade		General Purpose
Material		High Speed Steel
Finish		Black Oxide
Point Type		Conventional Point
Drill Point (Deg.)		118
Fractional Size (In.)		13/16
Decimal Equivalent		0.8125
Flute Length (In.)		6-1/8
Overall Length (In.)		10-3/4
Morse Taper		#3
Taper per Feet		0.6023
Taper per Inch		0.0501
Shank Dia. (In.)		0.938
Shank Length (In.)		3.87
Taper Length (In.)		3.69
Tang Length (In.)		0.56
Tang Width (In.)		0.31
Tang Radius (In.)		0.28
Application		For Alloy, Carbon And Tool Steels And Cast Iron
