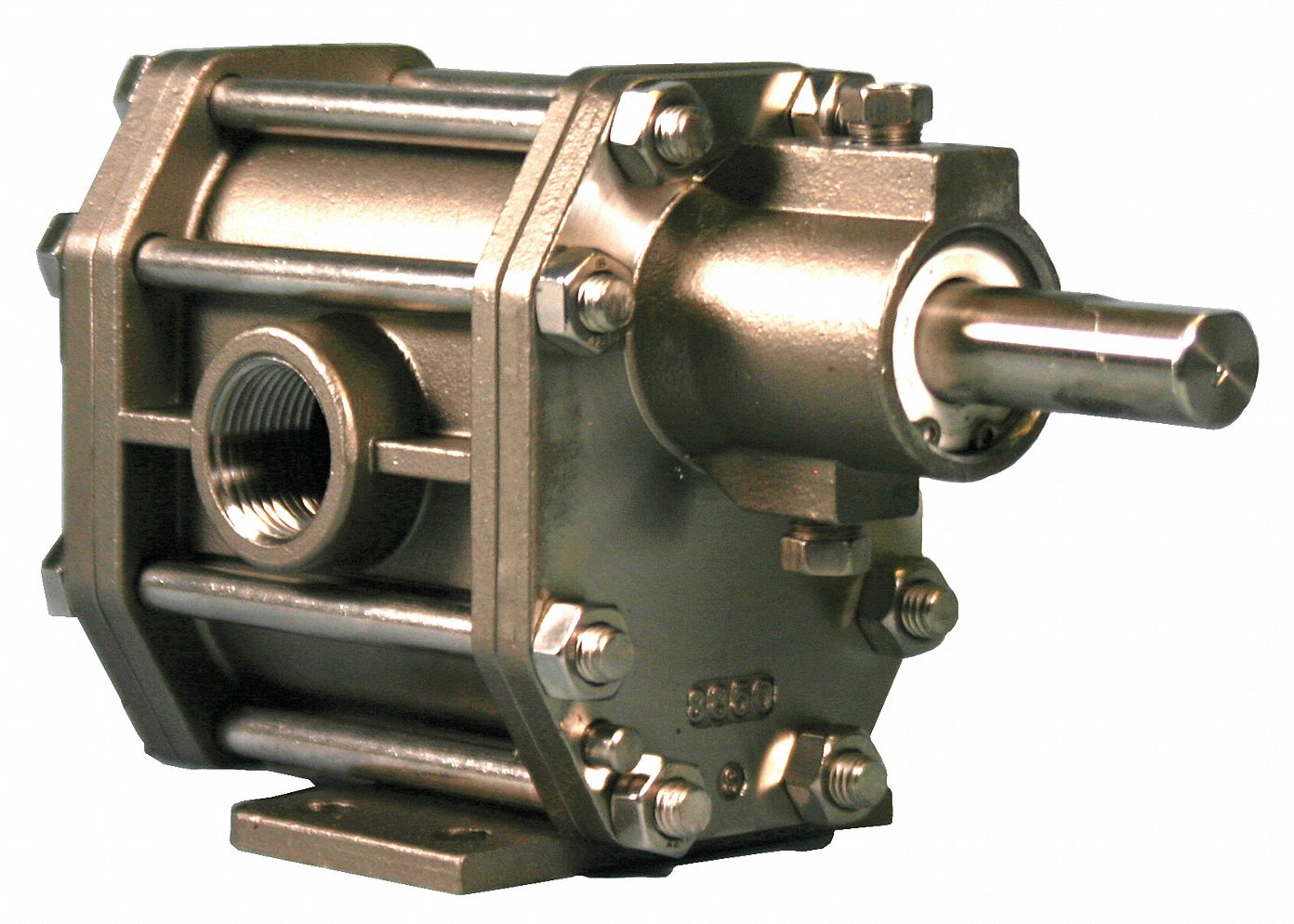

CHEMSTEEL Rotary Gear Pedestal Pump, GPM 22.4

Rotary Gear Pedestal Pump, High Temperature, Port Size 1 1/2 In., Recommended Motor HP 5, Motor Frame 184TC, GPM @ Freeflow 22.4, .40 HP @ Free Flow, Suction Lift 15 Ft., Pump RPM 1725, Max. Temp. 450 F, Max. Pressure 150 PSI, Mechanical Seal, Manufacturers Warranty 12 Months From Date Of Shipment
  • Grainger Item #6KXT2
    Price (ea.)$3,492.00
    BrandCHEMSTEEL
    Mfr. Model #S93516CA
    UNSPSC #40151521
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)13.15
    Availability Typically in Stock
    Catalog Page No.4145
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemRotary Gear Pedestal Pump
TypeHigh Temperature
Pump Body Material316 Stainless Steel
Port Size (In.)1 1/2
Recommended Motor HP5
Motor Frame184TC
GPM @ Freeflow22.4
HP @ Free Flow.40
GPM @ Freeflow @ 1725 RPM22.4
HP @ Free Flow @ 1725 RPM.40
GPM @ 20 PSI22.0
HP @ 20 PSI.83
GPM @ 25 PSI21.9
HP @ 25 PSI.94
GPM @ 40 PSI21.6
HP @ 40 PSI1.27
GPM @ 50 PSI21.4
HP @ 50 PSI1.48
GPM @ 60 PSI21.1
HP @ 60 PSI1.70
GPM @ 75 PSI20.8
HP @ 75 PSI2.02
GPM @ 80 PSI20.7
HP @ 80 PSI2.13
GPM @ 100 PSI20.3
HP @ 100 PSI2.57
GPM @ 125 PSI19.7
HP @ 125 PSI3.11
GPM @ 125 PSI @ 1725 RPM19.7
HP @ 125 PSI @ 1725 RPM3.11
Suction Lift (Ft.)15
Suction Lift (Ft.) @ 1725 RPM15
Pump RPM1725
Max. Temp. (F)450
Temp. Range-50 Degrees to 450 Degrees
Max. Pressure (PSI)150
Max. Viscosity (SSU)500
Relief ValveNo
SealMechanical
Shaft Dia. (In.).625
Shaft Height (In.)3.88
Shaft Material316 Stainless Steel
Manufacturers Warranty Length12 Months From Date Of Shipment


Other Popular Terms for this Product

  1. • Gear Pumps  (251)
  1. • Rotary Gear Pumps  (149)

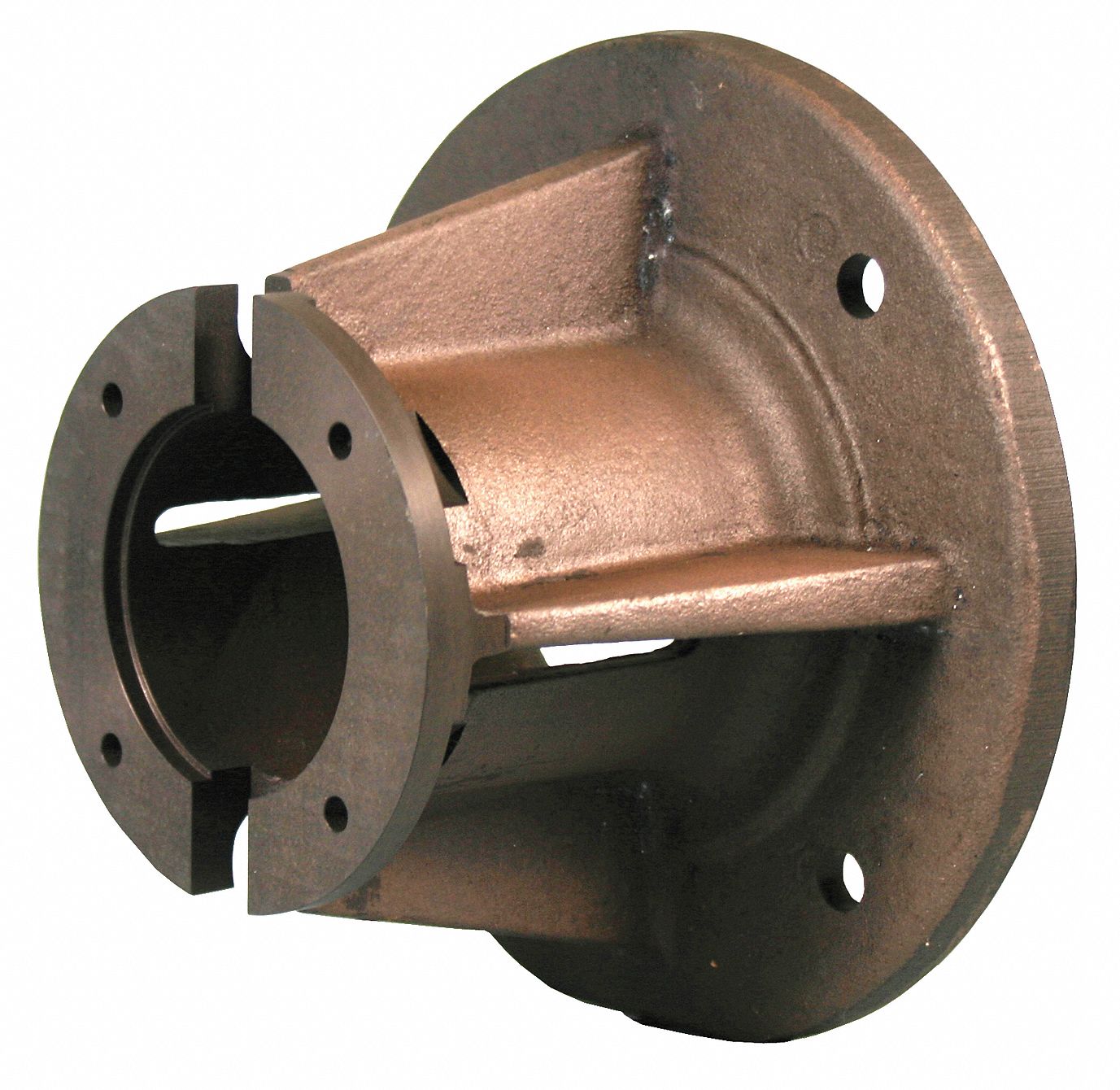

Optional Accessories

More Accessories

Brand:

CHEMSTEEL

Grainger Item #:

6KXT7

Price (ea.):

$540.00
