Pneumatics
>
Air Compressors and Vacuum Pumps
>
Air Compressor Pumps

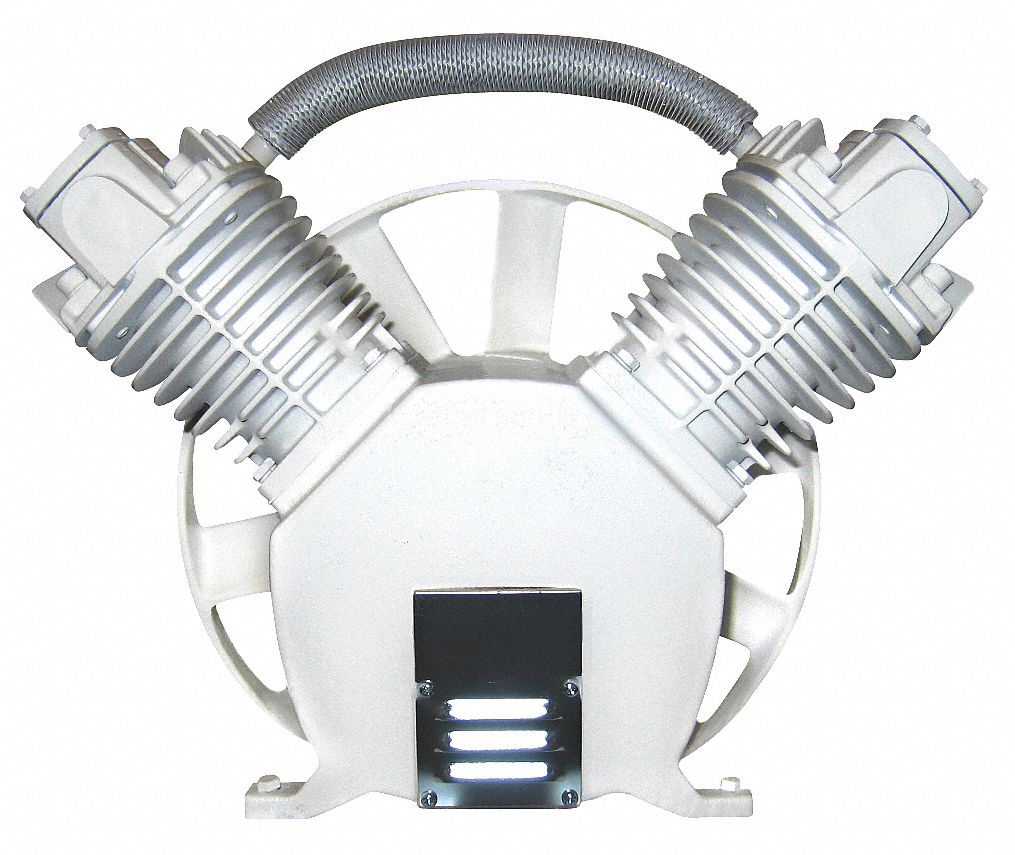

CHAMPION Air Compressor Pump, 1 Stage, Oil-less

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Compressor Pump, Number of Stages 1, Oil-less, 5 HP, 15.6 Free Air CFM @ Max. Pressure, Max. Pressure 100 psiNumber of Cylinders 2, NPT Outlet 1 In., Pump RPM 650, Rotation CW, Groove Section B, Groove Quantity 2, Flywheel Included Y, Flywheel Dia. 9-3/8 In., Sheave Size @ 1725 RPM 3-3/4 In. O.D. (3-13/32 In.PD), Bore Dia. (2) 3-15/16 In., Stroke Length 2-61/64 In., Cast Iron/Aluminum ConstructionValve Type Disc, Mounting Pattern 7/16 In., Overall Height 26 In., Overall Width 23-19/32 In.

Grainger Item #	6CJL2
Price (ea.)	$8,684.00
Brand	CHAMPION
Mfr. Model #	CHPMOA03
UNSPSC #	40151501
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	342.0
Availability	Item ships within 15 business days from supplier
Catalog Page No.	4002
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $999.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Air Compressor Pump
Number of Stages		1
Lubrication Type		Oil-less
HP		5
Free Air CFM @ Max. Pressure		15.6
Max. Pressure		100 psi
Number of Cylinders		2
NPT Outlet		1"
Pump RPM		650
Rotation		CW
Groove Section		B
Groove Quantity		2
Flywheel Included		Y
Flywheel Dia.		9-3/8"
Sheave Size @ 1725 RPM		3-3/4" O.D. (3-13/32"PD)
Bore Dia.		(2) 3-15/16"
Stroke Length		2-61/64"
Construction		Cast Iron/Aluminum
Valve Type		Disc
Mounting Pattern		7/16"
Overall Height		26"
Overall Width		23-19/32"
Overall Depth		23-11/32"
