Pneumatics
>
Air Compressors and Vacuum Pumps
>
Air Compressor Pumps

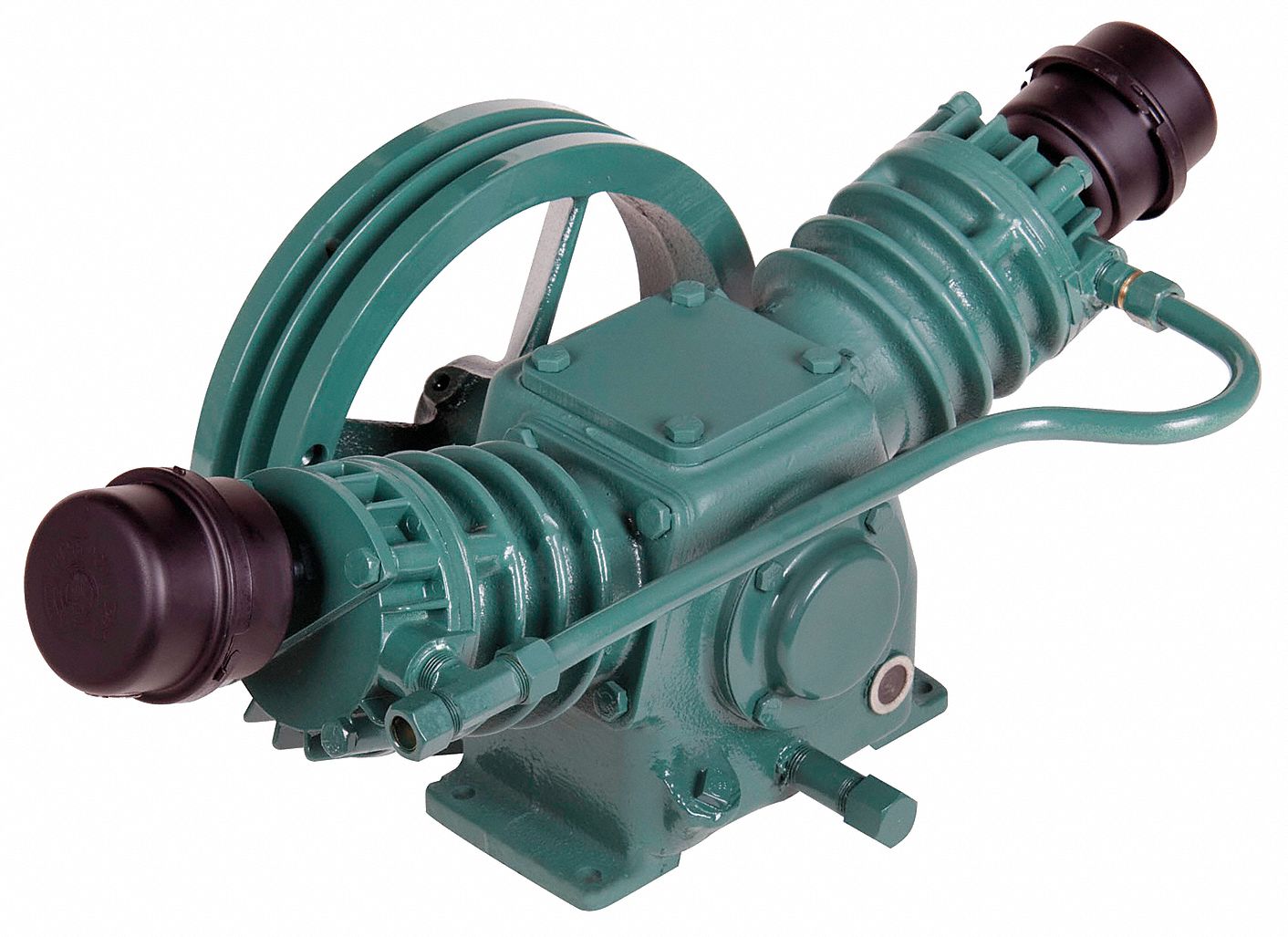

CHAMPION Air Compressor Pump, 1 Stage

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Compressor Pump, Number of Stages 1, Splash Lubricated, 1 HP, 2.9 Free Air CFM @ Max. Pressure, Max. Pressure 125 psi, Oil Capacity 16 oz., Number of Cylinders 2, NPT Outlet 3/8 In., Pump RPM 505, Rotation CCW, Groove Section A, Groove Quantity 2, Flywheel Included Y, Flywheel Dia. 12-5/8 In., Sheave Size @ 1725 RPM 3-3/4 In., Bore Dia. 2-3/8 In., Stroke Length 2 In., Cast Iron Construction, Painted Green Finish, Valve Material Swedish Steel, Valve Type Disc

Grainger Item #	5FTU2
Price (ea.)	$513.50
Brand	CHAMPION
Mfr. Model #	BVAS
UNSPSC #	40151501
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	53.3
Availability	Typically in Stock
Catalog Page No.	4002
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Compressor Pump
Number of Stages		1
Lubrication Type		Splash Lubricated
HP		1
Free Air CFM @ Max. Pressure		2.9
Max. Pressure		125 psi
Oil Capacity		16 oz.
Number of Cylinders		2
NPT Outlet		3/8"
Pump RPM		505
Rotation		CCW
Groove Section		A
Groove Quantity		2
Flywheel Included		Y
Flywheel Dia.		12-5/8"
Sheave Size @ 1725 RPM		3-3/4"
Bore Dia.		2-3/8"
Stroke Length		2"
Construction		Cast Iron
Finish		Painted Green
Valve Material		Swedish Steel
Valve Type		Disc
Mounting Pattern		4" W x 3/8" D
Overall Height		15-3/32"
Overall Width		23-7/16"
Overall Depth		10-7/16"
