Electrical
>
Distribution
>
Circuit Breakers

CHALLENGER Circuit Breaker, 1Pole, 15A, Left Hand Clip

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Circuit Breaker, Type A, AIR Rating 10kA, Circuit Breaker Type Standard, Number of Poles 1, Voltage 120/240VAC, Amps 15, Phase One, Phase Connection A, Min. Wire Size 14 AWG, Max. Wire Size 4 AWG, Length 3.35 In., Width 0.5 In., Depth 2.6 In., Terminal Connection Box Lug, For Use With Thomas & Betts Challenger Load Centers, Frame Size 125A, Standards UL

Grainger Item #	3RAL4
Price (ea.)	$34.90
Brand	CHALLENGER
Mfr. Model #	UBITBA115L
UNSPSC #	39121601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.21
Availability	Typically in Stock
Catalog Page No.	292
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Price shown may not reflect your price. Sign in or register.

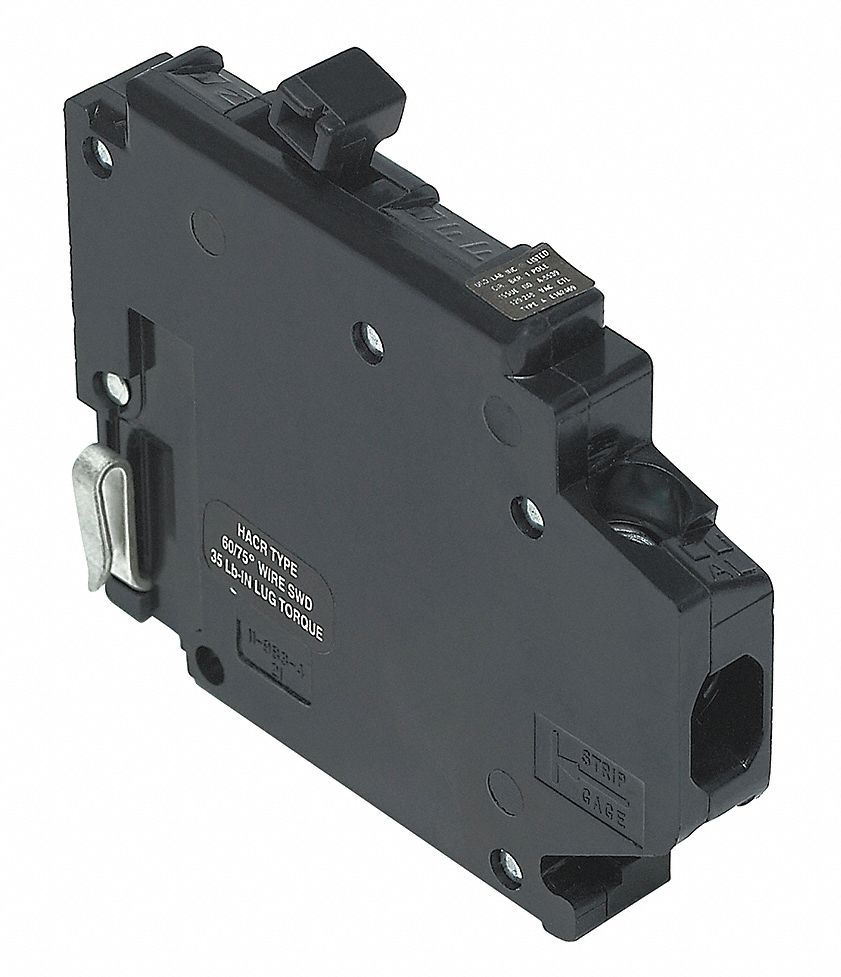

Circuit Breaker, 1Pole, 15A, Left Hand Clip

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Circuit Breaker
Type		Panelboard Mount
Circuit Breaker Type		Standard
Number of Poles		1
Amps		15
Voltage		120/240VAC
AIR Rating		10k
AIR @ 120VAC		10k
Phase		1
Phase Connection		A
Terminal Connection		Lug
Min. Wire Size (AWG)		14
Max. Wire Size (AWG)		4
Length (In.)		3.35
Width (In.)		0.50
Depth (In.)		2.60
Frame Size		125A
For Use With		Thomas & Betts Challenger Load Centers
Standards		UL
