CENTURY Water Circulator Motor, Bracket, NEMA/IEC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Water Circulator Motor, Split-Phase, Open Dripproof, 1/3 HP, 1725 Nameplate RPM, NEMA/IEC Frame 48Z, Voltage 115, 60 Hz, 1 Phase, Full Load Amps 5.7, Bracket Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.3, Ball BearingsMax. Ambient Temp. 50 Degrees C, Rotation CWLE, Bolt Circle Dia. 5-7/8 In., Ring Dia. 2-1/2 In., 8-15/16 In. Ring to Ring Center, Mfr. No. HW2034B, Standards UL, CSA

Grainger Item #	5ELN1
Price (ea.)	$699.00
Brand	CENTURY
Mfr. Model #	HW2034BL
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	16.85
Availability	Typically in Stock
Catalog Page No.	79
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

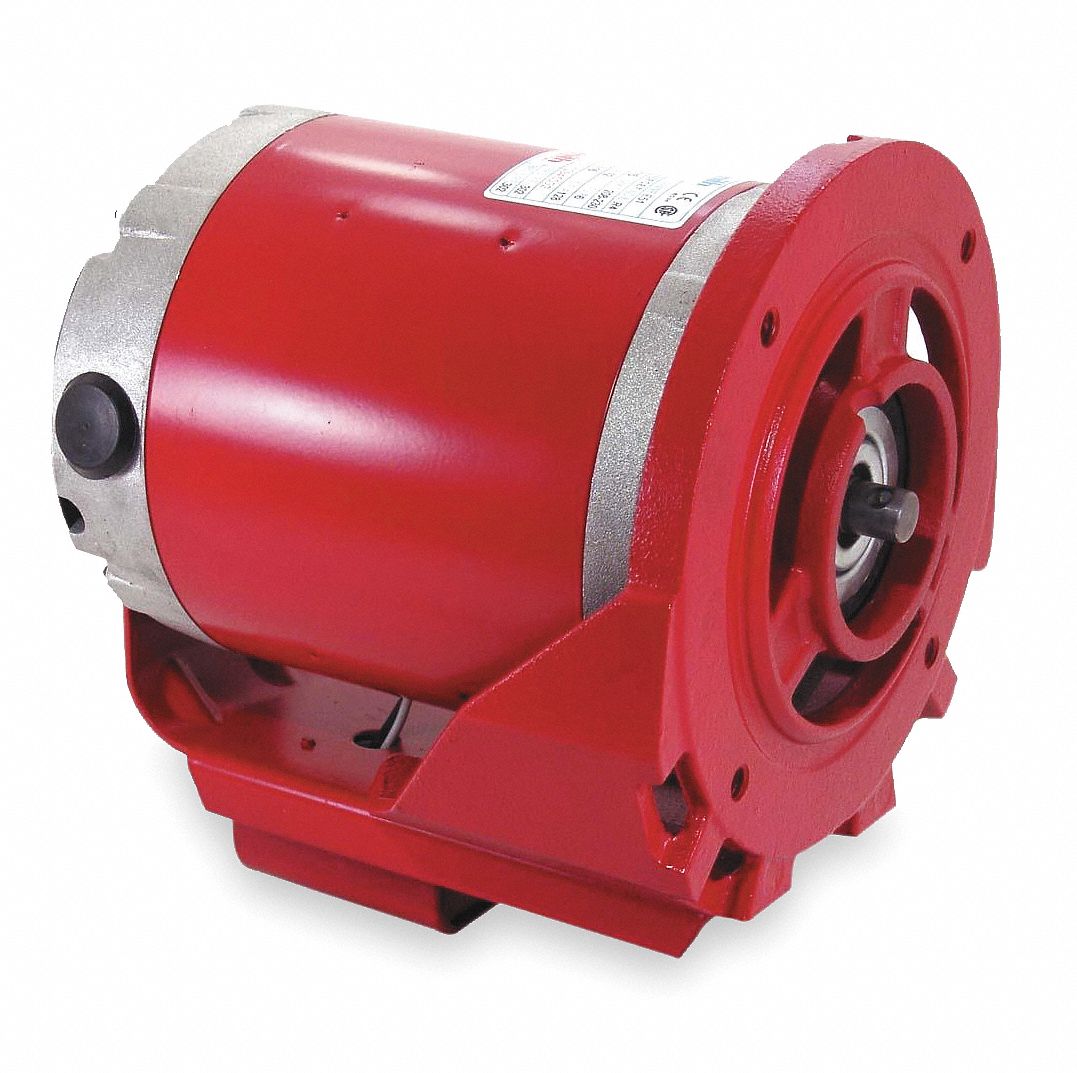

Water Circulator Motor, Bracket, NEMA/IEC

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Water Circulator Motor
Motor Type		Split-Phase
Enclosure		Open Dripproof
HP		1/3
Nameplate RPM		1725
NEMA/IEC Frame		48Z
Frame		48Z
Voltage		115
Hz		60
Phase		1
Full Load Amps		5.7
Mounting		Bracket
Thermal Protection		Auto
Insulation Class		B
Service Factor		1.3
Bearings		Ball
Max. Ambient Temp.		50 Degrees C
Rotation		CWLE
Bolt Circle Dia.		5-7/8"
Ring Dia.		2-1/2"
Ring to Ring Center		8-15/16"
Replacement For		Mfr. No. HW2034B
Standards		UL, CSA
