CENTURY Water Circulator Motor, NEMA/IEC, C Face

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Water Circulator Motor, 3-Phase, Open Dripproof, 1/2 HP, 1725 Nameplate RPM, NEMA/IEC Frame 56CZ, Voltage 208-230/460, 60 Hz, 3 Phase, Full Load Amps 1.8 to 2.0/1.0, C Face Mounting, Thermal Protection None, Insulation Class B, Service Factor 1.5, Ball Bearings, Frame Material Rolled Steel, Max. Ambient Temp. 50 Degrees C, Rotation CW/CCW, Bolt Circle Dia. 5-7/8 In.Standards UL, CSA

Grainger Item #	12N865
Price (ea.)	$501.00
Brand	CENTURY
Mfr. Model #	H1041L
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	21.0
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

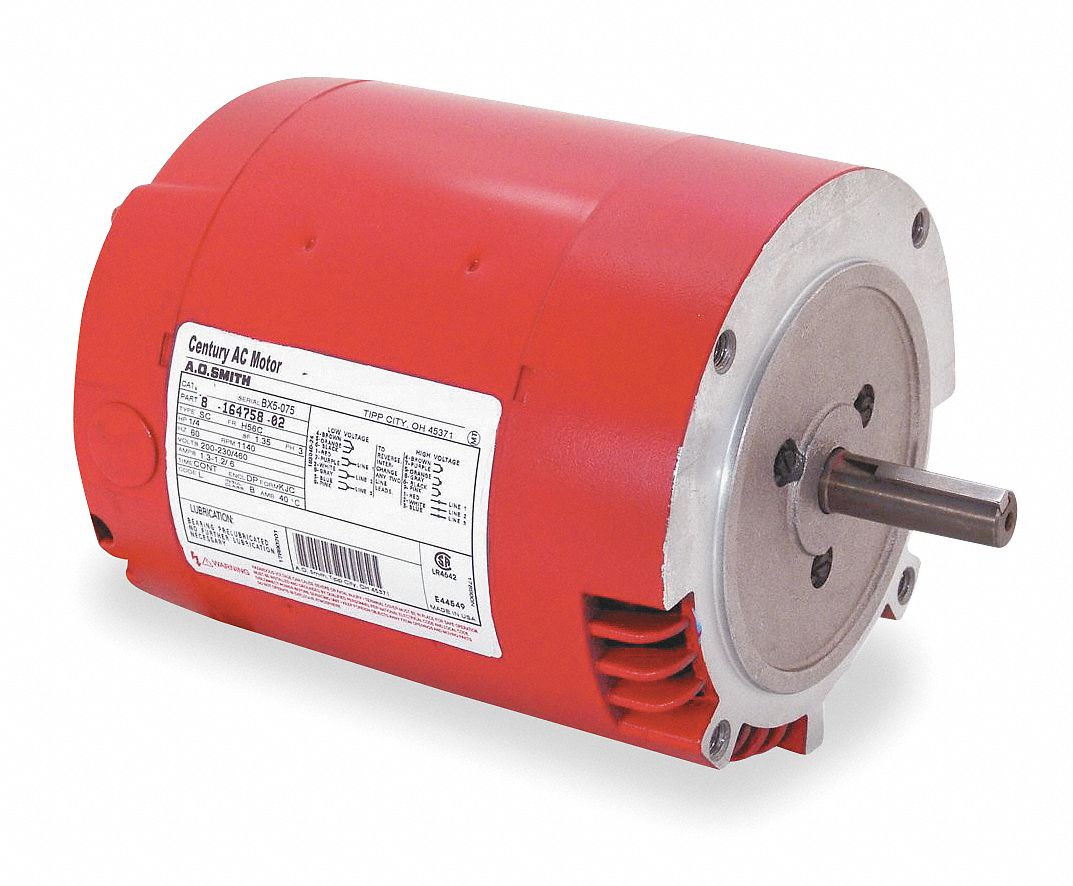

Water Circulator Motor, NEMA/IEC, C Face

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Water Circulator Motor
Motor Type		3-Phase
Enclosure		Open Dripproof
HP		1/2
Nameplate RPM		1725
NEMA/IEC Frame		56CZ
Frame		56CZ
Voltage		208-230/460
Hz		60
Phase		3
Full Load Amps		1.8 to 2.0/1.0
Thermal Protection		None
Insulation Class		B
Service Factor		1.5
Bearings		Ball
Frame Material		Rolled Steel
Max. Ambient Temp.		50 Degrees C
Rotation		CW/CCW
Bolt Circle Dia.		5-7/8"
RPM Range		1400-1800
Standards		UL, CSA
