CENTURY Motor, PSC, 1/12 HP, 1550 RPM, 115V, 3.3, OAO

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Ventilator Motor, PSC, 1/12 HP, Nameplate RPM 1550/1300, Voltage 115, Frame 3.3, Open Air-Over, Number of Speeds 2, Full Load Amps 1.5/0.9, 60 Hz, Lug Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Sleeve Bearings, Max. Ambient Temp. 50 Degrees C, Rotation CWSE, Overall Length 7-9/16 In., Shaft Dia. 3/8 In., Shaft Length 3-3/16 In., Capacitor Required Included

Grainger Item #	12N959
Price (ea.)	$188.00
Brand	CENTURY
Mfr. Model #	OPV746
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	6.27
Availability	Typically in Stock
Catalog Page No.	63
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

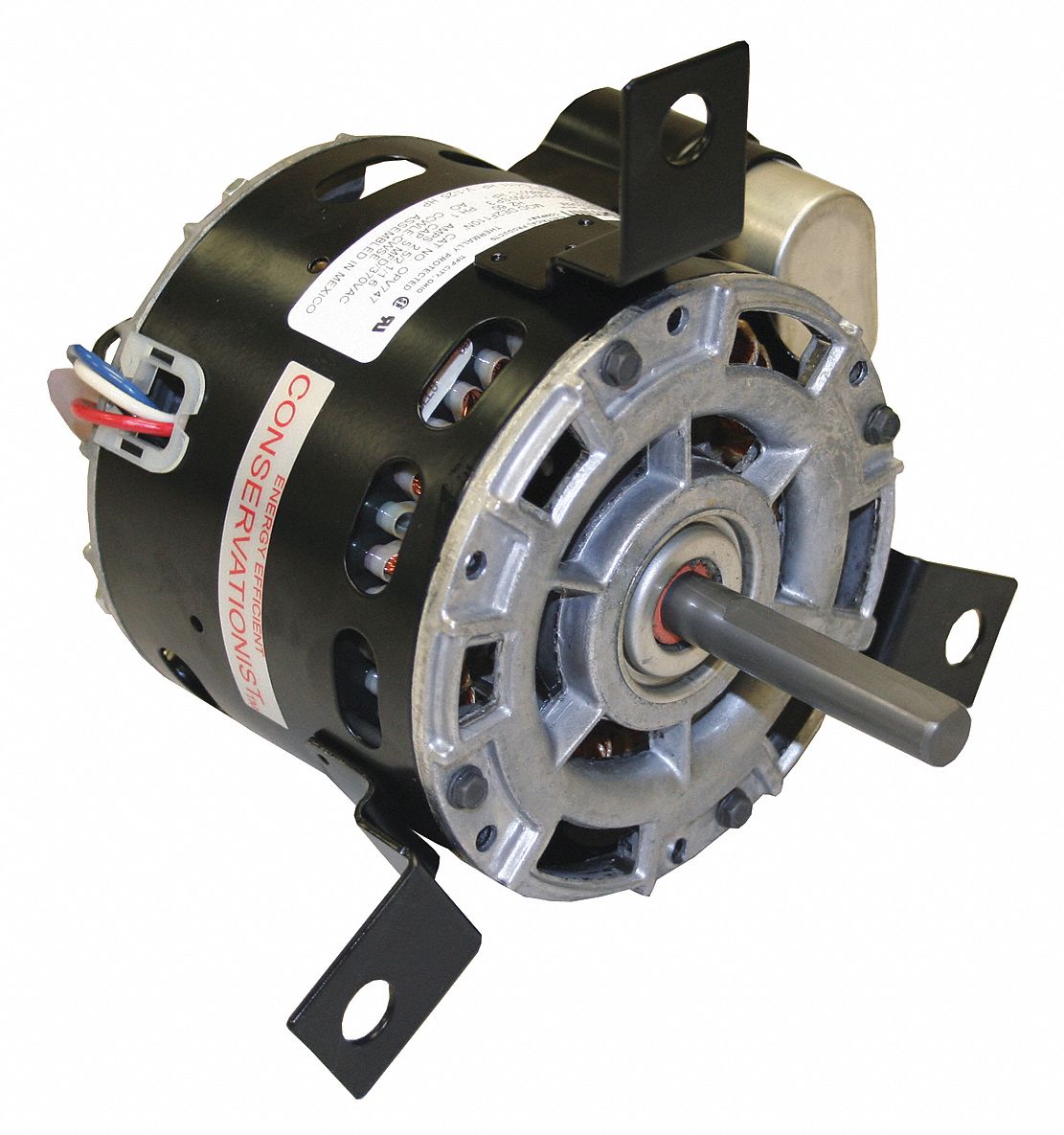

Motor, PSC, 1/12 HP, 1550 RPM, 115V, 3.3, OAO

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Ventilator Motor
Motor Type		PSC
Enclosure		Open Air-Over
HP		1/12
Nameplate RPM		1550/1300
Voltage		115
Full Load Amps		1.5/0.9
Frame		3.3
Service Factor		1.0
Hz		60
Mounting		Lug
Bearings		Sleeve
Thermal Protection		Auto
Rotation		CWSE
Insulation Class		B
Max. Ambient Temp.		50 Degrees C
Number of Speeds		2
Phase		1
Shaft Dia.		3/8"
Shaft Length		3-3/16"
Body Dia.		3-3/8"
Length Less Shaft		4-3/8"
Overall Length		7-9/16"
Capacitor Required		Included
Application		OEM Commercial Fan and Ventillation Replacement
RPM Range		1400-1800
Standards		UL Recognized (E46412), CSA Certified (LR43341)
