CENTURY Unit Heater Motor, 1/4 HP, 1075, 208-230 V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Unit Heater Motor, PSC, 1/4 HP, Nameplate RPM 1075, Voltage 208-230, NEMA/IEC Frame 48Y, 48Y, Totally Enclosed Air-Over Enclosure, Mounting Cradle/Stud, 1 Number of Speeds, 60/50 Hz, Phase 1, 1.8-1.8 Full Load Amps, Thermal Protection Auto, Insulation Class B, 1.0 Service Factor, Bearings Ball, Ambient Temperature 40 Degrees C, Rotation CW/CCW, Continuous Air-over Duty, Efficiency Group High, Overall Length 10-3/8 In., Length Less Shaft 5-3/8 In., Shaft Dia. 1/2 In., Shaft Length 5 In.

Grainger Item #	4UE30
Price (ea.)	$207.75
Brand	CENTURY
Mfr. Model #	UHH1026
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	14.3
Availability	Typically in Stock
Catalog Page No.	78
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

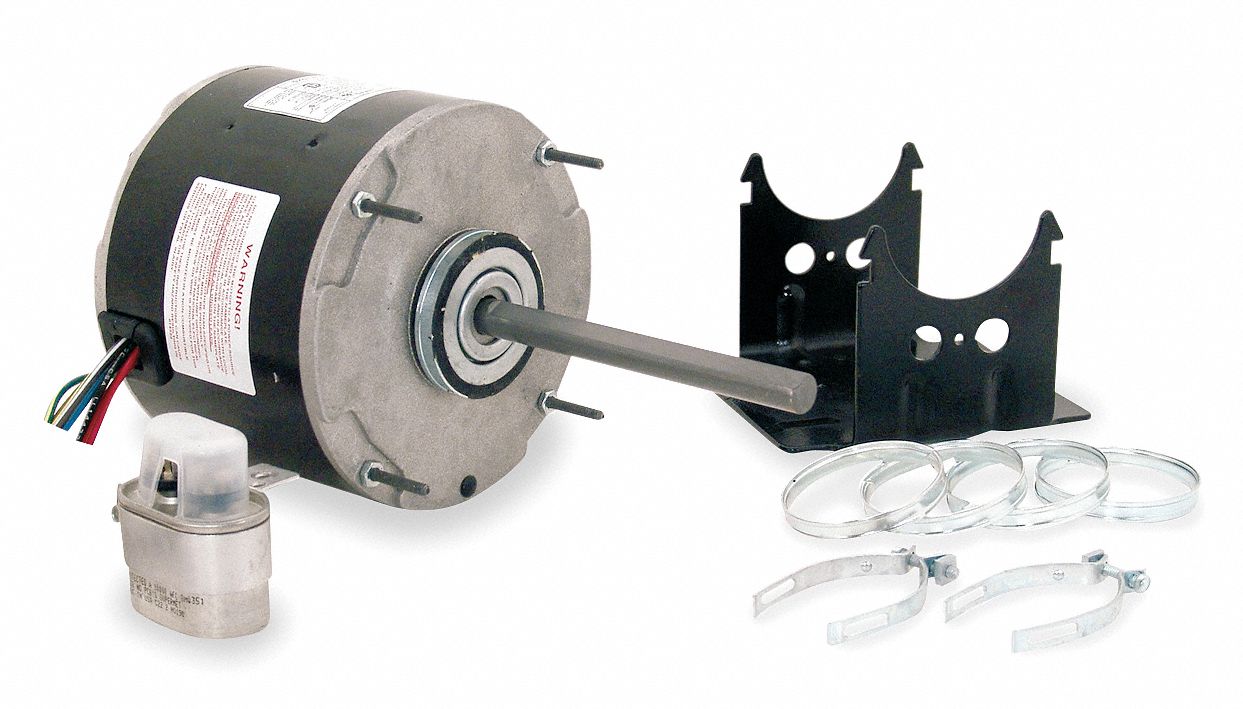

Unit Heater Motor, 1/4 HP, 1075, 208-230 V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Unit Heater Motor
Motor Type		PSC
HP		1/4
Nameplate RPM		1075
Voltage		208-230
NEMA/IEC Frame		48Y
Frame		48Y
Enclosure		Totally Enclosed Air-Over
Mounting		Cradle/Stud
Number of Speeds		1
Hz		60/50
Phase		1
Full Load Amps		1.8-1.8
Thermal Protection		Auto
Insulation Class		B
Service Factor		1.0
Bearings		Ball
Ambient Temperature		40 Degrees C
Rotation		CW/CCW
Duty		Continuous Air-over
Efficiency Group		High
Overall Length		10-3/8"
Length Less Shaft		5-3/8"
Shaft Dia.		1/2"
Shaft Length		5"
Body Dia.		5-5/8"
Ring Dia.		2-1/4"
Ring to Ring Center		4-15/16"
Stud Pattern		3-5/8 x 3-5/8"
Application		Unit Heaters and Other Shaft-mounted Fan and Blower Equipment in Dusty, Dirty, Noncombustible Environments
RPM Range		1000-1380
Standards		UL Recognized (E46412/E49807), CSA Certified (LR43341/LR4642)
Includes		4 MFD 370 VAC Capacitor w/End Cap, Bracket Assembly, 4 Split Rings, Mounting Base, Resilient Rings, 2 Mounting Clamp Assemblies
