CENTURY Unit Heater Motor, 1/6 HP, 1075, 115 V, 48Y

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Unit Heater Motor, PSC, 1/6 HP, Nameplate RPM 1075, Voltage 115, NEMA/IEC Frame 48Y, 48Y, Totally Enclosed Air-Over Enclosure, Mounting Stud, 1 Number of Speeds, 60 Hz, Phase 1, 2.2 Full Load Amps, Thermal Protection Auto, Insulation Class B, 1.0 Service Factor, Bearings Ball, Ambient Temperature 60 Degrees C, Rotation CW/CCW, Continuous Air-over Duty, Efficiency Group High, Overall Length 8-1/2 In., Length Less Shaft 5-1/4 In., Shaft Dia. 1/2 In., Shaft Length 3-1/4 In.

Grainger Item #	4LY86
Price (ea.)	$179.00
Brand	CENTURY
Mfr. Model #	UH1016NB
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	11.9
Availability	Typically in Stock
Catalog Page No.	78
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

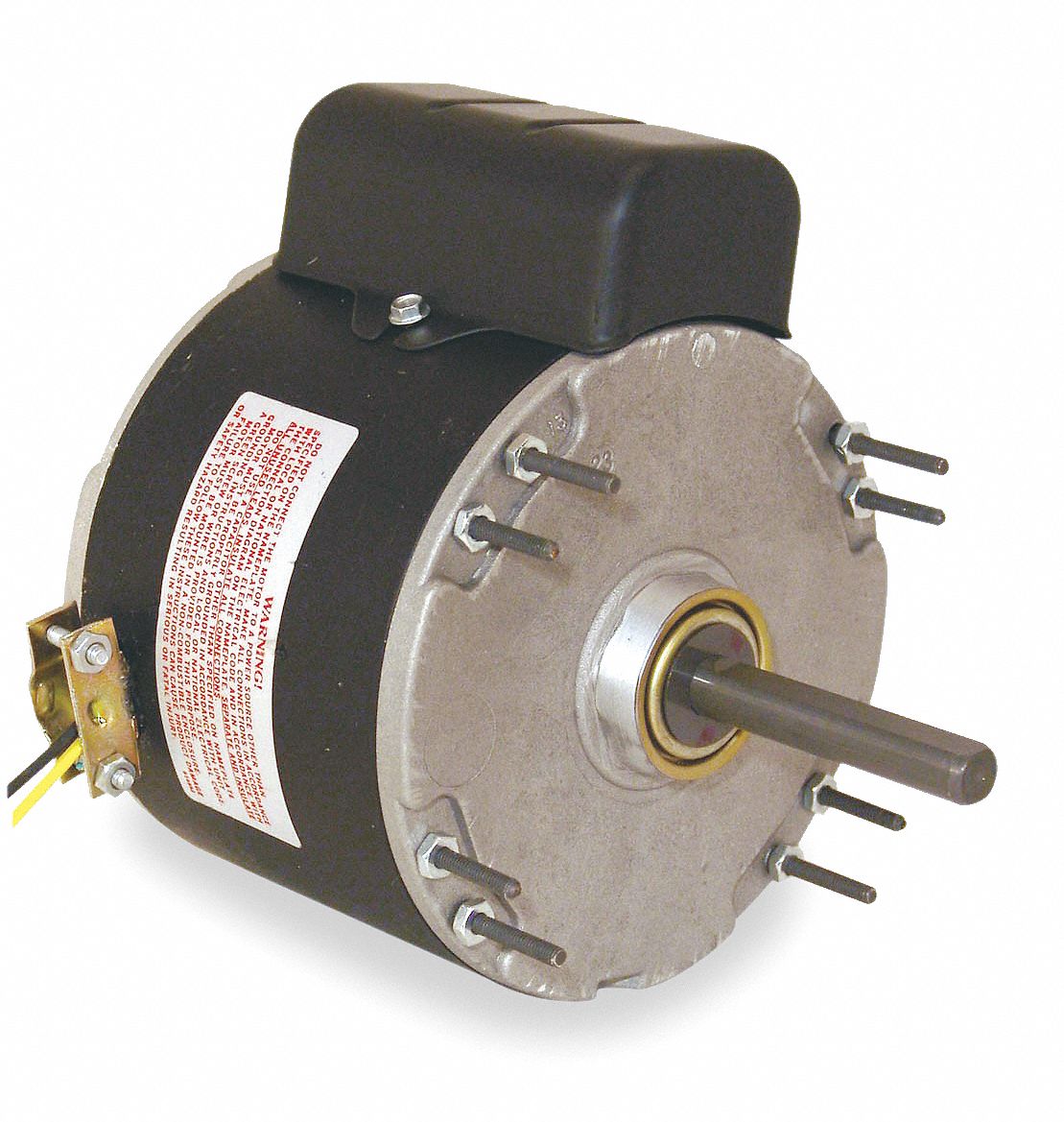

Unit Heater Motor, 1/6 HP, 1075, 115 V, 48Y

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Unit Heater Motor
Motor Type		PSC
HP		1/6
Nameplate RPM		1075
Voltage		115
NEMA/IEC Frame		48Y
Frame		48Y
Enclosure		Totally Enclosed Air-Over
Mounting		Stud
Number of Speeds		1
Hz		60
Phase		1
Full Load Amps		2.2
Thermal Protection		Auto
Insulation Class		B
Service Factor		1.0
Bearings		Ball
Ambient Temperature		60 Degrees C
Rotation		CW/CCW
Duty		Continuous Air-over
Efficiency Group		High
Overall Length		8-1/2"
Length Less Shaft		5-1/4"
Shaft Dia.		1/2"
Shaft Length		3-1/4"
Body Dia.		5-5/8"
Stud Pattern		3-5/8 x 3-5/8", 4-1/2 x 2-9/16"
Application		Unit Heaters and Other Shaft-mounted Fan and Blower Equipment in Dusty, Dirty, Noncombustible Environments
RPM Range		1000-1380
Standards		UL Recognized (E46412/E49807), CSA Certified (LR43341/LR4642)
Includes		5 MFD 370 VAC Capacitor, Four 8-32 Dummy Studs
