Motors
>
Pump Motors
>
Square Flange Pool Pump Motors

230 V, 56Y, ODP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Square Flange Pool Pump Motor, PSC Motor Type, Open Dripproof Enclosure, 3/4 HP, Nameplate RPM 3450, 56Y Frame, Voltage 115/230, 60 Hz, 1 Phase, Full Load Amps 10.4/5.2, Flange Mounting, Thermal Protection Auto, Insulation Class F, Service Factor 1.65, Ball Bearings, Max. Ambient Temp. 50 Degrees C, Rotation CCWSE, Shaft Threaded-1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH, Shaft Material 303 Stainless Steel, Shaft Dia. 5/8 In.Black Finish, Standard Efficiency GroupUL Recognized E44549 Standards

Grainger Item #	6UEV3
Price (ea.)	$285.25
Brand	CENTURY
Mfr. Model #	B2847
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	24.05
Availability	Typically in Stock
Catalog Page No.	51
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

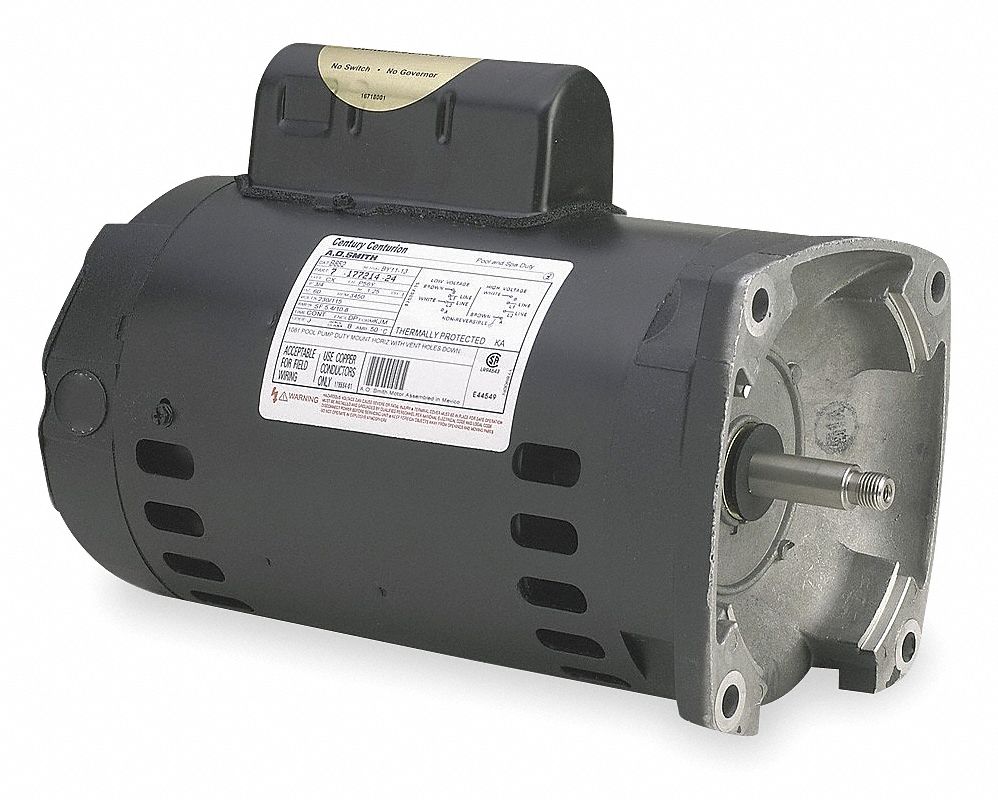

Pump Motor, 3/4 HP, 3450, 115/230 V, 56Y, ODP

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Square Flange Pool Pump Motor
Motor Type		PSC
Enclosure		Open Dripproof
HP		3/4
Nameplate RPM		3450
Frame		56Y
Voltage		115/230
Hz		60
Phase		1
Full Load Amps		10.4/5.2
Mounting		Flange
Thermal Protection		Auto
Insulation Class		F
Service Factor		1.65
Bearings		Ball
Max. Ambient Temp.		50 Degrees C
Rotation		CCWSE
Shaft		Threaded-1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH
Shaft Material		303 Stainless Steel
Shaft Dia.		5/8"
Finish		Black
Efficiency Group		Standard
RPM Range		2350-3600
Standards		UL Recognized E44549
Includes		Capacitor - 30 MFD 370V 50/60Hz
