Motors
>
Pump Motors
>
Square Flange Pool Pump Motors

230 V, 48Y, ODP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Square Flange Pool Pump Motor, Capacitor-Start Motor Type, Open Dripproof Enclosure, 1/2 HP, Nameplate RPM 3450, 48Y Frame, Voltage 115/230, 60 Hz, 1 Phase, Full Load Amps 11.8/5.9, Flange Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.90, Double-Sealed Ball Bearings, Max. Ambient Temp. 50 Degrees C, Rotation CCWSE, Shaft Threaded 1/2-20 UNF-2A RH, Shaft Material 303 Stainless Steel, Shaft Dia. 5/8 In.Black Finish, Standard Efficiency Group, Two Compartment

Grainger Item #	5PB88
Price (ea.)	$249.75
Brand	CENTURY
Mfr. Model #	SQ1052
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	19.3
Availability	Typically in Stock
Catalog Page No.	51
Country of Origin (Country of Origin is subject to change.)	Mexico

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

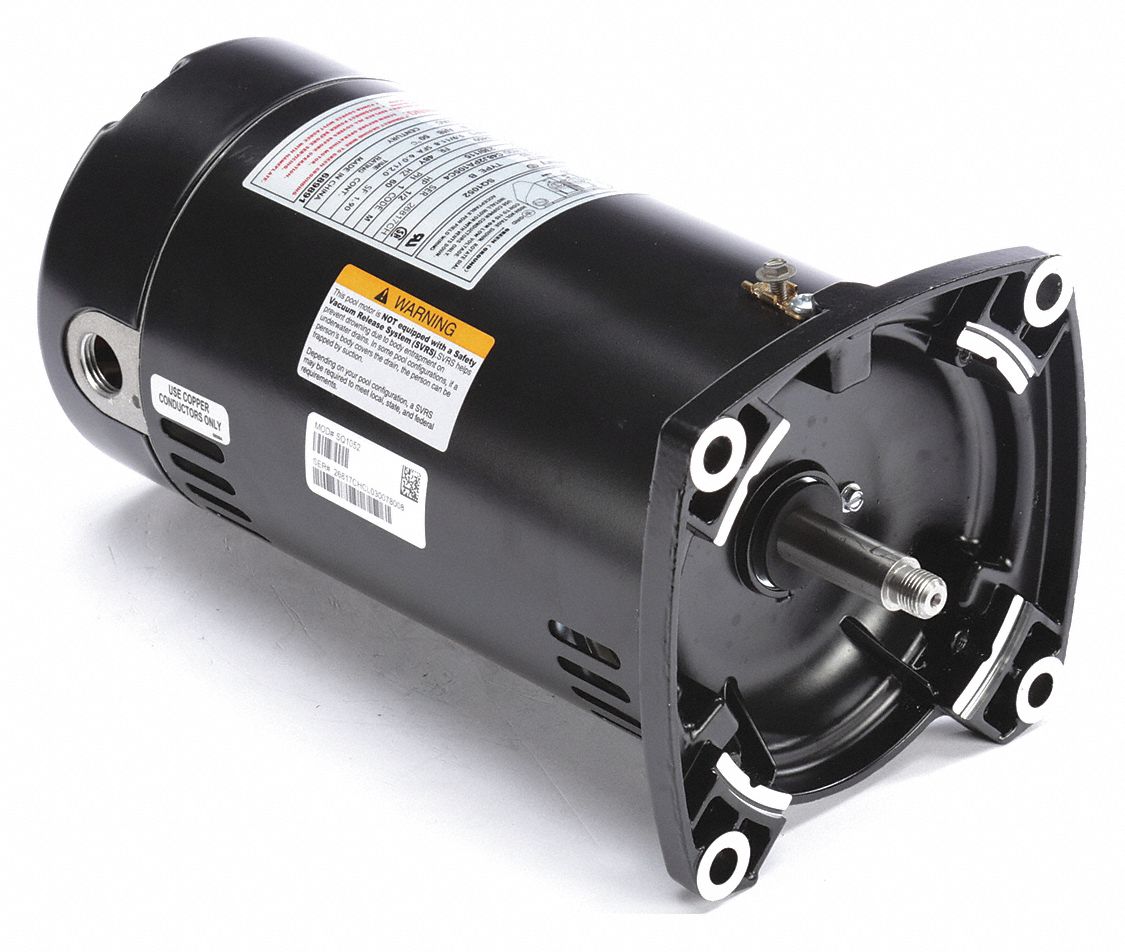

Pump Motor, 1/2 HP, 3450, 115/230 V, 48Y, ODP

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Square Flange Pool Pump Motor
Motor Type		Capacitor-Start
Enclosure		Open Dripproof
HP		1/2
Nameplate RPM		3450
Frame		48Y
Voltage		115/230
Hz		60
Phase		1
Full Load Amps		11.8/5.9
Mounting		Flange
Thermal Protection		Auto
Insulation Class		B
Service Factor		1.90
Bearings		Double-Sealed Ball
Max. Ambient Temp.		50 Degrees C
Rotation		CCWSE
Shaft		Threaded 1/2-20 UNF-2A RH
Shaft Material		303 Stainless Steel
Shaft Dia.		5/8"
Finish		Black
Efficiency Group		Standard
RPM Range		2350-3600
Design		Two Compartment
Standards		UL Recognized (E44549, E25022), CSA Certified (LR43341, LR94643), UL 1081 Approvable
