Motors
>
Pump Motors
>
Square Flange Pool Pump Motors

CENTURY Pump Motor, 1 HP, 3450, 115/230 V, 56Y, ODP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Square Flange Pool Pump Motor, PSC Motor Type, Open Dripproof Enclosure, 1 HP, Nameplate RPM 3450, 56Y Frame, Voltage 115/230, 60 Hz, 1 Phase, Full Load Amps 14.2/7.1, Flange Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.25, Double-Sealed Ball Bearings, Max. Ambient Temp. 50 Degrees C, Rotation CCWSE, Shaft Threaded 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH, Shaft Material Stainless Steel, Shaft Dia. 5/8 In., Shaft Length 1 In., Black Epoxy Finish, Standard Efficiency Group

Grainger Item #	4HCJ7
Price (ea.)	$66.98
Brand	CENTURY
Mfr. Model #	BG853A
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	25.65
Availability	Clearance - limited quantity available
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

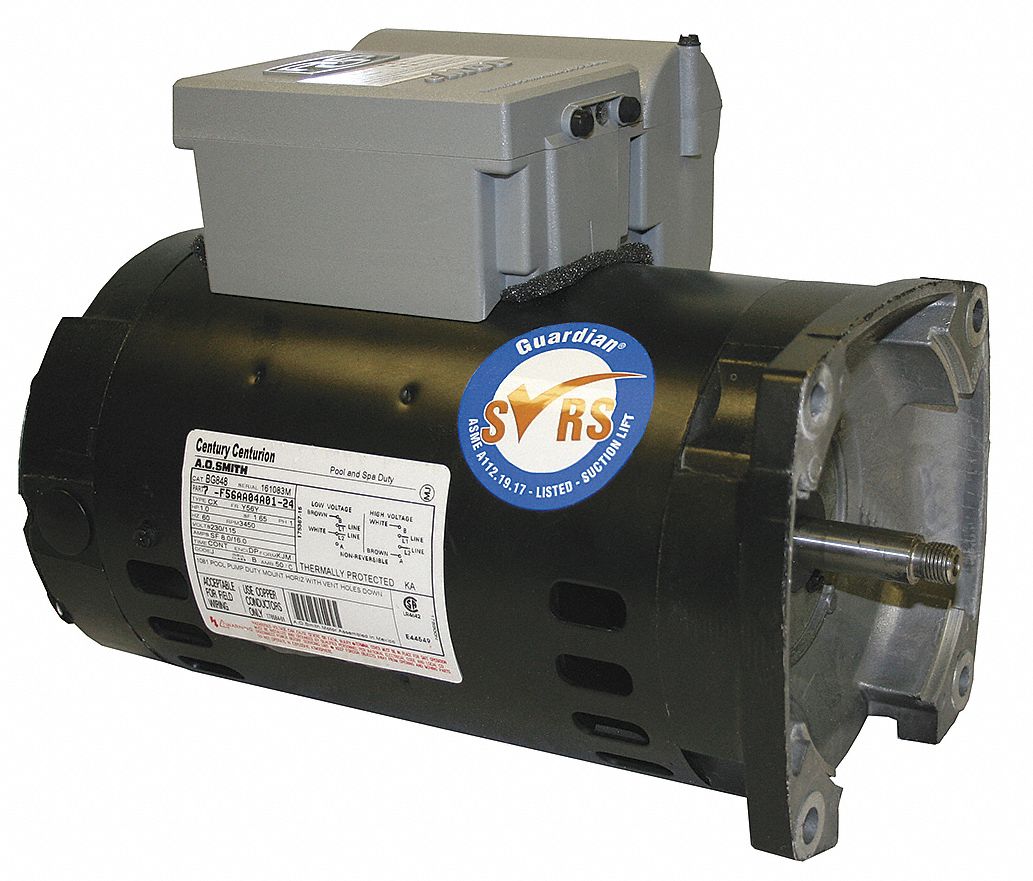

Pump Motor, 1 HP, 3450, 115/230 V, 56Y, ODP

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Square Flange Pool Pump Motor
Motor Type		PSC
Enclosure		Open Dripproof
HP		1
Nameplate RPM		3450
Frame		56Y
Voltage		115/230
Hz		60
Phase		1
Full Load Amps		14.2/7.1
Mounting		Flange
Thermal Protection		Auto
Insulation Class		B
Service Factor		1.25
Bearings		Double-Sealed Ball
Max. Ambient Temp.		50 Degrees C
Rotation		CCWSE
Shaft		Threaded 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH
Shaft Material		Stainless Steel
Shaft Dia.		5/8"
Shaft Length		1"
Finish		Black Epoxy
Efficiency Group		Standard
RPM Range		2350-3600
Design		Two Compartment
Standards		Pending - TBA
