Motors
>
Pump Motors
>
Square Flange Pool Pump Motors

1725, 230 V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Square Flange Pool Pump Motor, Capacitor-Start Motor Type, Open Dripproof Enclosure, 3/4, 1/10 HP, Nameplate RPM 3450/1725, 56Y Frame, Voltage 230, 60 Hz, 1 Phase, Full Load Amps 5.8/0.9, Flange Mounting, Thermal Protection Auto, Insulation Class F, Service Factor 1.67, Ball Bearings, Max. Ambient Temp. 50 Degrees C, Rotation CCW, Shaft Threaded 1/2-20 UNF-2A RH, Shaft Material 303 Stainless Steel, Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Black Finish

Grainger Item #	16U429
Price (ea.)	$806.00
Brand	CENTURY
Mfr. Model #	B2980T
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	32.65
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

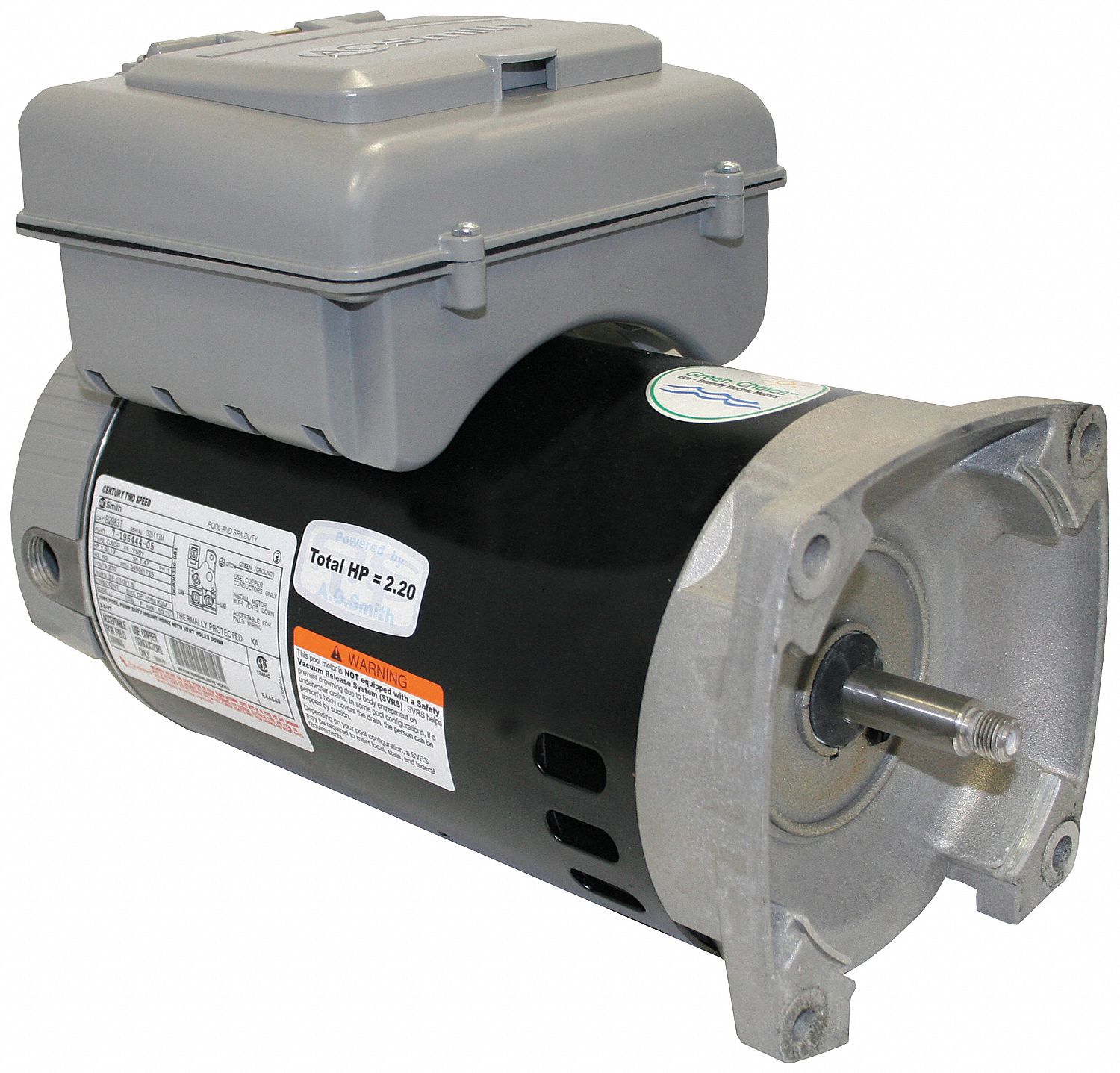

Pump Motor, 3/4, 1/10 HP, 3450/1725, 230 V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Square Flange Pool Pump Motor
Motor Type		Capacitor-Start
Enclosure		Open Dripproof
HP		3/4, 1/10
Nameplate RPM		3450/1725
Frame		56Y
Voltage		230
Hz		60
Phase		1
Full Load Amps		5.8/0.9
Mounting		Flange
Thermal Protection		Auto
Insulation Class		F
Service Factor		1.67
Bearings		Ball
Max. Ambient Temp.		50 Degrees C
Rotation		CCW
Shaft		Threaded 1/2-20 UNF-2A RH
Shaft Material		303 Stainless Steel
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Finish		Black
Efficiency Group		High
RPM Range		2 Speed
Standards		UL Recognized (E44549), CSA Certified (LR642)
