Motors
>
Pump Motors
>
Pool and Spa Pump Motors

CENTURY Pump Mtr, Cap St, 2hp, 3450, 115/230, 48Y, ODP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Spa and Pool Pump Motor, Capacitor-Start, Open Dripproof, 2 HP, 3450 Nameplate RPM, 48Y NEMA/IEC Frame, CCWPE Rotation, Voltage 115/230, 20.0/10.0 Full Load Amps, 1 Phase, 60 Hz, Base Mounting, Ball Bearings, BlackShaft Threaded 3/8-16 UNC-2A, Shaft Material Stainless Steel, Thermal Protection Auto, 1.0 Service FactorShaft Dia. 1/2 In., Shaft Length 2-5/16 In., Insulation Class BStandards UL Recognized (E44549), CSA Certified (LR4642), UL 1081, 1563, 1795 Approvable

Grainger Item #	5PB52
Price (ea.)	$370.25
Brand	CENTURY
Mfr. Model #	BN40SS
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	29.75
Availability	Typically in Stock
Catalog Page No.	49
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

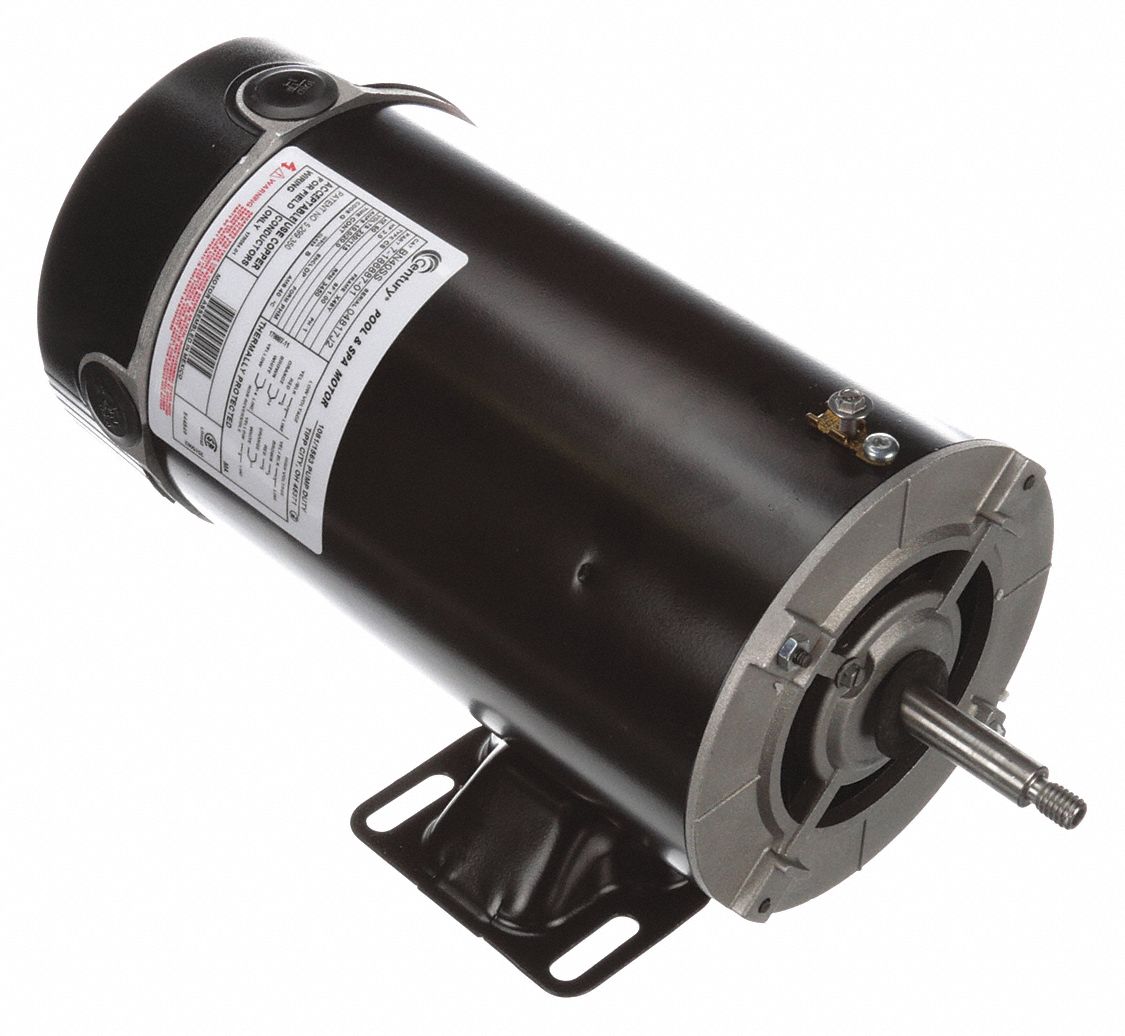

Pump Mtr, Cap St, 2hp, 3450, 115/230, 48Y, ODP

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Spa and Pool Pump Motor
Motor Type		Capacitor-Start
Enclosure		Open Dripproof
HP		2
Nameplate RPM		3450
NEMA/IEC Frame		48Y
Frame		48Y
Rotation		CCWPE
Voltage		115/230
Full Load Amps		20.0/10.0
Phase		1
Hz		60
Mounting		Base
Bearings		Ball
Finish		Black
Shaft		Threaded 3/8-16 UNC-2A
Shaft Material		Stainless Steel
Thermal Protection		Auto
Service Factor		1.0
Shaft Dia.		1/2"
Shaft Length		2-5/16"
Insulation Class		B
RPM Range		2350-3600
Standards		UL Recognized (E44549), CSA Certified (LR4642), UL 1081, 1563, 1795 Approvable

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Item #	Description	Brand Mfr. Model #	Availability	Price
5PB54	PumpMtr, Cap St, 2, 1/4 HP, 3450, 230, 48Y, ODP >More Details... Country of Origin: Mexico	CENTURY BN51	Typically in Stock	$420.50
