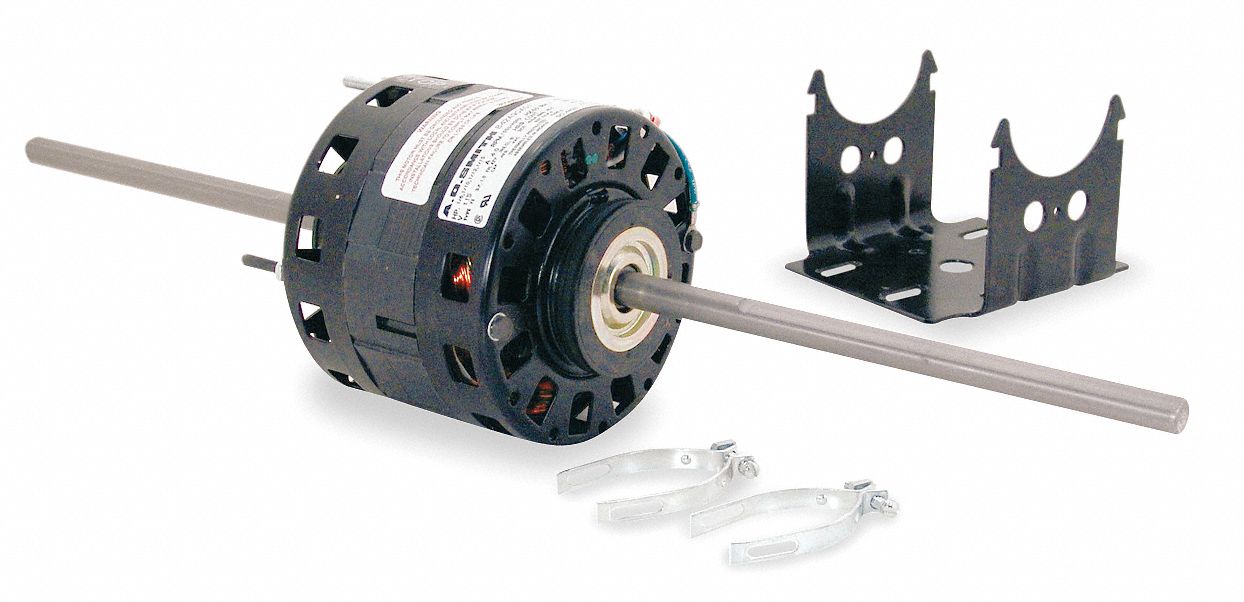

CENTURY Room Air Cond Mtr, Shad Pol, OAO, 1550 RPM

Room Air Conditioner Motor, Shaded Pole, Open Air-Over, Continuous Air Over, 1/6 HP, 1550 Nameplate RPM, Voltage 115, 42Y NEMA/IEC Frame, Service Factor 1.0, 60 Hz, Full Load Amps 4.0, Thermal Protection Auto, Insulation Class B, Max. Ambient Temp. 40 Degrees C, Number of Speeds 4, CCWLE Rotation, 1 Phase, Cradle/Stud Mounting, Sleeve Bearings, Body Dia. 5 In., Length Less Shaft 4-3/8 In., Shaft Type Double, Shaft Dia. 1/2 In., Shaft Length 8 In., Stud Pattern 3-1/8 x 3-1/8 In.
  • Grainger Item #4UU51
    Price (ea.)$206.25
    BrandCENTURY
    Mfr. Model #DCL4423
    UNSPSC #26101602
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)11.75
    Availability Typically in Stock
    Catalog Page No.64
    Country of Origin
    (Country of Origin is subject to change.)
    Mexico
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemRoom Air Conditioner Motor
Motor TypeShaded Pole
EnclosureOpen Air-Over
DutyContinuous Air Over
HP1/6
Nameplate RPM1550
Voltage115
NEMA/IEC Frame42Y
Service Factor1.0
Hz60
Full Load Amps4.0
Thermal ProtectionAuto
Insulation ClassB
Max. Ambient Temp.40 Degrees C
Number of Speeds4
RotationCCWLE
Phase1
MountingCradle/Stud
BearingsSleeve
Body Dia.5"
Length Less Shaft4-3/8"
Shaft TypeDouble
Shaft Dia.1/2"
Shaft Length8"
Stud Pattern3-1/8 x 3-1/8"
Stud Size#10-32 x 13/16"
Ring to Ring Center4-9/16"
Resilient Ring Dia.2-1/2"
Bolt Circle Dia.4-7/16"
Lead Length30"
RPM Range1400-1800
Capacitor RequiredNone
StandardsUL, CSA
