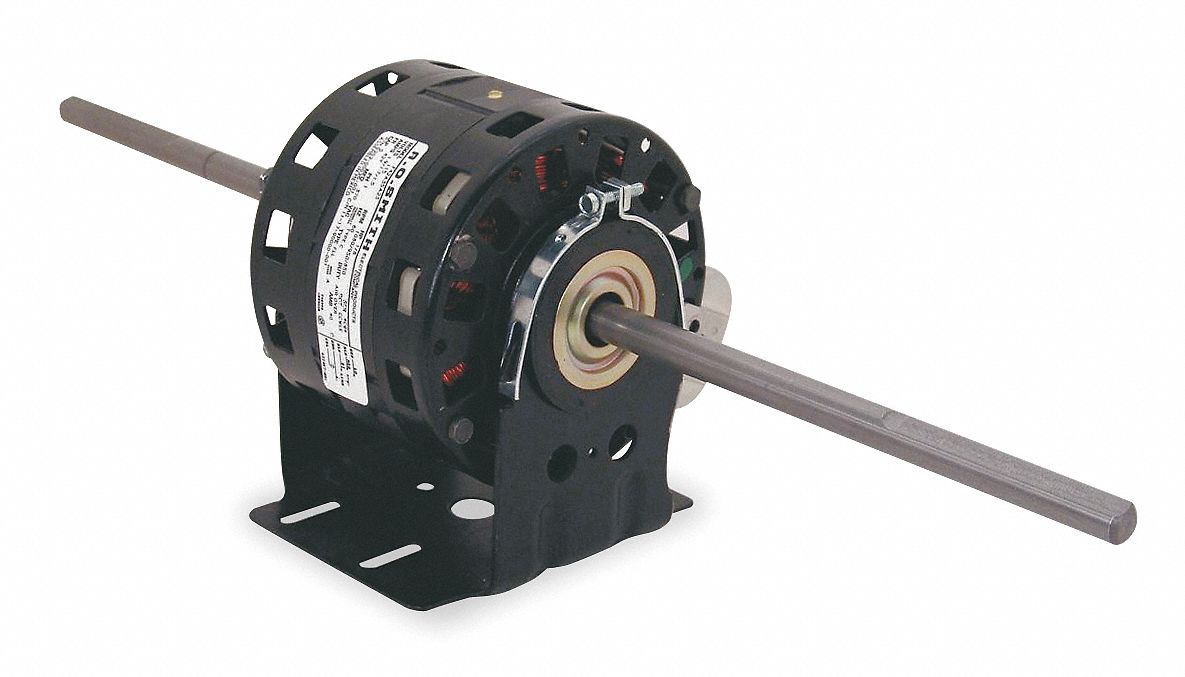

CENTURY Room Air Cond Mtr, PSC, OAO, 1625 RPM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Room Air Conditioner Motor, PSC, Open Air-Over, Continuous Air Over, 1/10, 1/12, 1/15 HP, 1625 Nameplate RPM, Voltage 115, 42Y NEMA/IEC Frame, Service Factor 1.0, 60 Hz, Full Load Amps 1.3, 1.0, 0.7, Thermal Protection Auto, Insulation Class A, Max. Ambient Temp. 40 Degrees C, Number of Speeds 3, CCWLE Rotation, 1 Phase, Cradle Mounting, Sleeve Bearings, Body Dia. 5 In., Length Less Shaft 4-3/8 In., Shaft Type Double, Shaft Dia. 1/2 In., Shaft Length 8-13/16 In.Ring to Ring Center 4-1/16 In.

Grainger Item #	4UU16
Price (ea.)	$206.50
Brand	CENTURY
Mfr. Model #	DBL4500V1
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	12.75
Availability	Typically in Stock
Catalog Page No.	65
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Room Air Conditioner Motor
Motor Type		PSC
Enclosure		Open Air-Over
Duty		Continuous Air Over
HP		1/10, 1/12, 1/15
Nameplate RPM		1625
Voltage		115
NEMA/IEC Frame		42Y
Service Factor		1.0
Hz		60
Full Load Amps		1.3, 1.0, 0.7
Thermal Protection		Auto
Insulation Class		A
Max. Ambient Temp.		40 Degrees C
Number of Speeds		3
Rotation		CCWLE
Phase		1
Mounting		Cradle
Bearings		Sleeve
Body Dia.		5"
Length Less Shaft		4-3/8"
Shaft Type		Double
Shaft Dia.		1/2"
Shaft Length		8-13/16"
Ring to Ring Center		4-1/16"
Resilient Ring Dia.		2-1/2"
Lead Length		39"
RPM Range		1400-1800
Capacitor Required		Included
Standards		UL, CSA
