CENTURY Pool Pump Motor, 1 HP, 3450 RPM, 115/230VAC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pool Pump Motor, PSC, Open Dripproof, 1 HP, 3450 Nameplate RPM, 56J NEMA/IEC Frame, CCWSE Rotation, Voltage 115/230, 14.4/7.2 Full Load Amps, 1 Phase, 60 Hz, Face Mounting, Double-Sealed Ball Bearings, Black, Flange Material Aluminum, Shaft Threaded 7/16-20 UNF-2A RH 11/16 In. From End, Shaft Material 303 Stainless Steel, Thermal Protection Auto, 1.40 Service Factor, Ambient Temperature 50 Degrees C, Shaft Dia. 5/8 In., Shaft Length 2-9/16 In., Insulation Class B, Efficiency Group Standard

Grainger Item #	5PB68
Price (ea.)	$339.00
Brand	CENTURY
Mfr. Model #	B128
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	25.35
Availability	Typically in Stock
Catalog Page No.	50
Country of Origin (Country of Origin is subject to change.)	Mexico

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

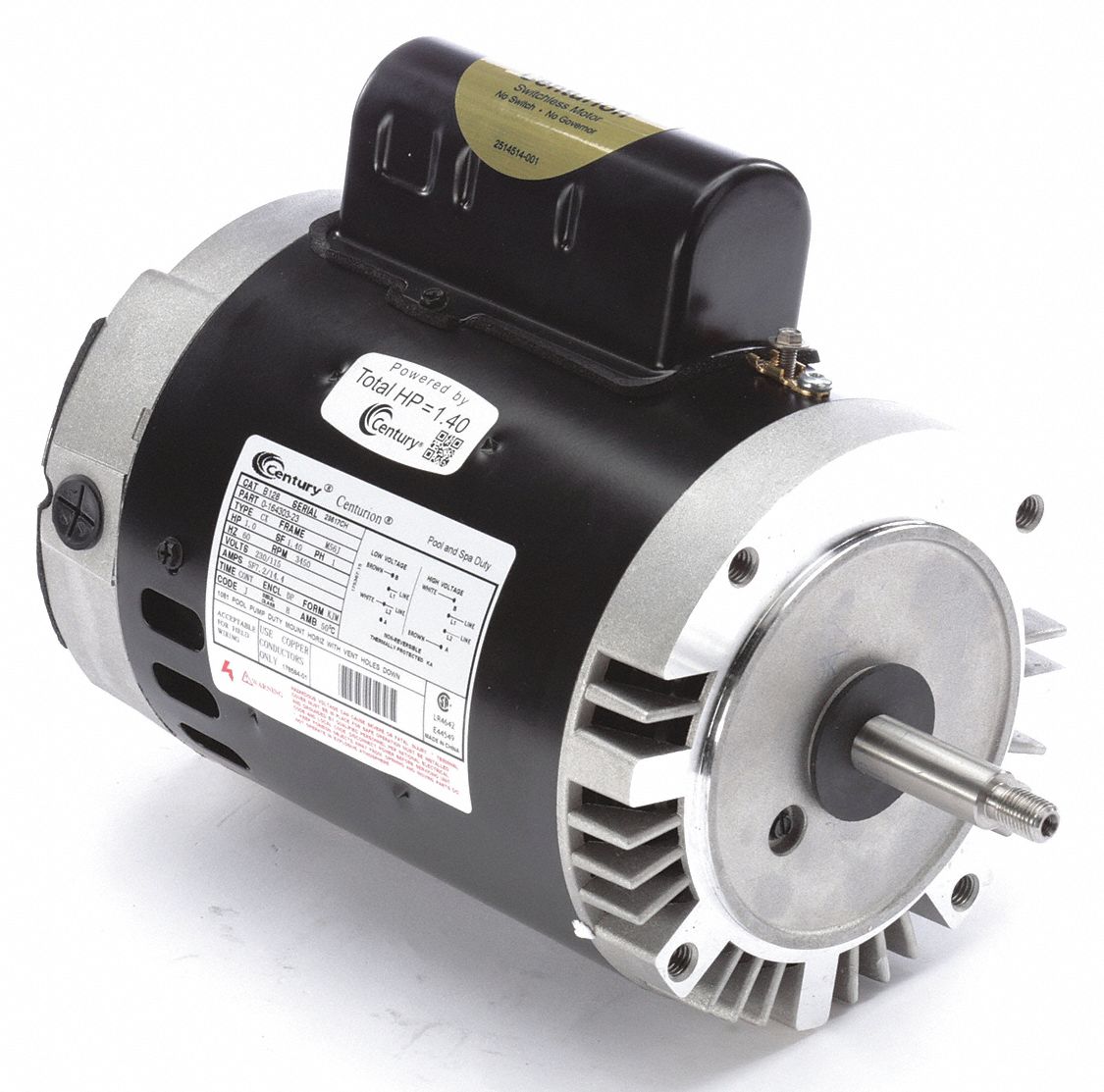

Pool Pump Motor, 1 HP, 3450 RPM, 115/230VAC

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pool Pump Motor
Motor Type		PSC
Enclosure		Open Dripproof
HP		1
Nameplate RPM		3450
NEMA/IEC Frame		56J
Frame		56J
Rotation		CCWSE
Voltage		115/230
Full Load Amps		14.4/7.2
Phase		1
Hz		60
Mounting		Face
Bearings		Double-Sealed Ball
Finish		Black
Flange Material		Aluminum
Shaft		Threaded 7/16-20 UNF-2A RH 11/16" From End
Shaft Material		303 Stainless Steel
Thermal Protection		Auto
Service Factor		1.40
Ambient Temperature		50 Degrees C
Shaft Dia.		5/8"
Shaft Length		2-9/16"
Insulation Class		B
RPM Range		2350-3600
Efficiency Group		Standard
Standards		UL Recognized (E44549/E25022), CSA Certified (LR43341/LR94643), UL 1081 Approvable
