Motors
>
Pump Motors
>
Pool and Spa Pump Motors

CENTURY Pool Pump Motor, 3 HP, 3450 RPM, 208-230VAC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pool Pump Motor, Capacitor-Start, Open Dripproof, 3 HP, 3450 Nameplate RPM, 56C NEMA/IEC Frame, CCWSE Rotation, Voltage 208-230, 15.0-13.3 Full Load Amps, 1 Phase, 60 Hz, Face Mounting, Double-Shielded Ball Bearings, Black, Flange Material Aluminum, Shaft Keyed, Shaft Material 303 Stainless Steel, Thermal Protection Auto, 1.15 Service Factor, Ambient Temperature 50 Degrees C, Shaft Dia. 5/8 In., Shaft Length 2-1/16 In., Insulation Class B, Efficiency Group Standard

Grainger Item #	3CZR4
Price (ea.)	$688.50
Brand	CENTURY
Mfr. Model #	SK1302V1
UNSPSC #	26101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	41.8
Availability	Typically in Stock
Catalog Page No.	50
Country of Origin (Country of Origin is subject to change.)	Mexico

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

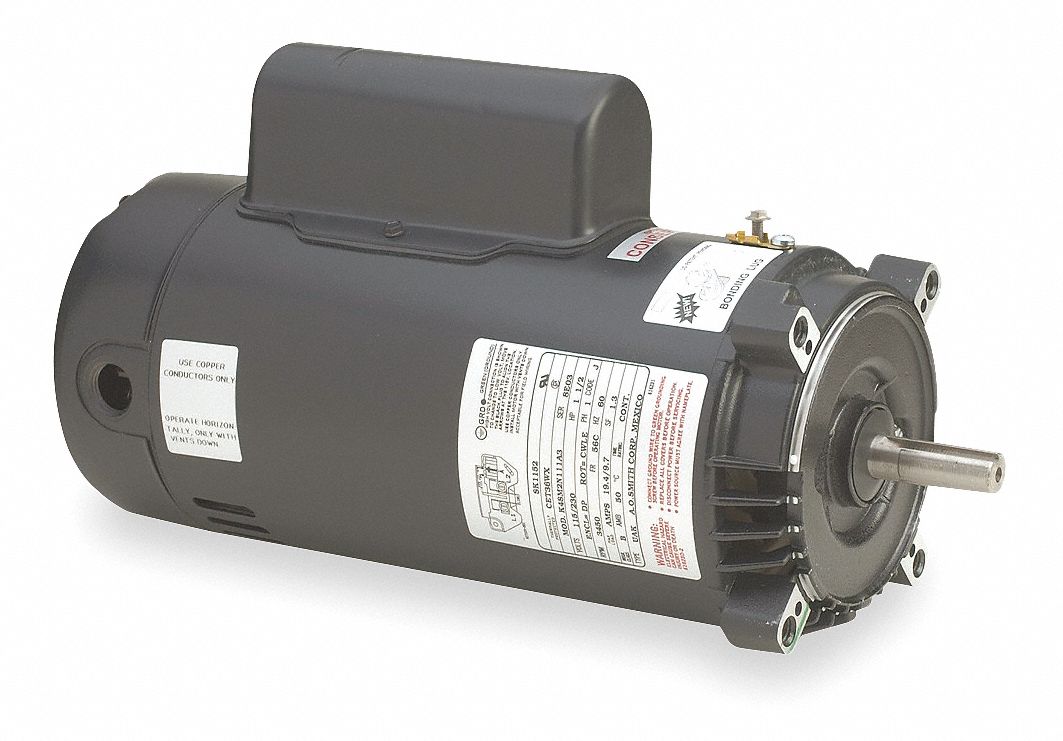

Pool Pump Motor, 3 HP, 3450 RPM, 208-230VAC

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pool Pump Motor
Motor Type		Capacitor-Start
Enclosure		Open Dripproof
HP		3
Nameplate RPM		3450
NEMA/IEC Frame		56C
Frame		56C
Rotation		CCWSE
Voltage		208-230
Full Load Amps		15.0-13.3
Phase		1
Hz		60
Mounting		Face
Bearings		Double-Shielded Ball
Finish		Black
Flange Material		Aluminum
Shaft		Keyed
Shaft Material		303 Stainless Steel
Thermal Protection		Auto
Service Factor		1.15
Ambient Temperature		50 Degrees C
Shaft Dia.		5/8"
Shaft Length		2-1/16"
Insulation Class		B
RPM Range		2350-3600
Efficiency Group		Standard
Standards		UL Recognized (E14663), CSA Certified (LR4642)
