Motors
>
Pump Motors
>
Pool and Spa Pump Motors

CENTURY Pool Pump Motor, 2-1/2 HP, 3450 RPM, 230VAC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pool Pump Motor, PSC, Open Dripproof, 2-1/2 HP, 3450 Nameplate RPM, 56Y NEMA/IEC Frame, CCW Rotation, Voltage 230, 11.5 Full Load Amps, 1 Phase, 60 Hz, Flange Mounting, Ball Bearings, Black, Flange Material Aluminum, Shaft Threaded 1/2-20 UNF-2A RH, Shaft Material 303 Stainless Steel, Thermal Protection Auto, 1.04 Service Factor, Ambient Temperature 50 Degrees C, Shaft Dia. 5/8 In., Shaft Length 7/16 In., Insulation Class F, Efficiency Group Standard, Standards UL Recognized, CSA Certified

Grainger Item #	16U448
Price (ea.)	$594.00
Brand	CENTURY
Mfr. Model #	B2840
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	32.3
Availability	Typically in Stock
Catalog Page No.	51
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

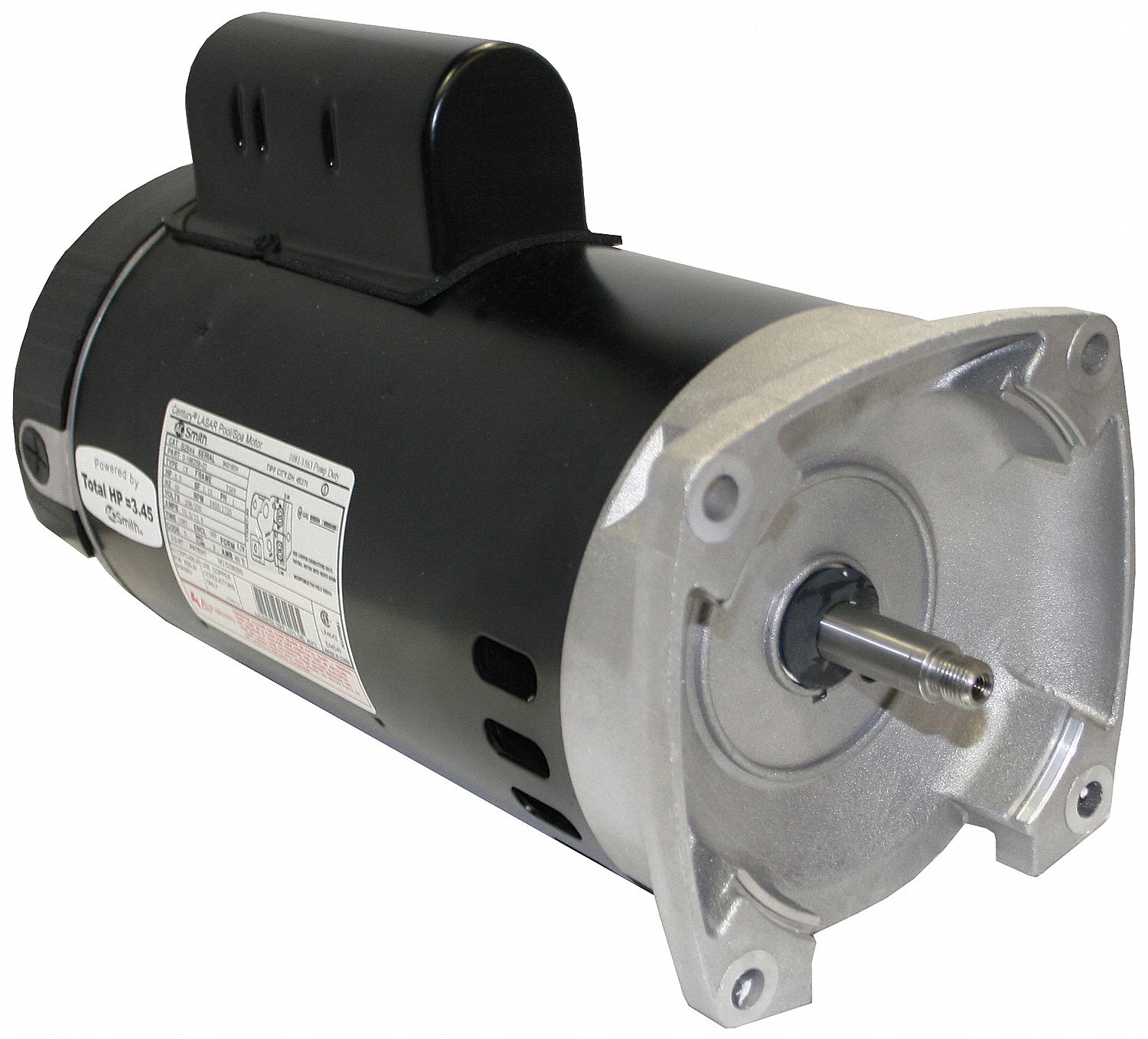

Pool Pump Motor, 2-1/2 HP, 3450 RPM, 230VAC

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pool Pump Motor
Motor Type		PSC
Enclosure		Open Dripproof
HP		2-1/2
Nameplate RPM		3450
NEMA/IEC Frame		56Y
Frame		56Y
Rotation		CCW
Voltage		230
Full Load Amps		11.5
Phase		1
Hz		60
Mounting		Flange
Bearings		Ball
Finish		Black
Flange Material		Aluminum
Shaft		Threaded 1/2-20 UNF-2A RH
Shaft Material		303 Stainless Steel
Thermal Protection		Auto
Service Factor		1.04
Ambient Temperature		50 Degrees C
Shaft Dia.		5/8"
Shaft Length		7/16"
Insulation Class		F
RPM Range		2350-3600
Efficiency Group		Standard
Standards		UL Recognized, CSA Certified
