Motors
>
Pump Motors
>
Pool and Spa Pump Motors

115VAC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pool Pump Motor, Capacitor-Start, Open Dripproof, 3/4 HP, 3450 Nameplate RPM, 56CZ NEMA/IEC Frame, CCW Rotation, Voltage 115/230, 12.8/6.4 Full Load Amps, 1 Phase, 60 Hz, Face Mounting, Ball Bearings, Black, Flange Material Aluminum, Shaft Threaded 1/2-20 UNF-2A RH, Shaft Material 303 Stainless Steel, Thermal Protection Auto, 1.50 Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 5/8 In., Shaft Length 3-3/4 In., Insulation Class B, Efficiency Group Standard

Grainger Item #	16U419
Price (ea.)	$363.75
Brand	CENTURY
Mfr. Model #	B625
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	24.6
Availability	Typically in Stock
Catalog Page No.	49
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

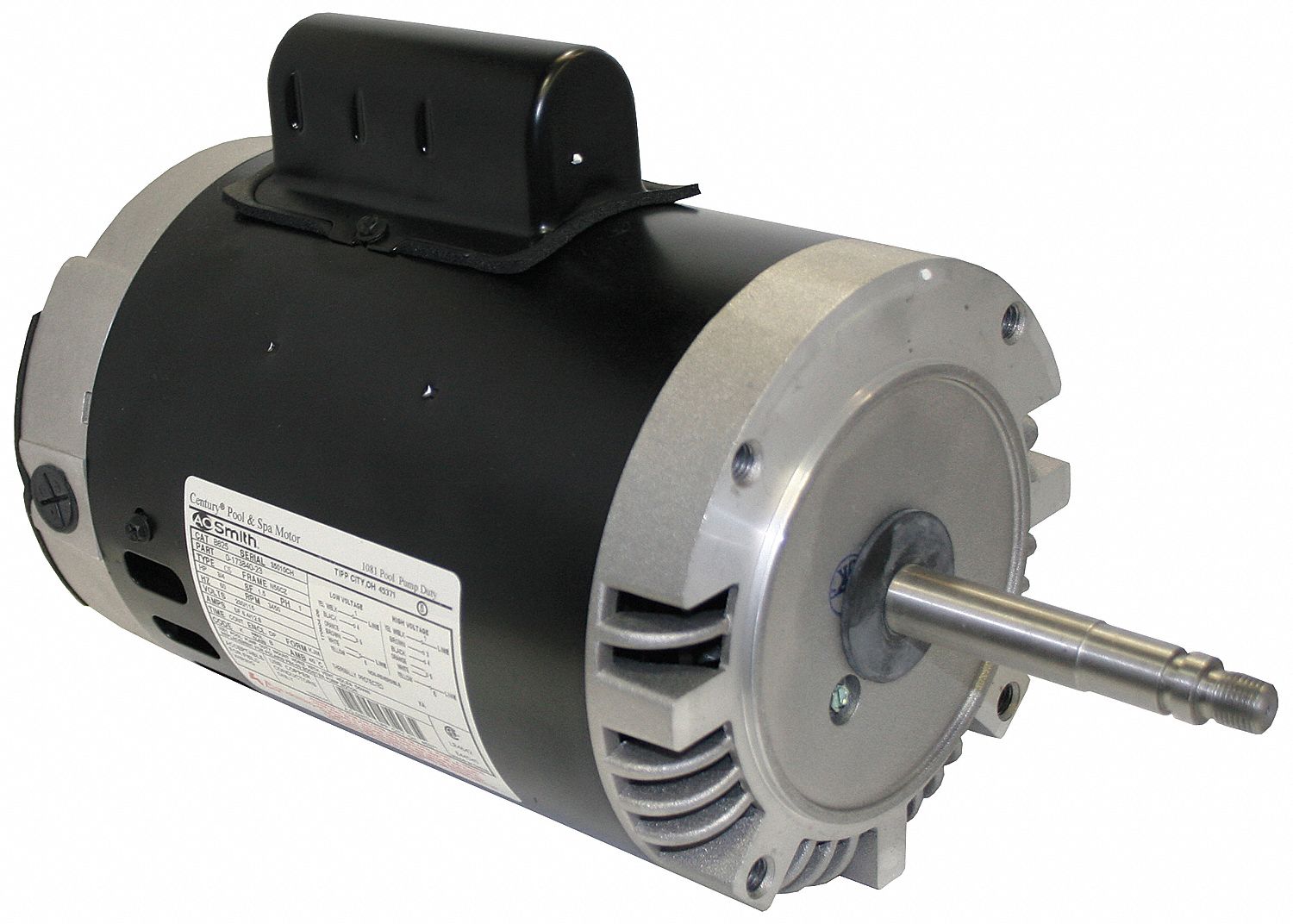

Pool Motor, 3/4 HP, 3450 RPM, 230/115VAC

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pool Pump Motor
Motor Type		Capacitor-Start
Enclosure		Open Dripproof
HP		3/4
Nameplate RPM		3450
NEMA/IEC Frame		56CZ
Frame		56CZ
Rotation		CCW
Voltage		115/230
Full Load Amps		12.8/6.4
Phase		1
Hz		60
Mounting		Face
Bearings		Ball
Finish		Black
Flange Material		Aluminum
Shaft		Threaded 1/2-20 UNF-2A RH
Shaft Material		303 Stainless Steel
Thermal Protection		Auto
Service Factor		1.50
Ambient Temperature		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		3-3/4"
Insulation Class		B
RPM Range		2350-3600
Efficiency Group		Standard
Standards		UL Recognized, CSA Certified
