Motors
>
HVAC Motors
>
Oil Burner Motors

CENTURY Oil Burner Motor, 1/3 HP, 1725, 115 V, 48N

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Oil Burner Motor, Split-Phase, Totally Enclosed, 1/3 HP, Nameplate RPM 1725, 48N Frame, Voltage 115, 60 Hz, 1 Phase, Full Load Amps 4.3, Flange Mounting, Manual Thermal Protection, Insulation Class B, Service Factor 1.0, Sleeve Bearings, Ambient Temperature 40 Degrees C, Rotation CW/CCW, Shaft Dia. 1/2 In., Shaft Length 1-7/8 In., Flange Material Aluminum, Flange Type Ventilated, 1400-1800, UL Recognized (E46412/E25022), CSA Certified (LR43341)

Grainger Item #	4MA20
Price (ea.)	$166.75
Brand	CENTURY
Mfr. Model #	OL2034
UNSPSC #	26101611
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	13.0
Availability	Typically in Stock
Catalog Page No.	78
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

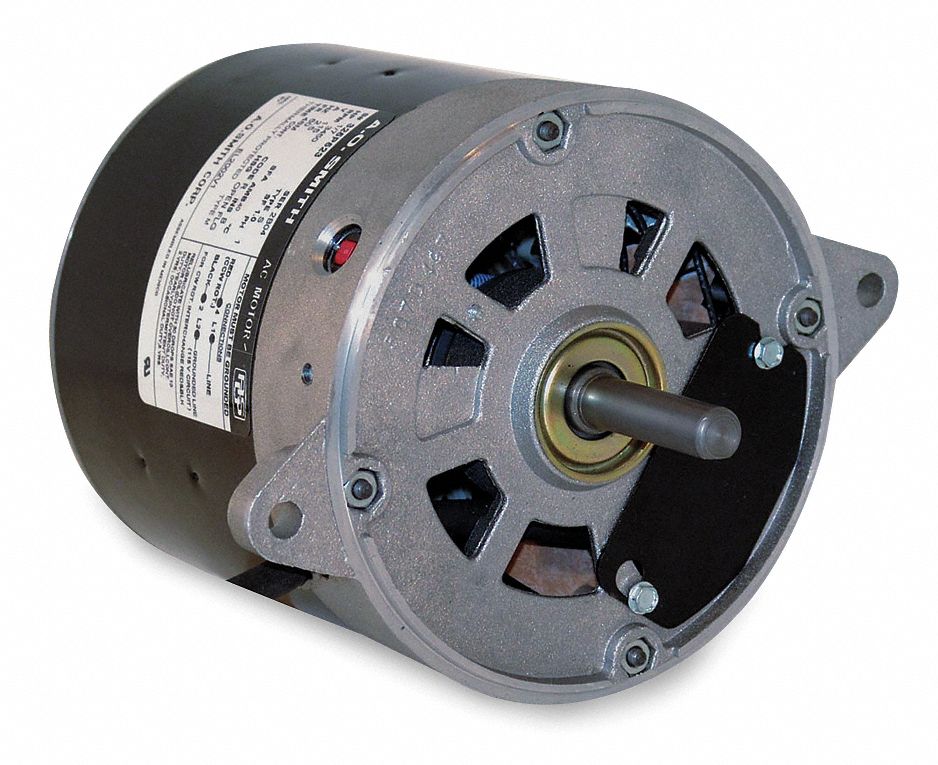

Oil Burner Motor, 1/3 HP, 1725, 115 V, 48N

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Oil Burner Motor
Motor Type		Split-Phase
Enclosure		Totally Enclosed
HP		1/3
Nameplate RPM		1725
NEMA/IEC Frame		48N
Frame		48N
Voltage		115
Hz		60
Phase		1
Full Load Amps		4.3
Mounting		Flange
Thermal Protection		Manual
Insulation Class		B
Service Factor		1.0
Bearings		Sleeve
Ambient Temperature		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		1/2"
Shaft Length		1-7/8"
Flange Material		Aluminum
Flange Type		Ventilated
RPM Range		1400-1800
Standards		UL Recognized (E46412/E25022), CSA Certified (LR43341)
